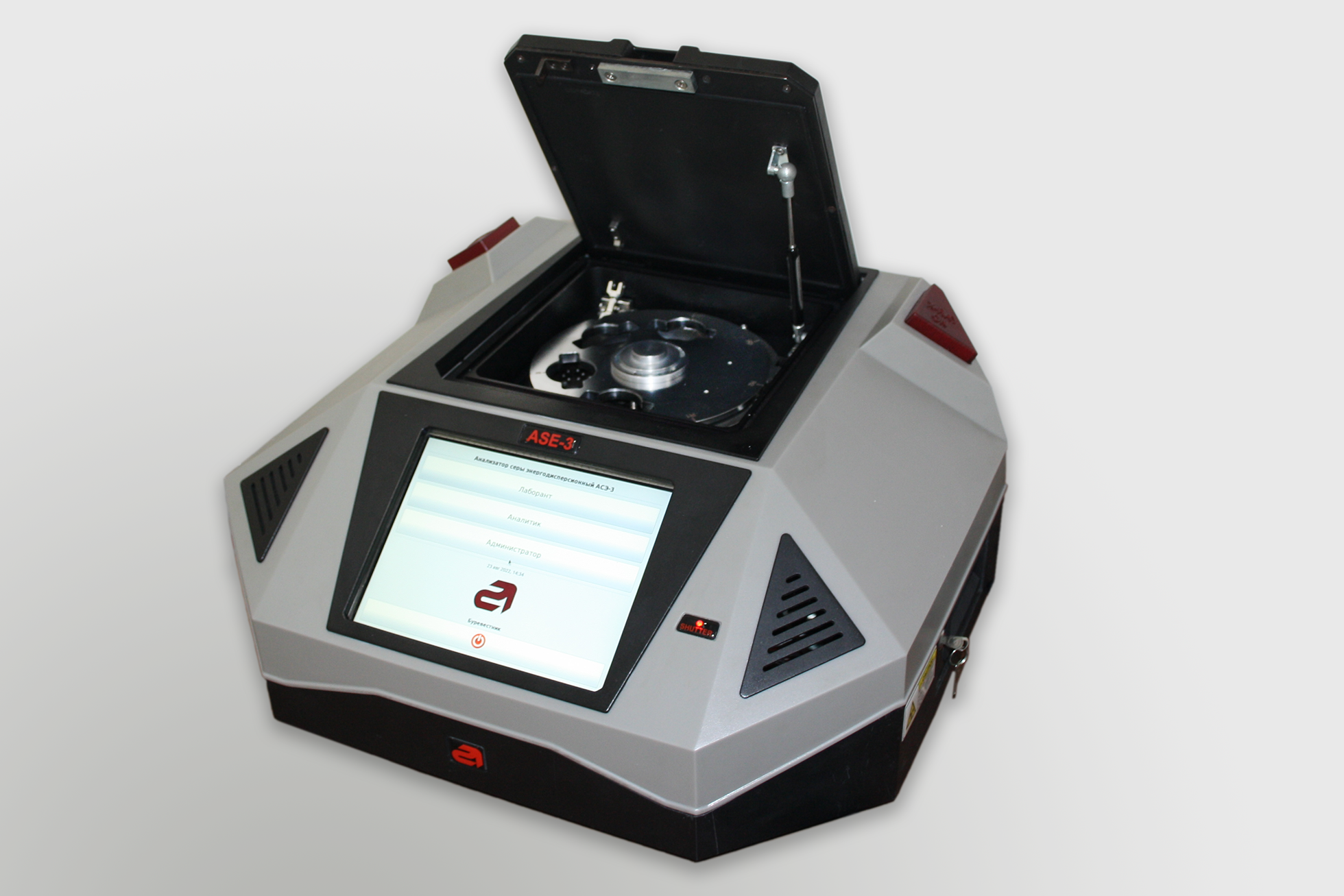

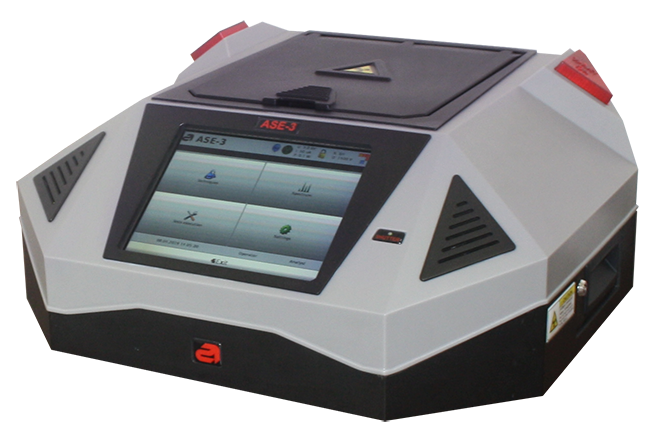

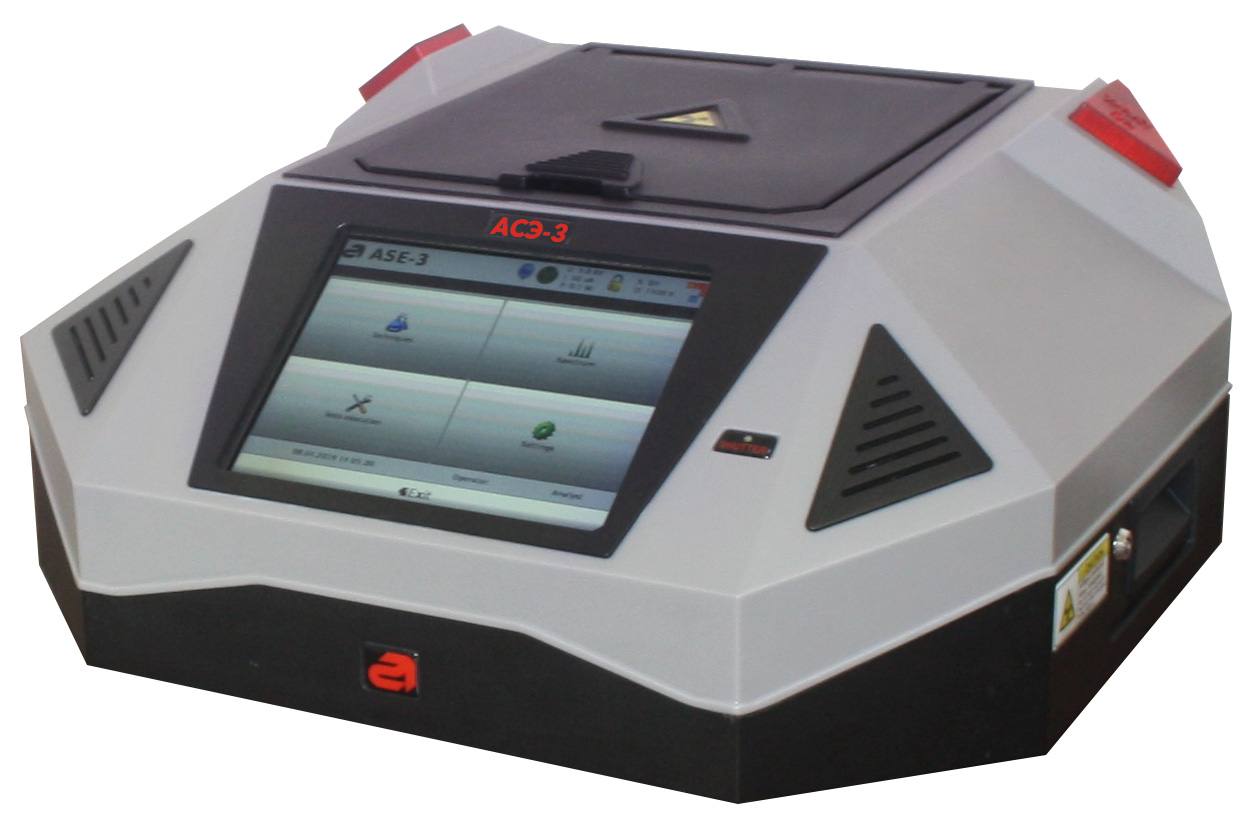

X-ray fluorescent energy dispersive sulfur analyzer ASE-3

is suitable for analyzing of gasoline (unleaded), diesel, crude oil, kerosene, petroleum residue, lubricating oil, hydraulic oil, jet fuel and other petroleum distillate in accordance with АSТМ D 4294, АSТМ D 6445, EN ISO 20847.

Measurement time from 1 to 8 minutes;

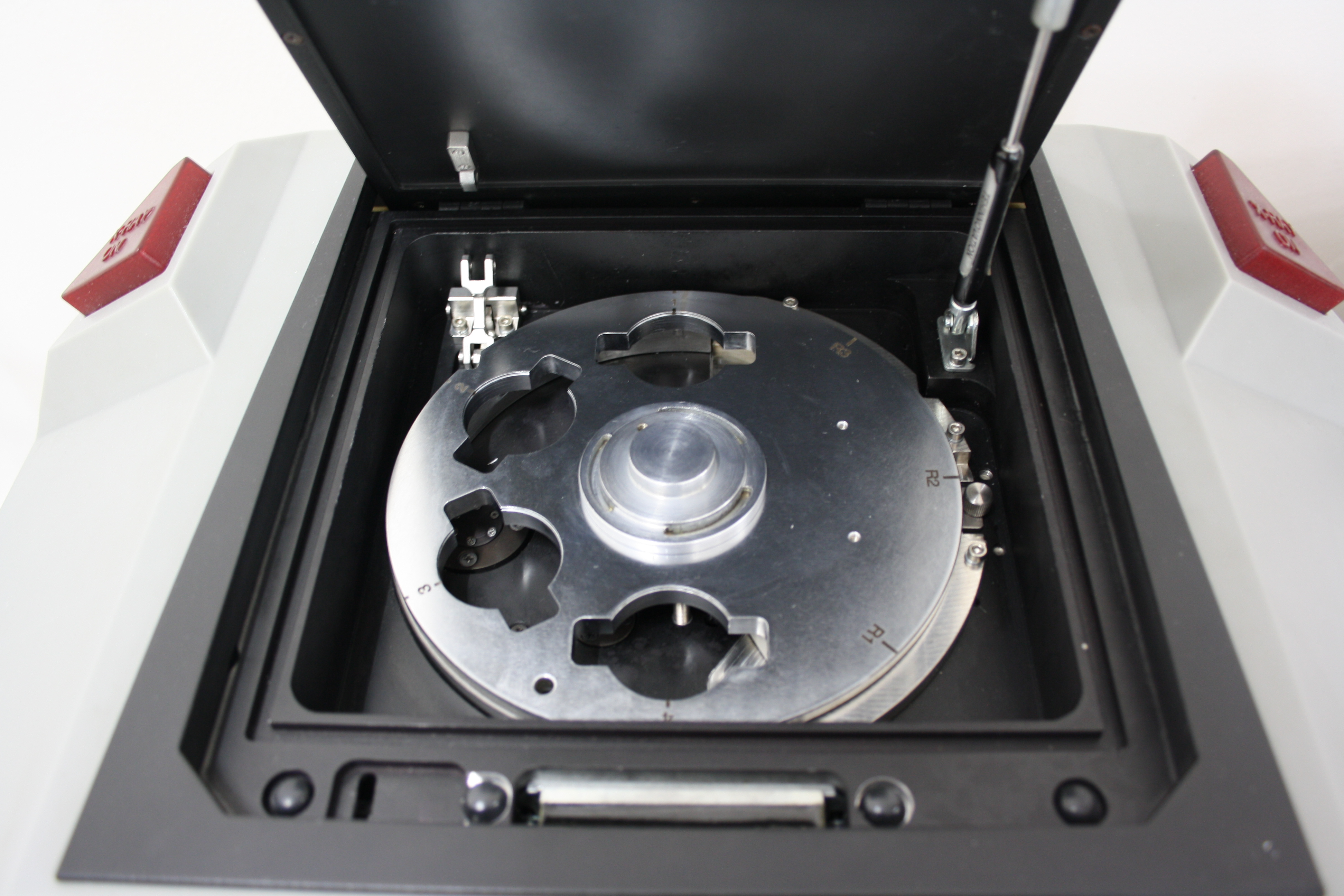

Sampling disk for 4 samples with the possibility of alternate measurement of parallel samples;
Automatic hardware drift compensation by reference sample and accuracy control by standard sample in one measurement cycle;
Connection to PC, data transfer to LIMS;
Touchscreen display;
The analysis of samples is carried out in an air environment, the option of helium purging is available to increase sensitivity;
Cooling of the X-ray tube is air-cooled;
Exempt from radiation control (no license is required to work with ionizing radiation sources).

Specifications

Range of sulfur determination, mg/kg	5 to 50 000
Statistic limit of detection at 600 sec, mg/kg	3,0
The limit of the permissible basic relative error of the analyzer in the mode of measuring the counting speed on the control sample of the Mo (No. 196), %	0,5
Power supply	230 ± 23 В, 50 ± 1 Гц
Protection against ingress of solid objects (including the protect people from contact with dangerous parts products) and water as per IEC 60529	IP20
Power consumption, max	100 V×А
Overall dimensions (LхWхH), mm	455×490×215
Weight, kg	20
The time of measurement samples, min	from 1 to 8
Continuous operation time, hours	not less than 17
Mean operating time to failure, hours	15 000
Full average life, years	>8

Process diagram

Options

Measuring cell SC-2135

Set of CRM of sulfur in mineral oil for ASE-2/ASE-3

Thermal paper for printer ASW-2/ASW-3

X-ray transparent film (MYLar) 3 mkm

Measuring cell SC-2135

Reusable ventilated measuring cell SC-2135.

Designed for X-ray fluorescence analysis of liquid and powder samples.

Material: polyethylene

Outer diameter: 34±1 mm

Inner diameter: 28±1 mm

Height: 30±1 mm

Set of CRM of sulfur in mineral oil for ASE-2/ASE-3

State standard samples (SSO) of mass fraction of sulfur in mineral oil (18 pcs. 100ml each):
0,000%; 0,0005 %; 0,0010 %; 0,0025%; 0,005%; 0,010%; 0,030%; 0,060; 0,1%; 0,2%; 0,5%; 1%; 1,5%; 2%; 2,5%; 3%; 4%; 5%.

Thermal paper for printer ASW-2/ASW-3

Thermal paper for printing analysis results in the form of measurement protocol;
For built-in and external printers to the devices ASE-2, ASE-3.

X-ray transparent film (MYLar) 3 mkm

Transparent PET film with a thickness of 3 microns for SC-2135 measuring cells. Designed for liquid and bulk samples.
