Automatic diamond sorting machine ASA-2F

Automatic diamond sorting machine ASA-2F

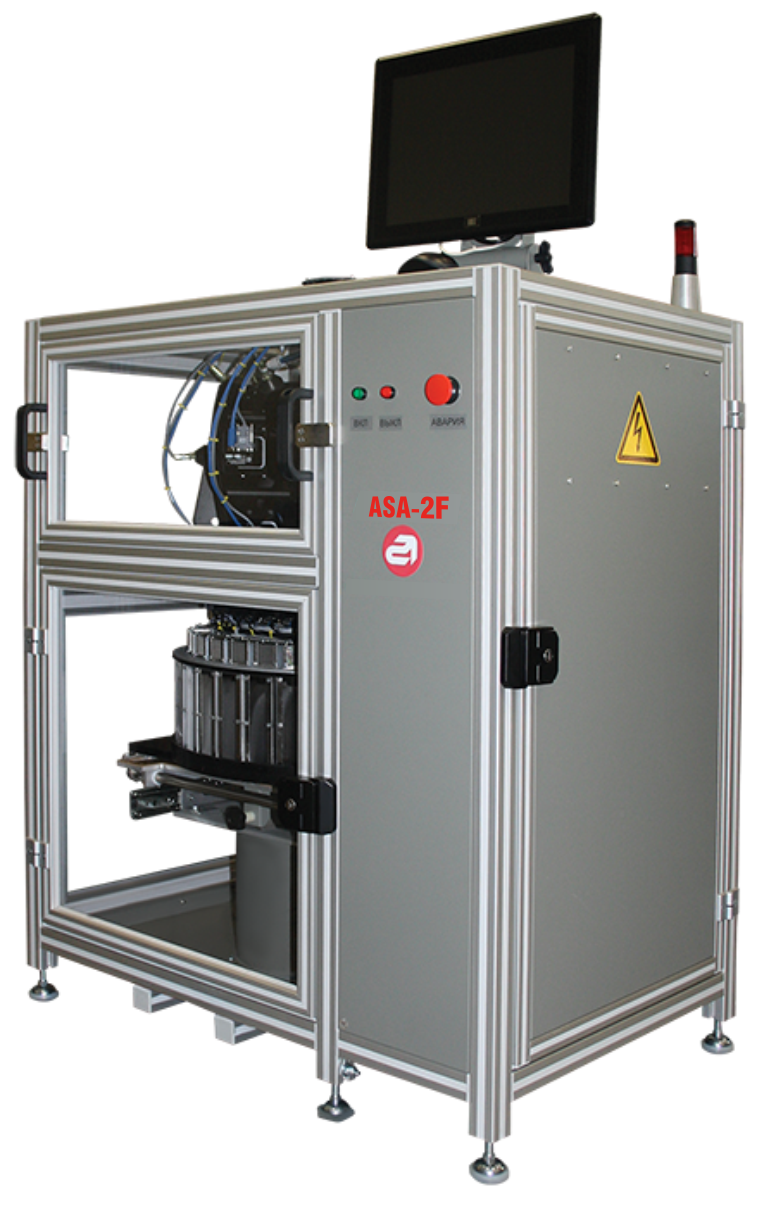

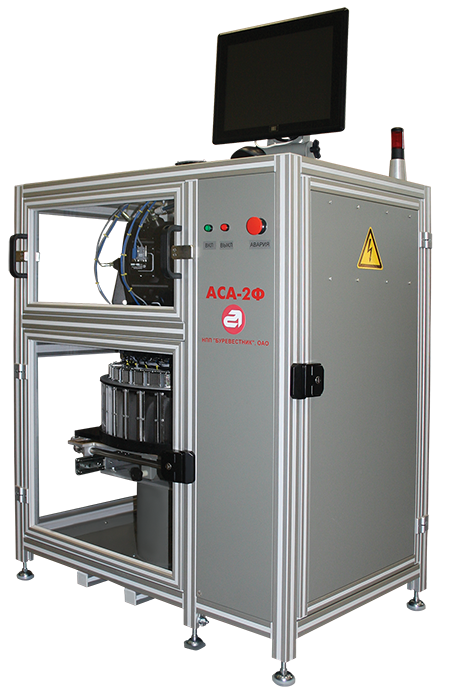

Diamond sorting machine ASA-2F is designed for sorting diamonds of -4.5 +1.8 mm in size into 10 classified positions.

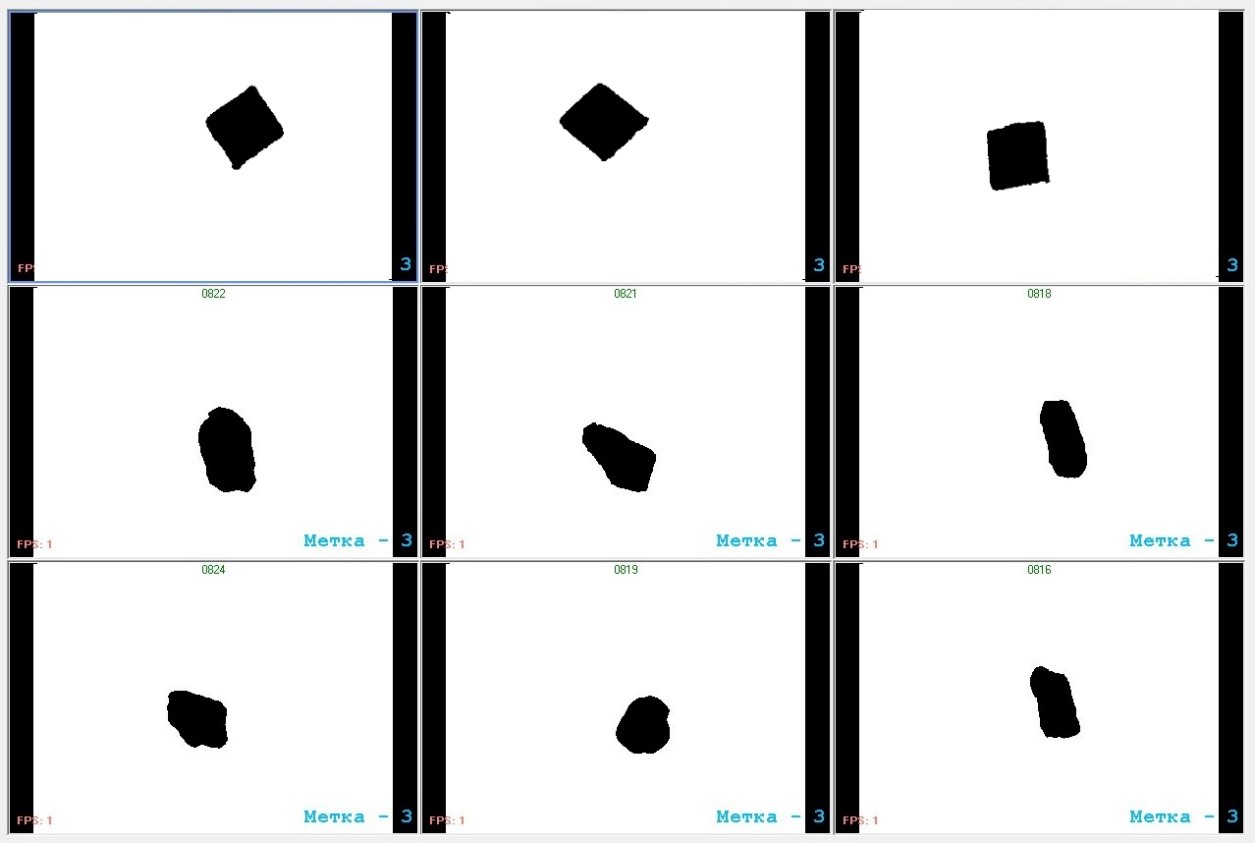

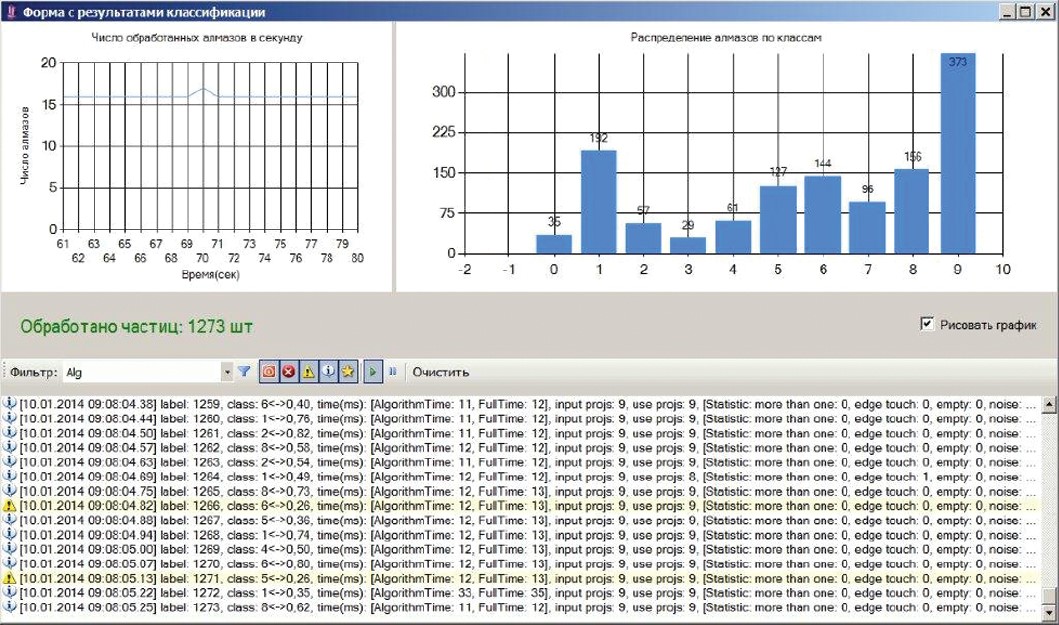

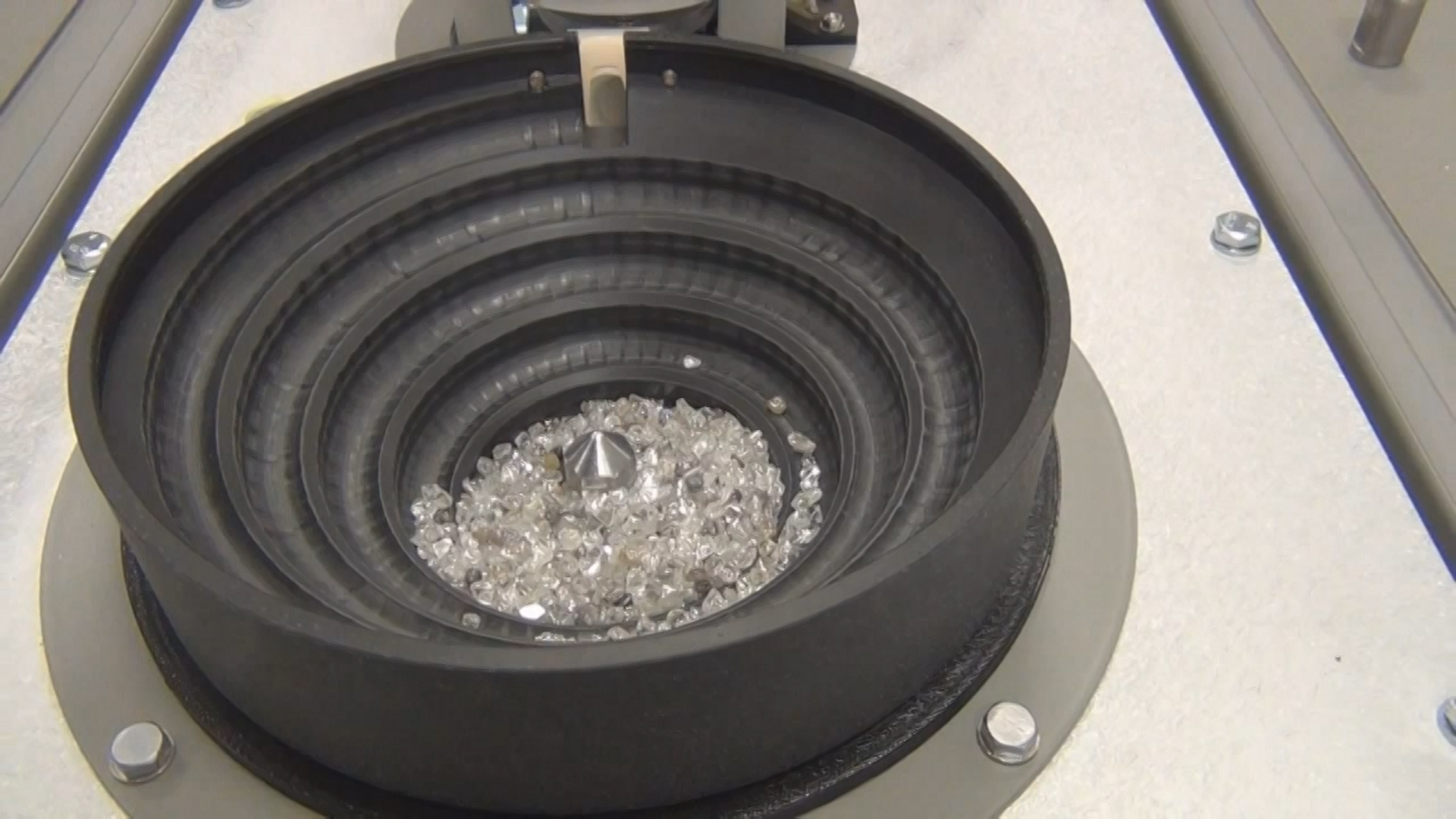

Principle of operation: Diamond crystals are fed one by one into the registration zone by means of a vacuum disk. Nine video cameras transmit nine projections of the diamond to the computer. The classifier program creates a model of the diamond crystal and determines its class. The diamond is placed in the cell of the receiving drum, from where, at the command of the executive module, it is cut off into a piggy bank corresponding to the class number.

Specifications

Coarseness class, mm	-4.5+1.8
Size variation for each fraction, mm	0.3
Average throughput, particles per second	5
Number of cells for diamond sorting: - classified items - unclassified items	12 (the actual number is determined by the classifier) 1
Composition of each sorted item: - main position, not less than, % - diamonds not related to this item, not more than, %	90 10
The probability of mechanical separation of diamonds into the corresponding piggy bank according to the signal from the registration system is at least as follows, %	99
Compressed air consumption, l/min	no more than 200
Overall dimensions (DxWxH), mm	1200 × 900 × 1500
Weight, kg	250
Power consumption, VA (single-phase network, 220V/50Hz)	1000

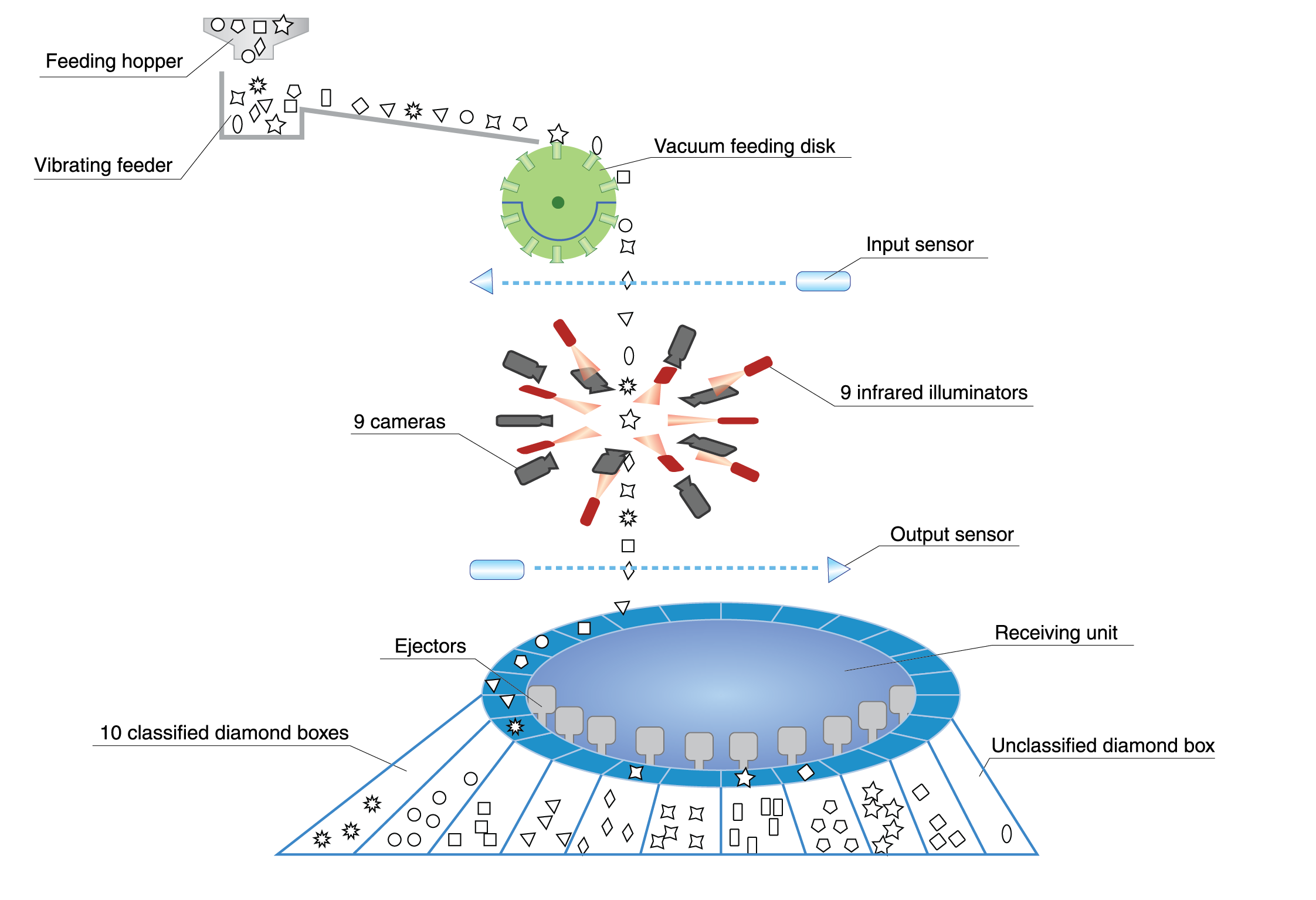

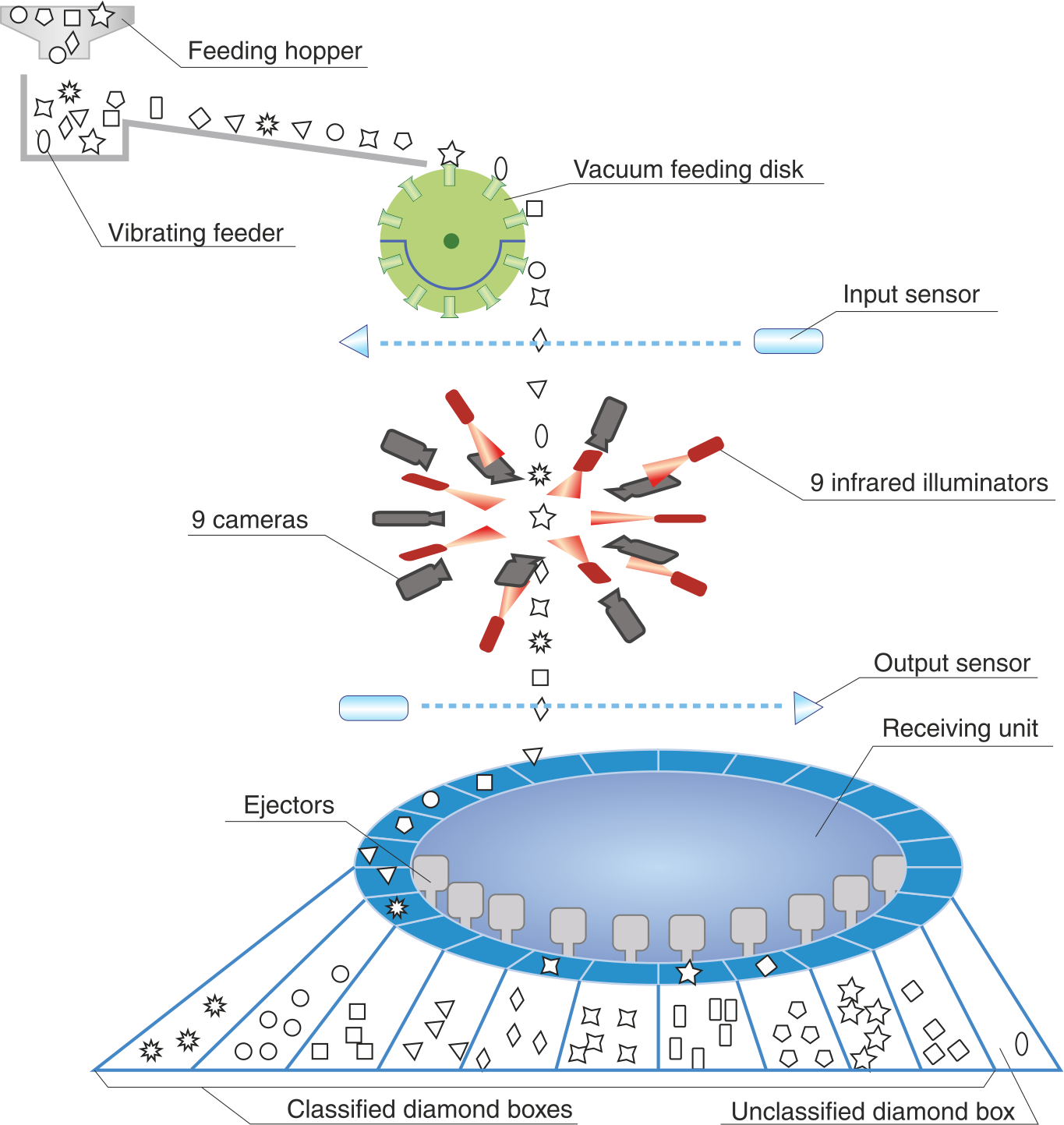

Process diagram

Drawings

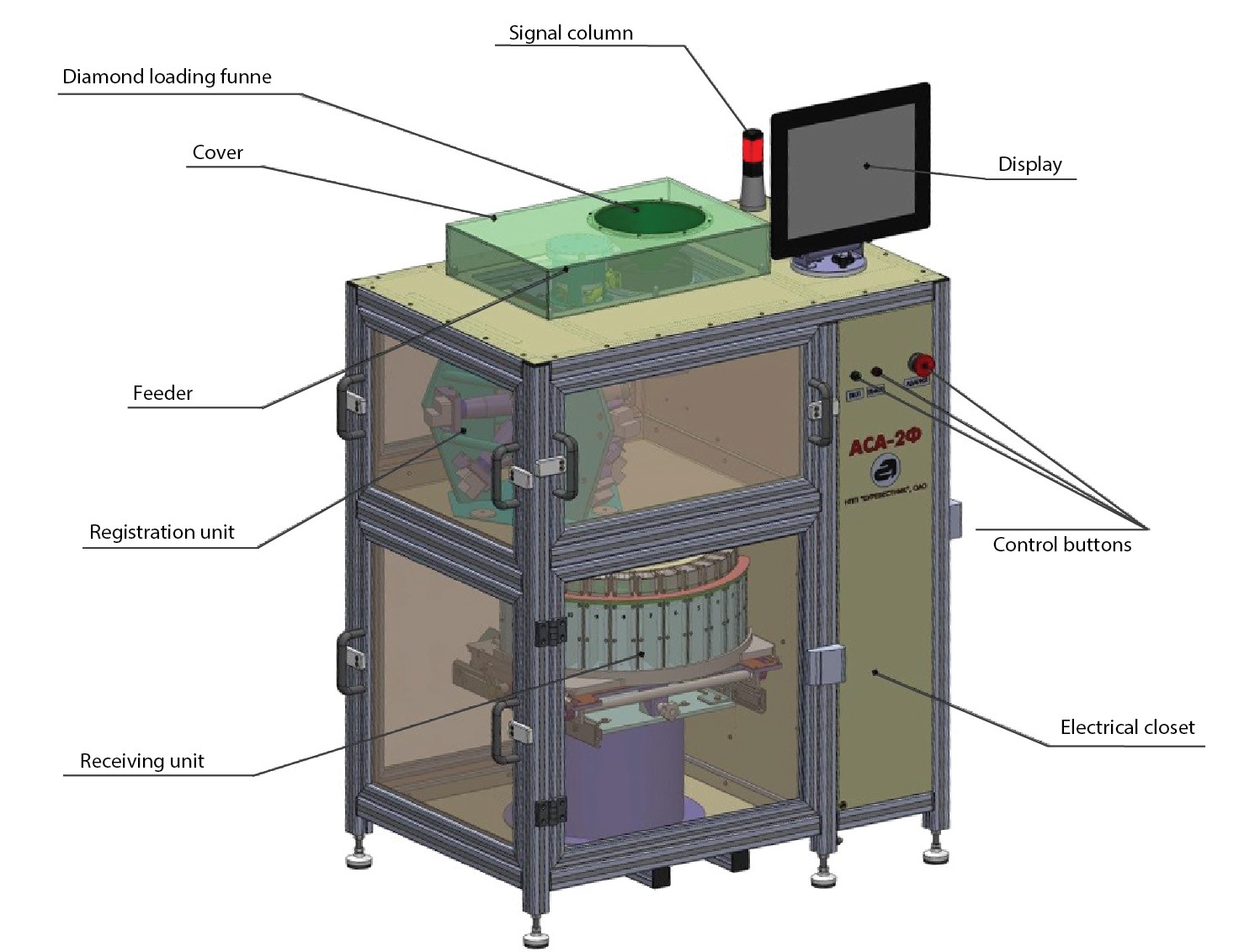

Main assemblies of the diamond sorting machine
