X-ray transmission sorter RGS-OD-5А

X-ray transmission sorter RGS-OD-5А

X-ray transmission (XRT) sorter RGS-OD-5A is designed for final finishing of dry or damp concentrate of various ores of -50 +10 mm in size by X-ray absorption separation method.

The technology of X-ray absorption systems is penetrating and allows to determine pieces with hidden ore minerals and inclusions. It does not require special preparation of the material for sorting (washing, surface cleaning), is widely used in the mining industry and is one of the most popular types of sorting systems today.

X-ray sorter RGS-OD-5A is used for enrichment of non-diamond mineral raw materials, including enrichment of: gold and silver-containing, apatite, copper-zinc, tin, tungsten, lead, magnesite, chromium, platinum, mercury and other ores of industrial and semi-industrial types of deposits, as well as for sorting of metallurgical slags.

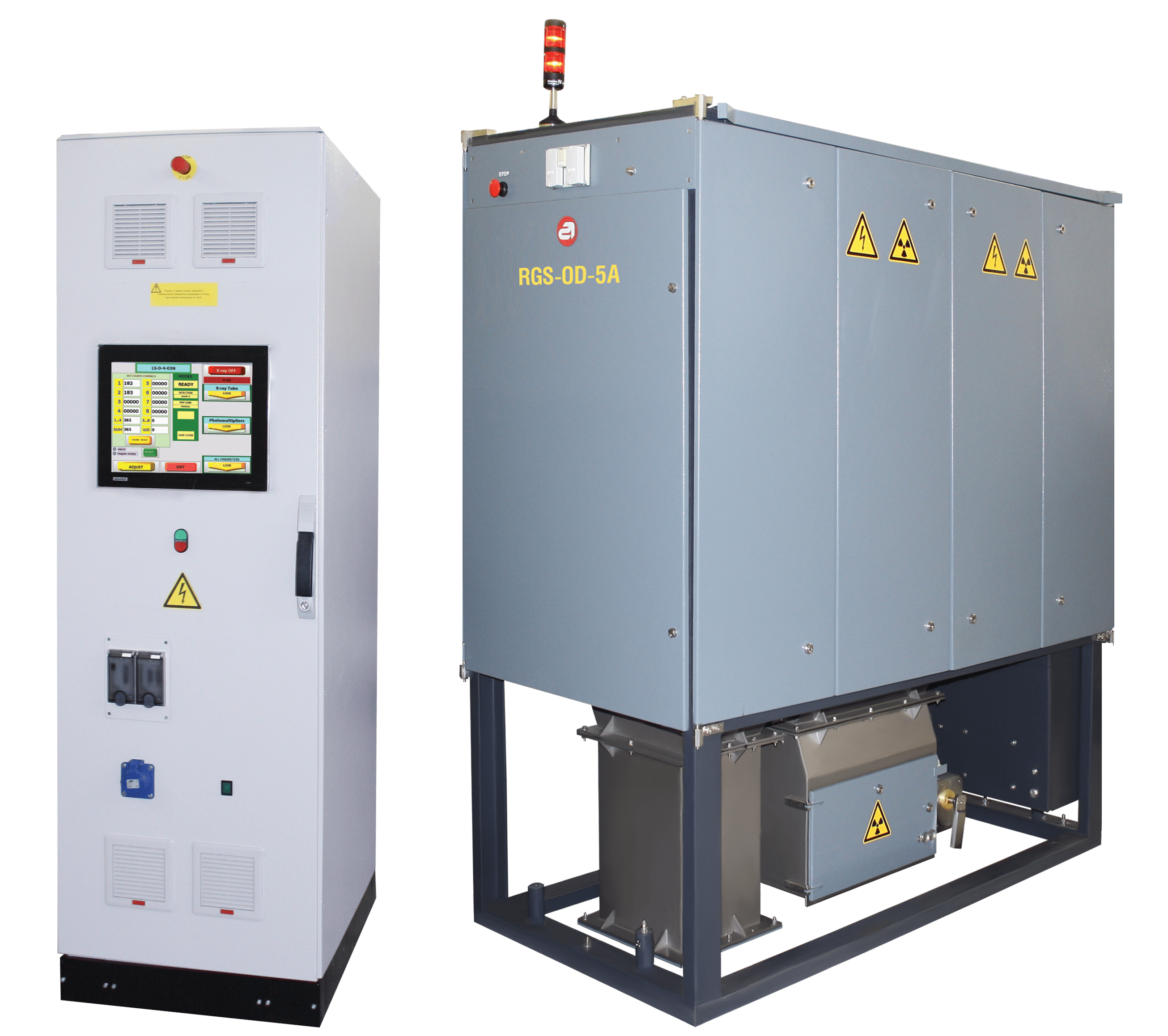

The sorter consists of a sorting machine (SM) and automatic control rack (ACR).

*Preliminary information

Specifications

Main specification
Size fraction, mm	-50 +30	-30 +20	-20 +15	-15 +10
Throughput, t/h	2500	2000	500	300
Output per 10 cutoffs, grains	15	16	18	20
Type of material	dry or damp

Material feeding and detection system
Material feed	vibrating feeder
Transportation channel	2
X-ray tube	1
Detector	1
Multi-channel pneumatic ejector system with local or group ejection

Sorters supply
Electric power, kVA (1-phase network, 220V, 50Hz)	6
Technical water consumption, l/min	30
Drinking water flow rate, l/min	6
Compressed air consumption for one shut-off, l	5
Compressed air consumption at rated capacity, l/min	30

Dimensions and mass
	Dimensions, mm	Mass, kg
Sorting machine	2000 х 930 х 2135	1100
Automatic control rack	881 х 603 х 1952	200

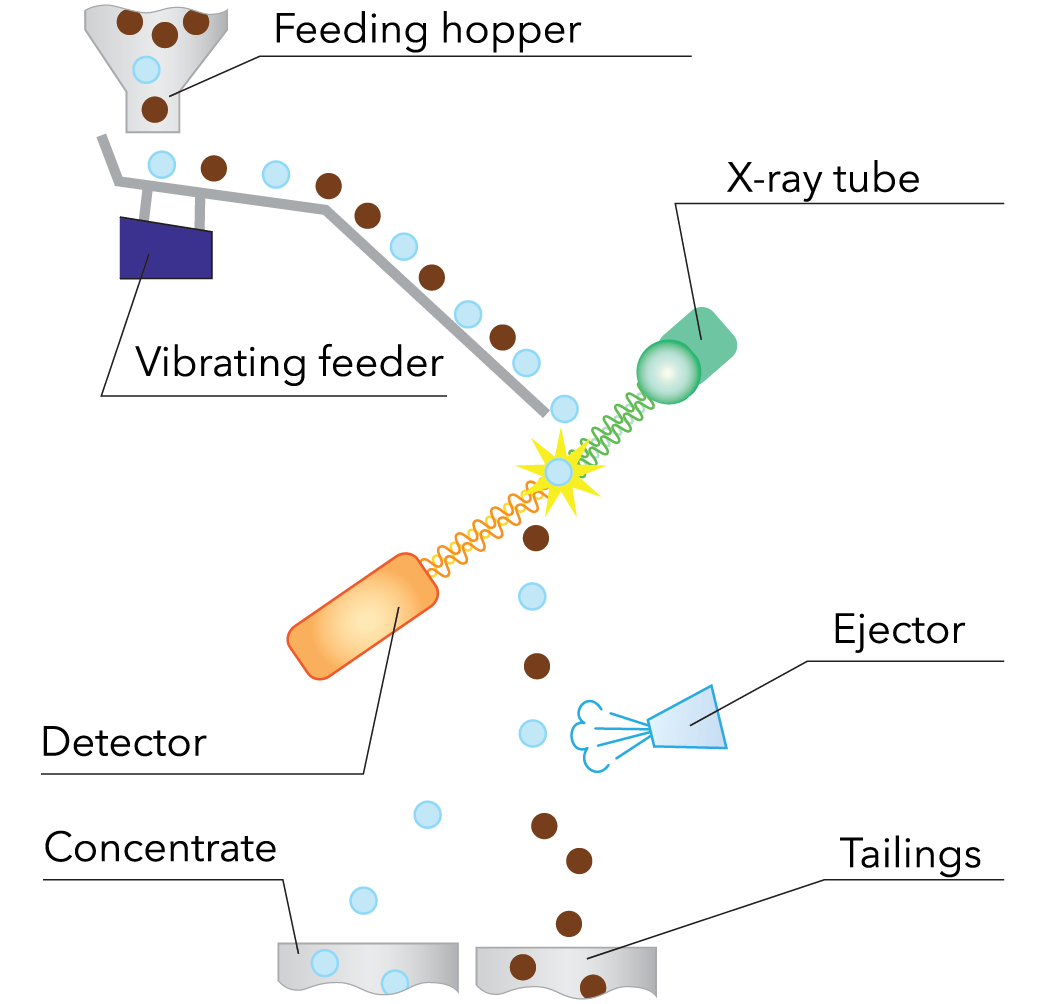

Process diagram

Options

Containerized version

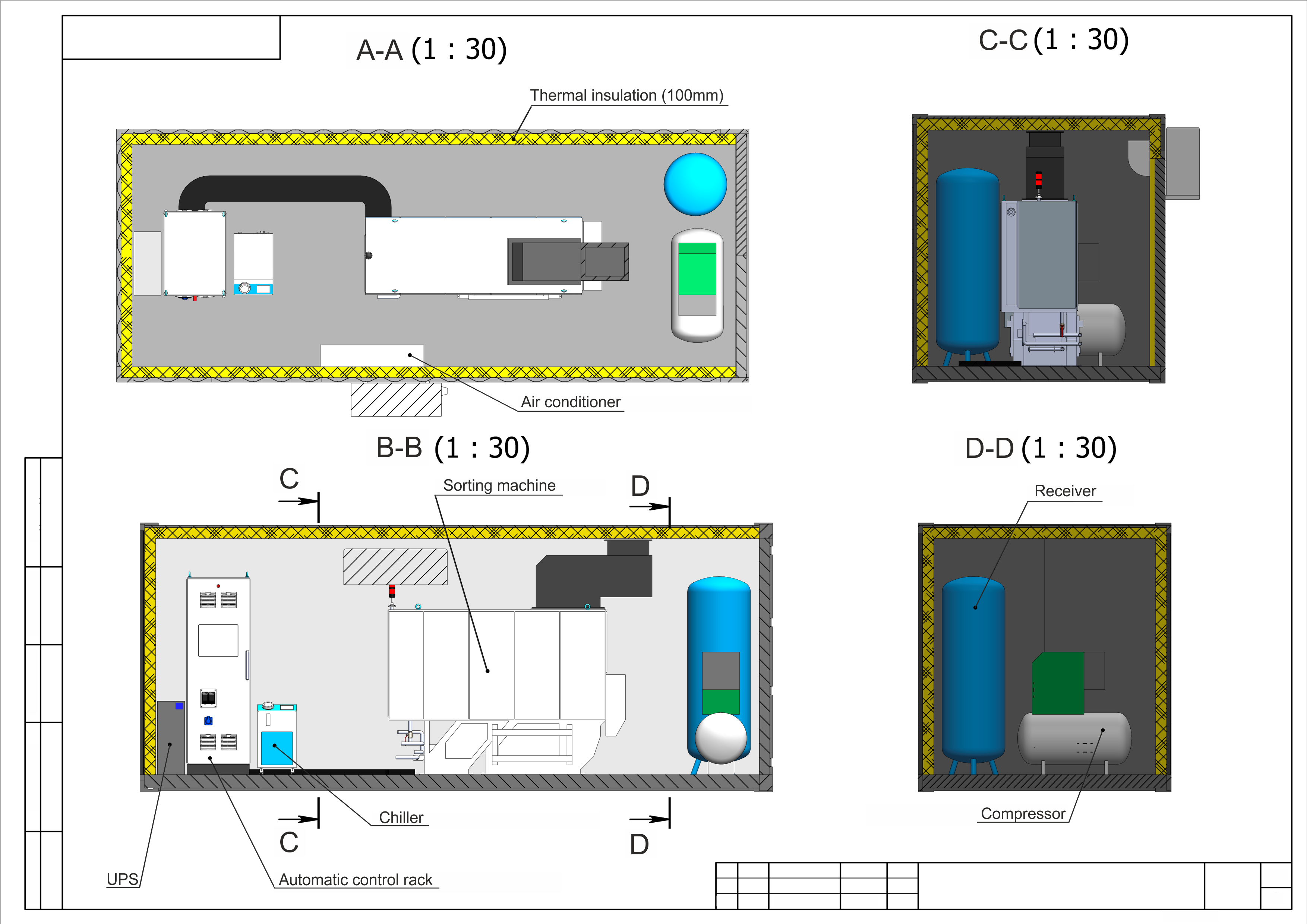

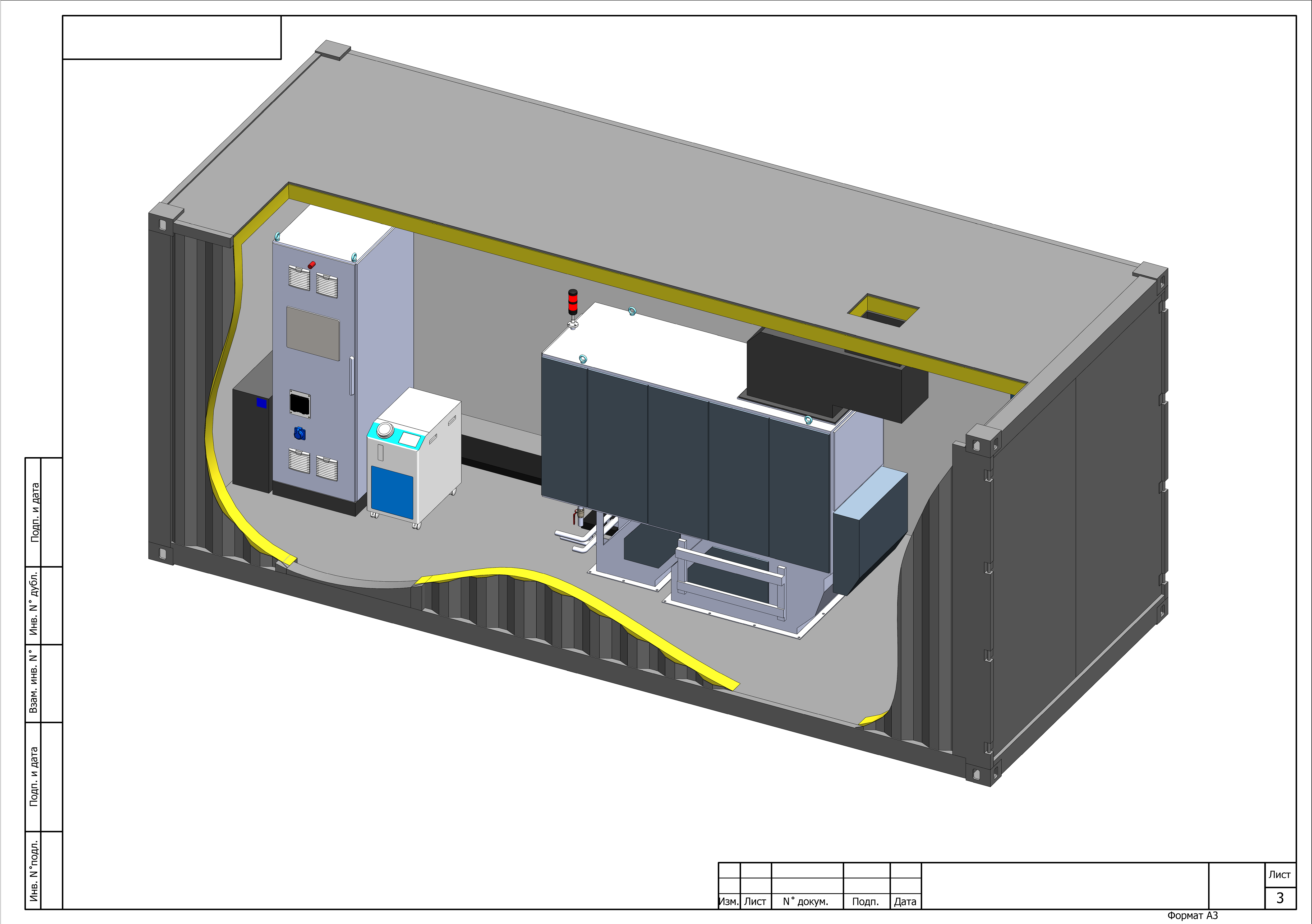

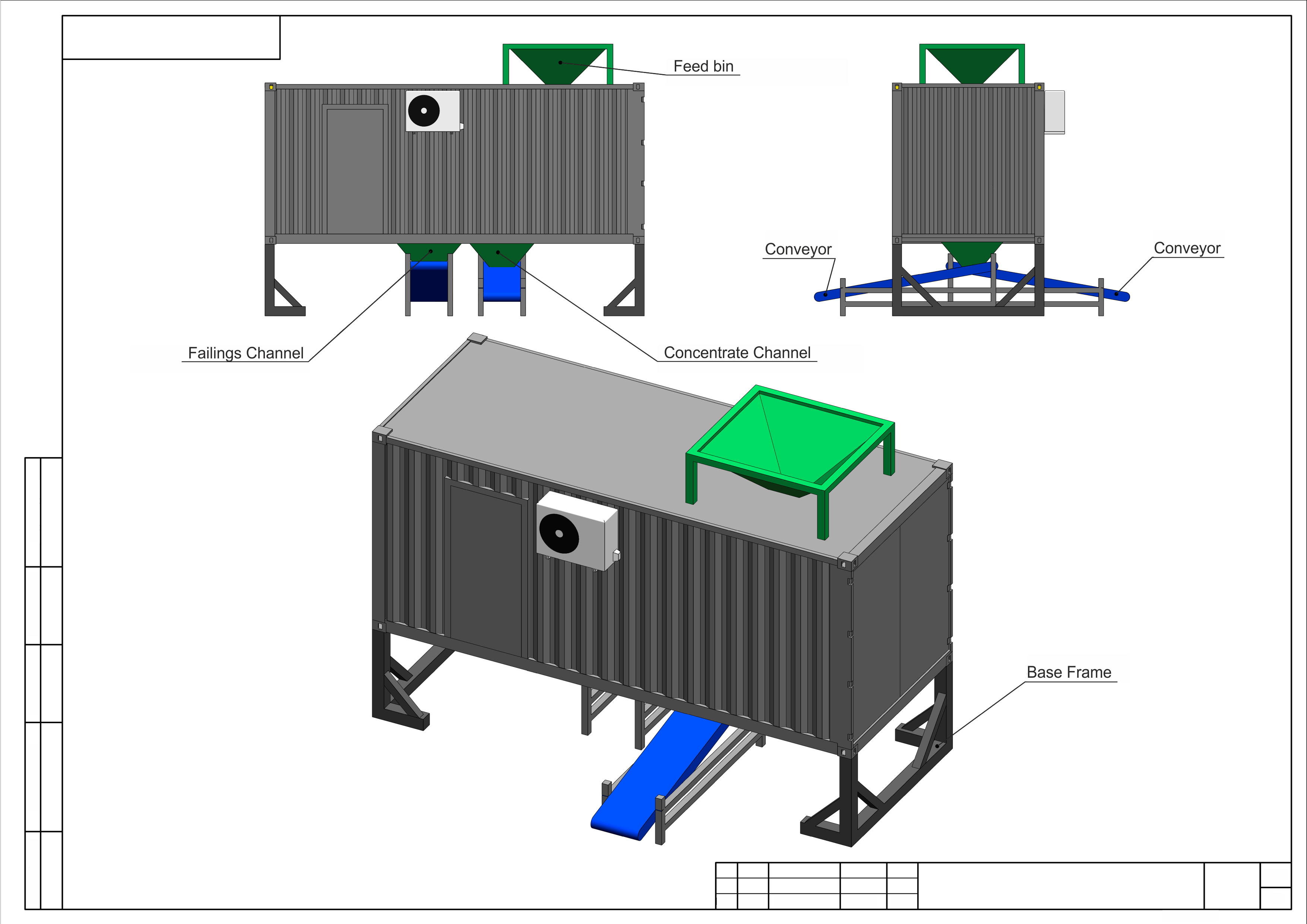

Upon additional request, Burevestnik Innovation Center supplies a separator and complex peripheral equipment as part of a container unit.

Container plant is a mobile building in metal version, container type, without running gear for operation outdoors at any time of the year and day and for permanent presence of people.

Composition of the installation:
- all-welded metal housing;
- power supply system;
- microclimate maintenance system;
- fire alarm system and automatic fire extinguishing system;
- lighting system;
- water cooling system;
- air supply system;
- ore feed hopper
