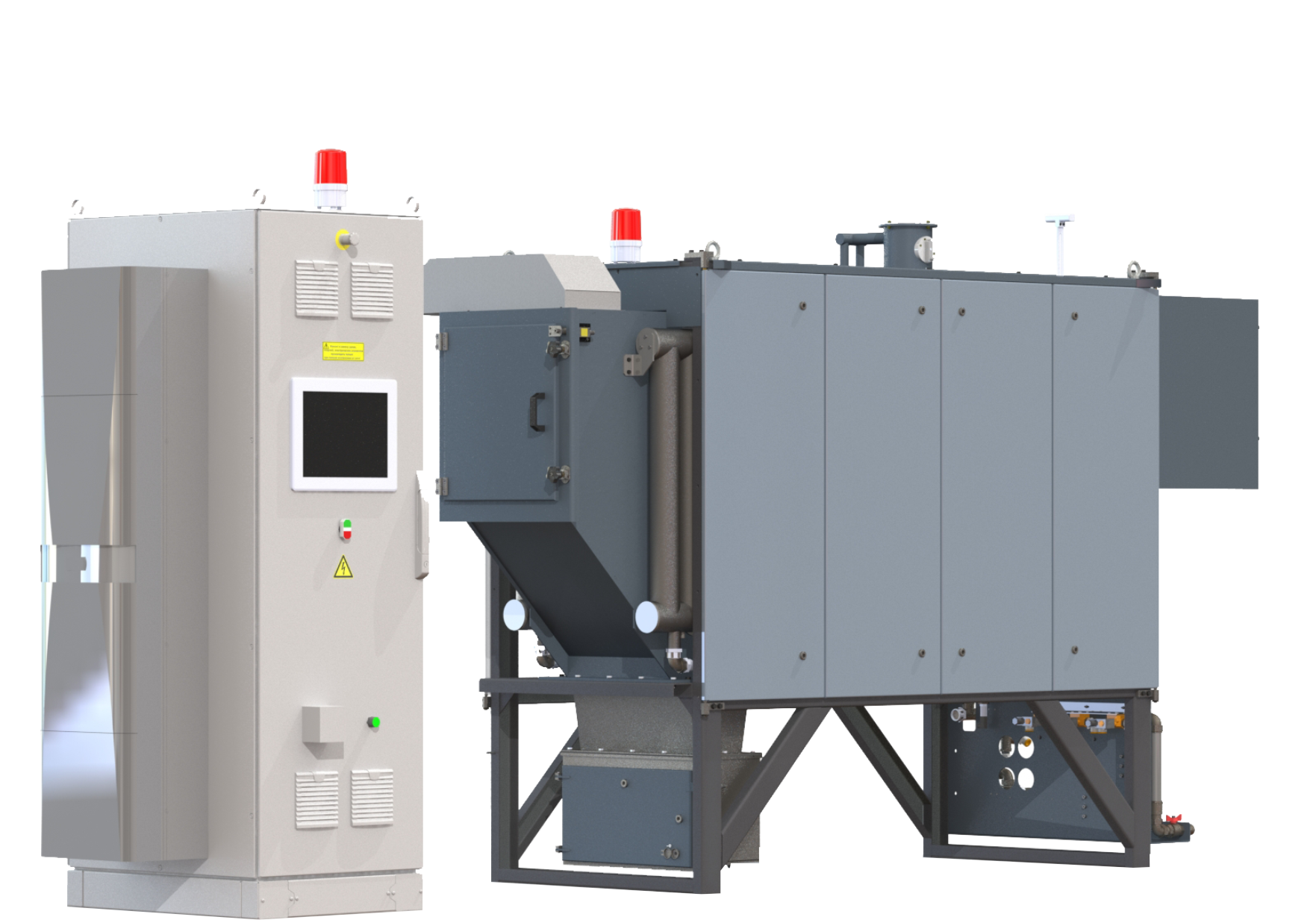

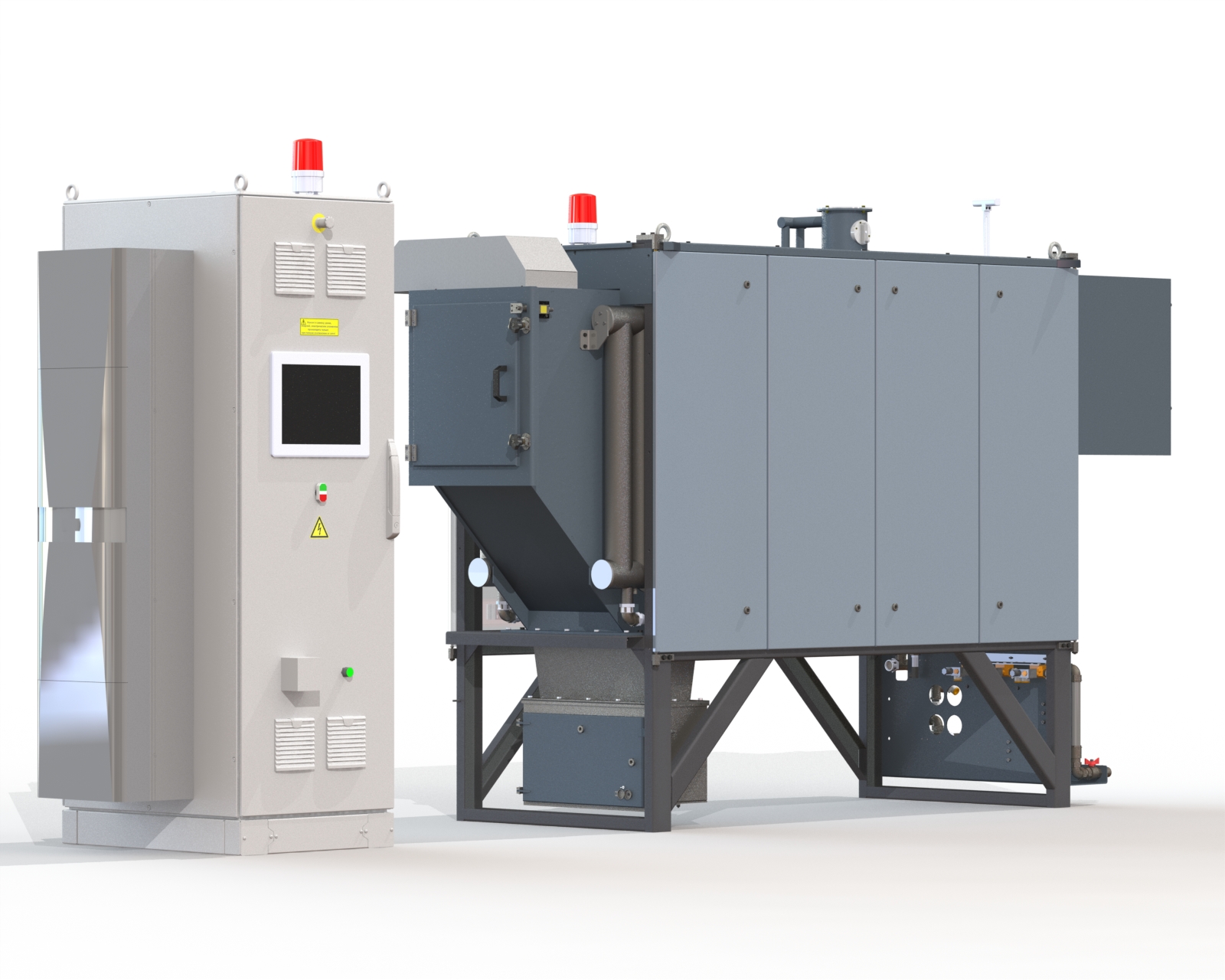

X-ray transmission sorter RGS-3

X-ray transmission sorter RGS-3 is a diamond recovery machine designed for concentrate treatment of dry material with size range -6 +1 mm.


The principle of the sorter's operation is based on the property of materials to absorb X-rays. Diamond, consisting of the light element carbon with atomic number 6, absorbs X-rays less than the accompanying minerals containing heavier elements: silicon, calcium, magnesium, oxygen, iron and others.


The sorter consists of a sorting machine and an automatic control rack.

Specifications

Main specification

Size fraction, mm -6 +3 -3 +1
Throughput, kg/h 600 400
Yield per 1 ejection, mg 400 200
Recovery rate, % 99 98,5
Type of material dry


Material feeding and detection system

Material feed vibrating feeder and conveyor belt
Material flow channel 2
X-ray tube 2
X-ray sensor 2
3D-camera & laser sensor 2


Sorter’s supply

Power consumption, kVA (single phase, 220V/50Hz)
10
Cooling water consumption, not less than, l/min
12
Consumption of compressed air per 1 ejection, l
0,0135 / 0,05


Dimensions and mass


Dimensions, mm
Mass, kg
Sorting machine (SM) 2100 х 900 х 1800
900
Automatic control rack (ACR) 1120 х 860 х 1800
340
The operating parameters of the equipment are preliminary

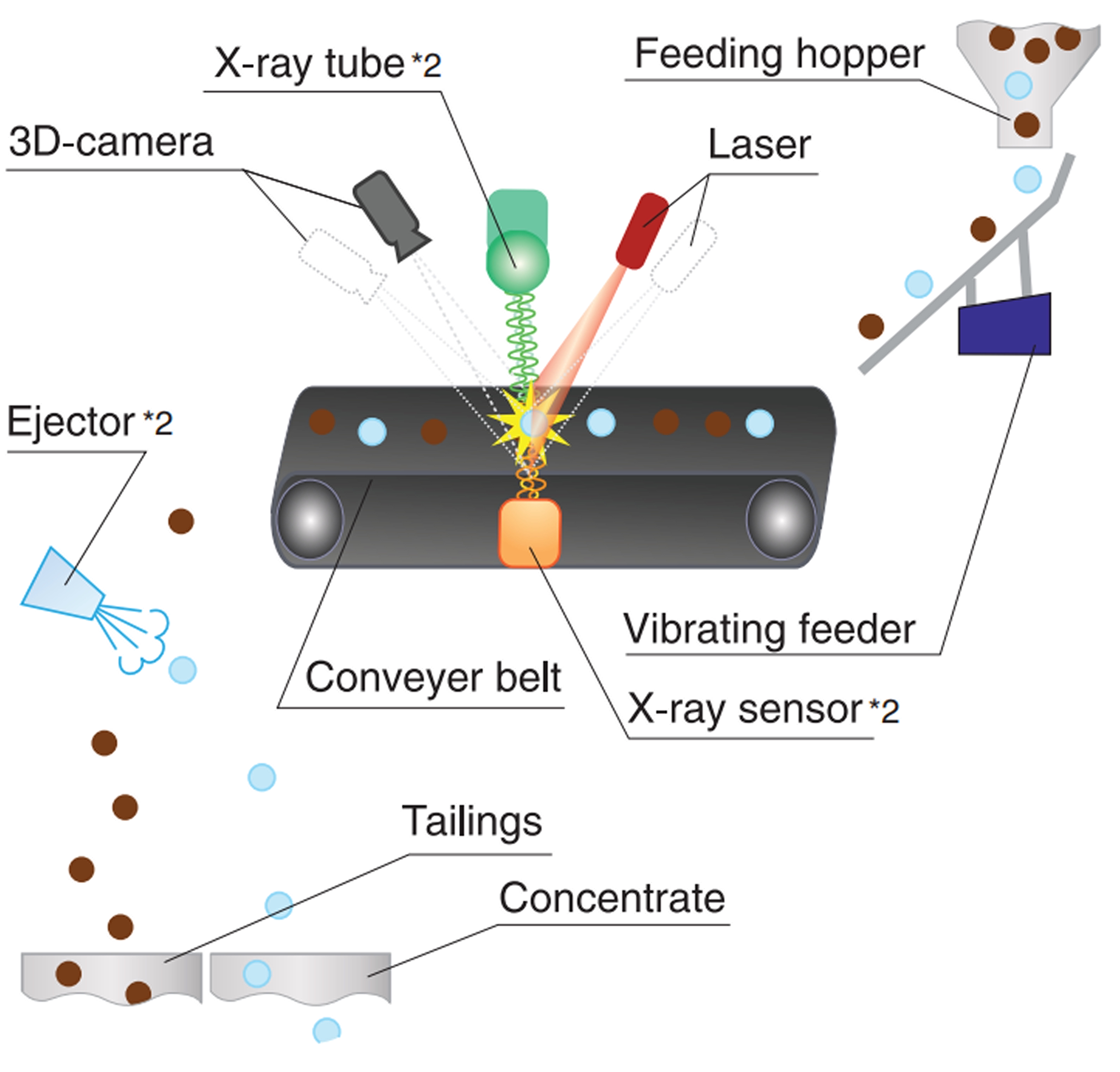

Process diagram

Options

Tracers for the Diamond Mining
Containerized Unit
Tracers for the Diamond Mining

Bourevestnik offers a broad line of boron carbide simulators (tracers) for testing mechanical recovery efficiency, adjusting transport delay time and cutoff duration, and tuning the sensitivity of XRT sorter.

Containerized Unit

Upon request Bourevestnik supplies the sorter and integrated auxiliary equipment as a part of the container unit.

Container plant is a mobile building in metal construction, container type, without running gear for operation outdoors at any time of the year and day and for permanent presence of personnel.


Unit composition:
    • all-welded metal housing;
    • power supply system;
    • climate control system;
    • fire alarm system and automatic fire extinguishing system;
    • lighting system;
    • water cooling system;
    • air supply system;
    • ore feed bin
