Analyzer UOK-2

Analyzer UOK-2

UOK-2 is specially designed for measuring numerical kinetic parameters of luminescence of diamonds and associated minerals. Obtained data are used for calibration of the Bourevestnik sorters. UOK-2 is based on property of diamonds to luminesce under the X-ray. Analyzer distinguishes diamonds from other associated luminescent minerals and also can measure characteristics with registration of luminescence of an object from both sides: irradiation and opposite. Bourevestnik in the separation of diamonds and associated luminescent minerals.

Data sets are accumulated, archived, analyzed and graphically presented. The obtained characteristics can be used:

to analyze the enrichment of diamond-containing materials by deposits and in the process of development of specific deposits;
for optimal selection of separating features to be put into separators;
to monitor the operation of luminescent separators.

The principle of operation of UOK-2 is based on the use of the property of diamonds to luminesce under the influence of X-ray radiation and the difference of these properties in diamonds and accompanying luminescent minerals. The possibility of simultaneous characterization when registering the luminescence of an object both from the irradiation side and from the side opposite to irradiation is realized.

The data obtained at UOC-2 should serve as a basis for the improvement of X-ray luminescent separators, as well as for. improving technological schemes of enrichment of diamond-containing materials..

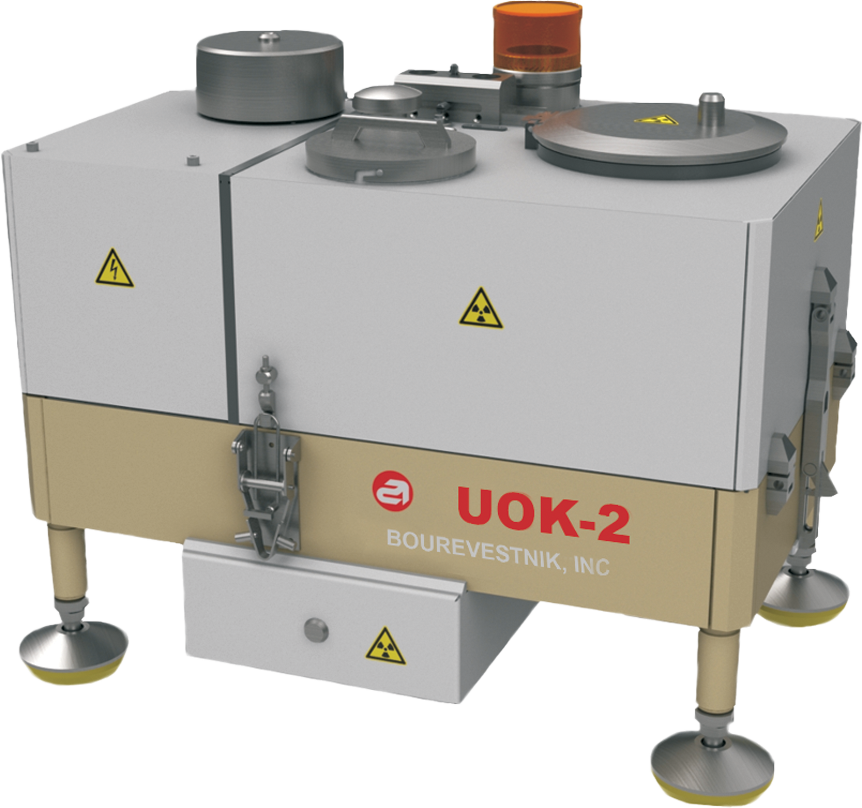

The UOK-2 consists of a main unit, a control unit and a personal computer with specialized software..

Specifications

Main specification
	In automatic feed mode		In manual feed mode
Size fraction, mm	-6 +3	-3 +1	-20
Throughput	up to 1200 samples per hour
Sampling	by particles, measuring by 12 parameters
Type of material	dry

Interface requirements
Power consumption, VA (single phase, 220 V / 50 Hz)	300
Operating temperature range	+10..+35°C with the relative humidity up to 80%

Dimensions and mass
	Dimensions, mm	Mass, kg
Sorting machine	510 х 410 х 570	75
Control unit	480 х 500 х 220	30

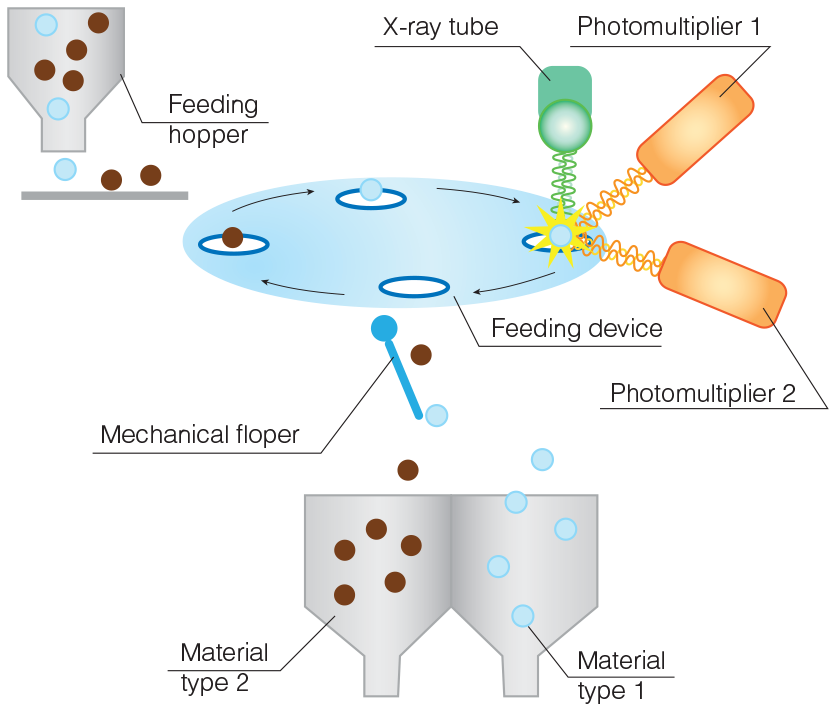

Process diagram

Options

Tracers for the Diamond Mining

Rock Analysis Software

Tracers for the Diamond Mining

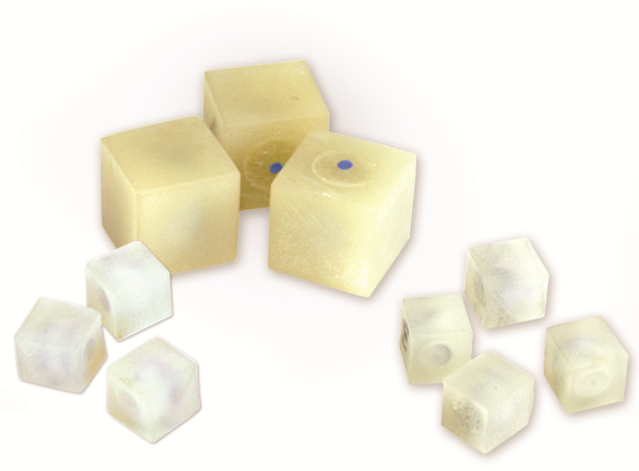

Bourevestnik offers a wide range of simulators (tracers) for testing mechanical recovery efficiency, adjusting transport delay time and cutoff duration, and adjusting the sensitivity of X-ray system.

Rock Analysis Software

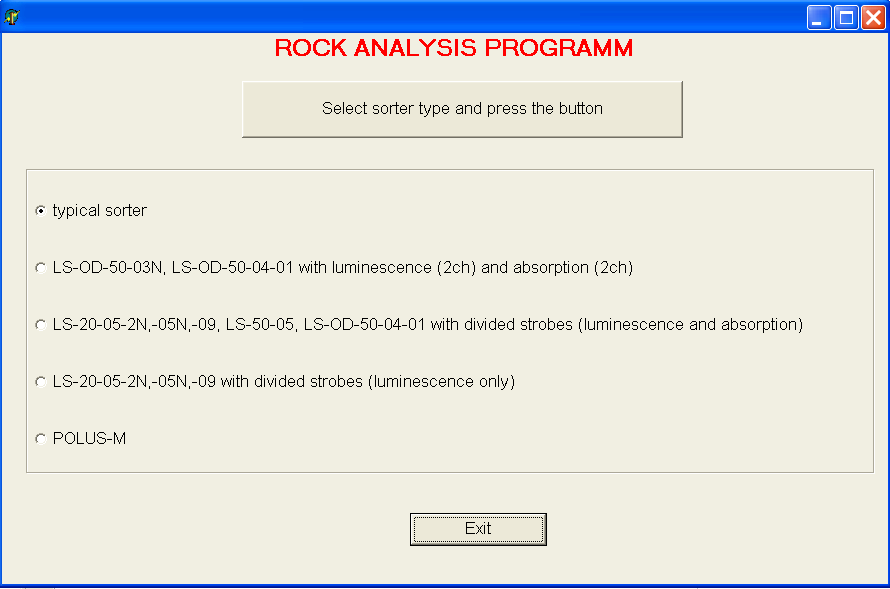

Rock analysis software is designed for visualization of mineral luminescence signals and further analysis of the obtained parameters.

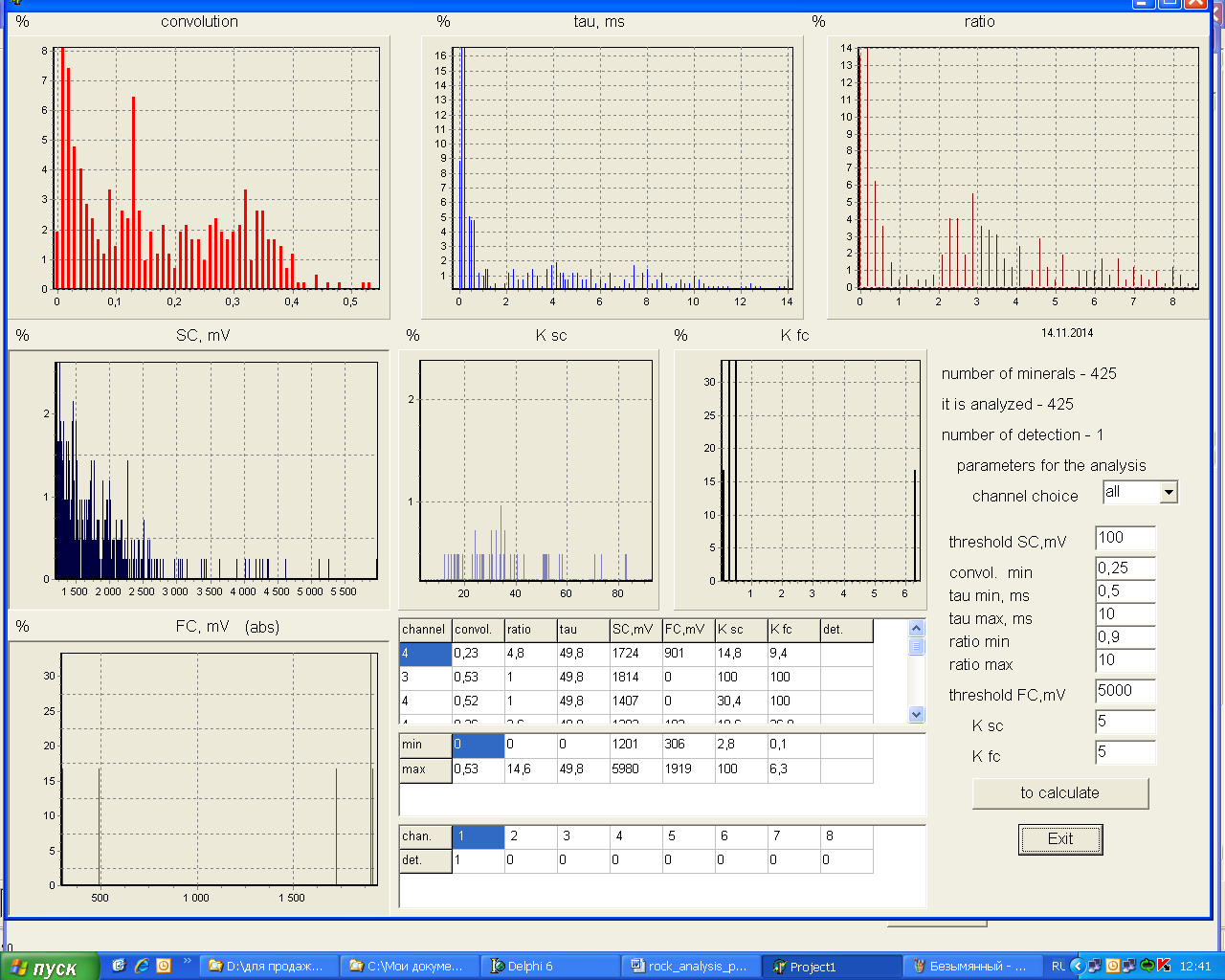

This software allows to analyze the character of distribution of minerals in the material by selective characteristics in the form of graphs and databases. The program is installed on a PC, reads information from the sorter human-machine interface unit via a specially provided RS232 channel and displays it on the screen.

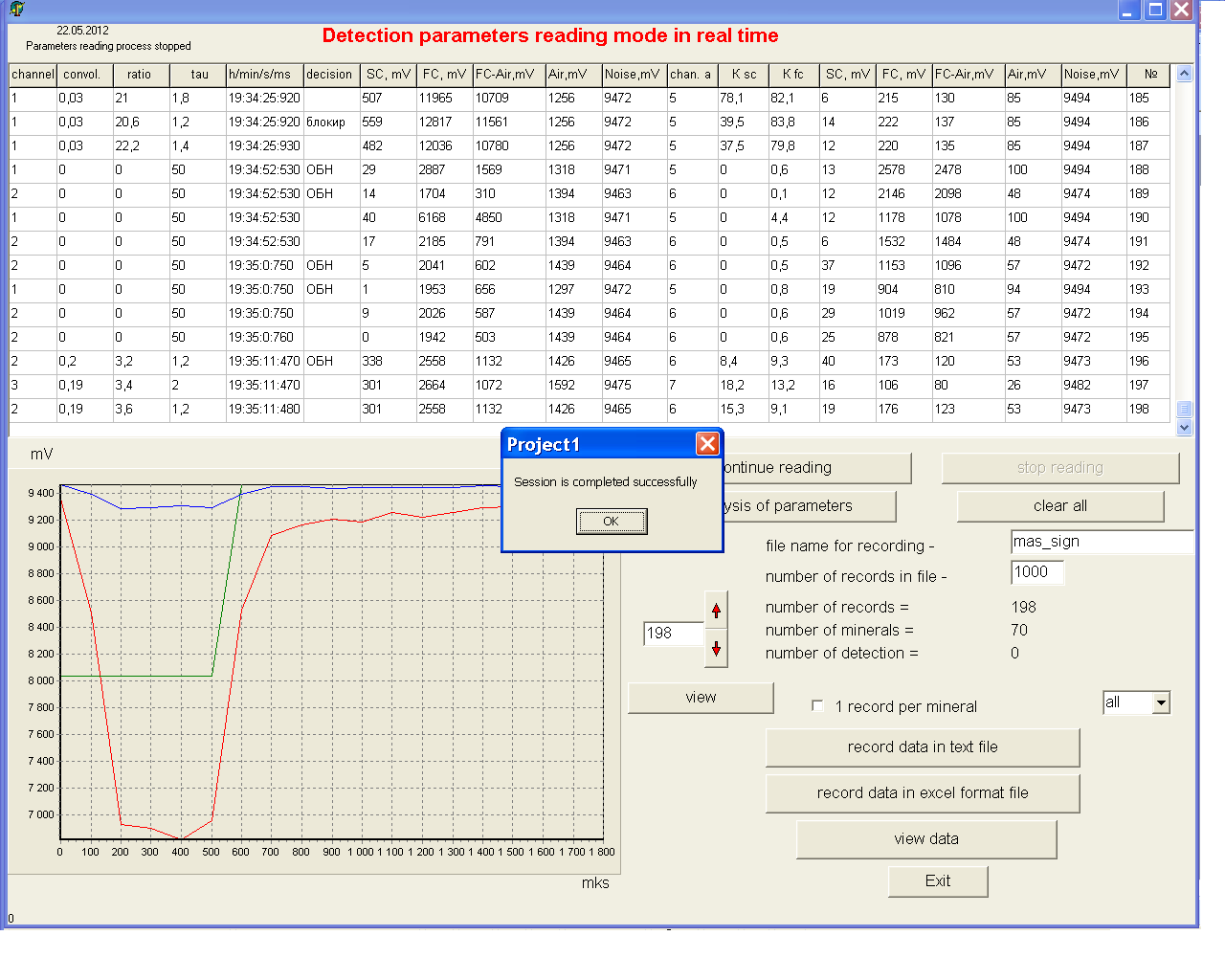

After that it is possible to analyze the obtained information. Each line of the table corresponds to one luminescence signal of a mineral in one channel, it is assigned a certain serial number. The image of the luminescence signal is stored under the same number, which can be viewed below the data table.
