Automated system of analytical monitoring (ASAM)

Automated system of analytical monitoring (ASAM) is a complex of technical means with centralized control designed for automatic selection of process products, transportation to the place of analysis, sample flow through the X-ray spectral analyzer and determination of the elemental composition of the sample. The analysis results are transmitted to the plant's process control system.

The ASAM system is based on high-precision AR-35 and ARO analyzers, which implement a wave-dispersion method for measuring the mass fraction of chemical elements from sulfur (S) to uranium (U).

Additionally, dividers can be integrated into the sample delivery system to send the sample to the dewatering device and prepare the samples for independent measurement in the laboratory.

The possibility of on accurate real-time measurements
Improving the efficiency of process control
Integration into in the plant control system
Based on high-precision WDXRF analyzers

Specifications

Number of sampling lines	from1 to 30 pcs
Analyzed products	pulp, solutions, suspensions
Sampling period for analysis	from 2 to 30 minutes (depending on the length of the line and its operating mode)
Sampling period for the laboratory	from 60 minutes
Analysis time and provision of the chemical analysis result	from 40 sec
Primary sample flow rate	Recommended from 70 to 200 l/min, 300 l/min maximum, 40 l/min minimum
Working hours	Round-the-clock operation, with a stop for scheduled maintenance every 30 days

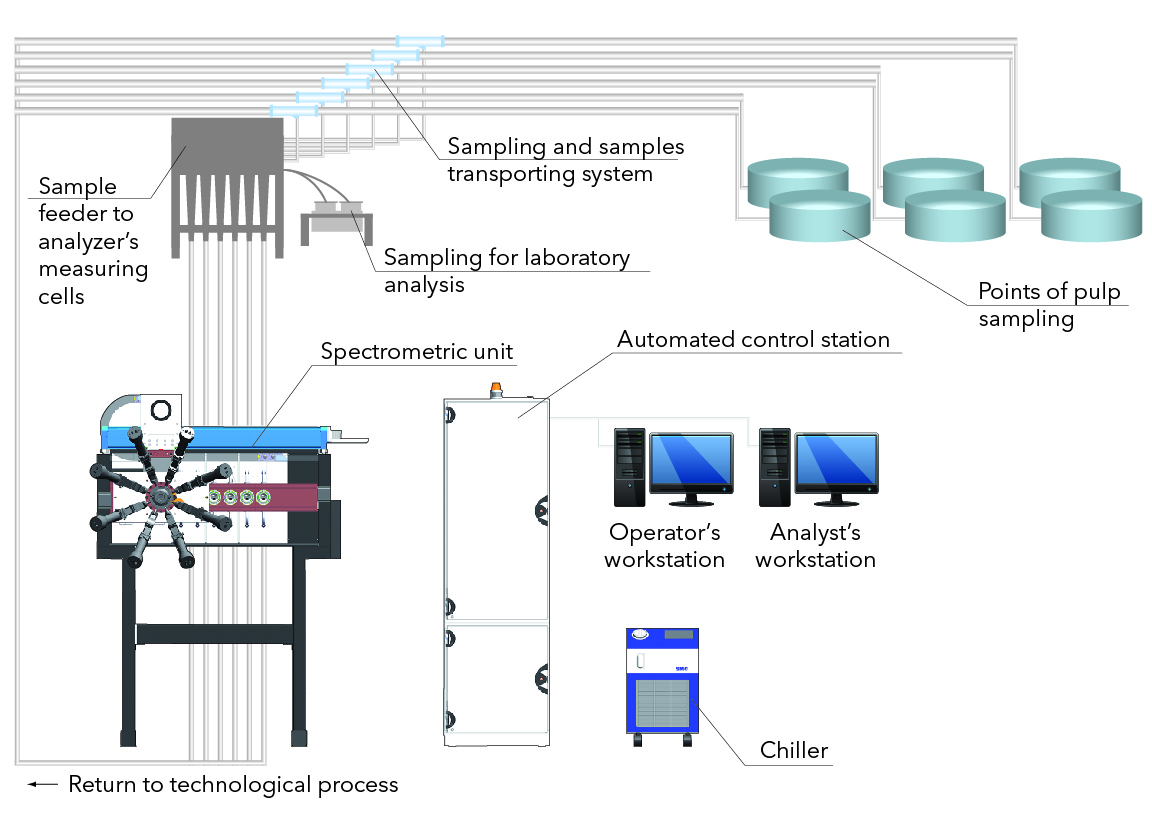

Process diagram

Basic equipment

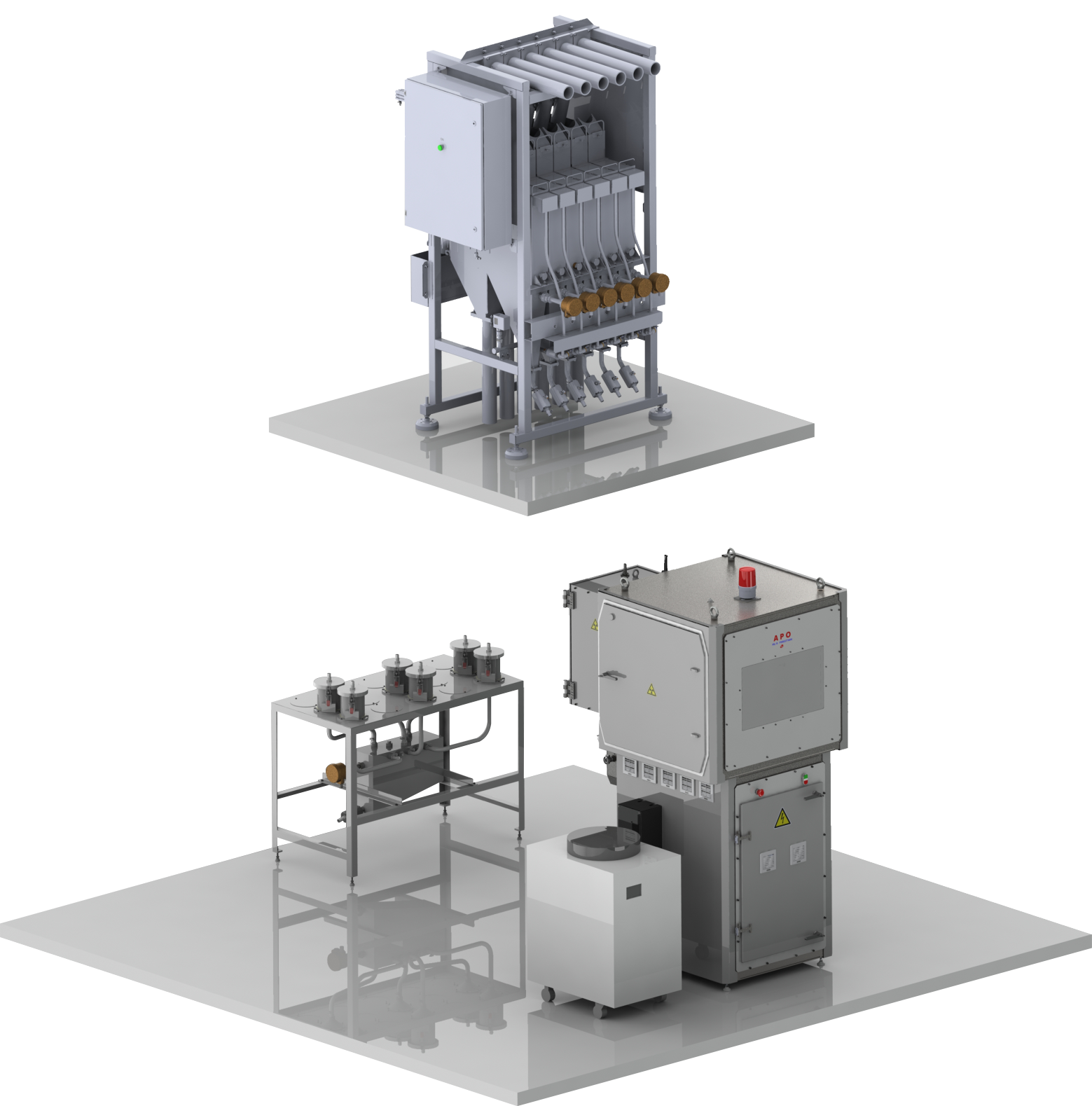

A set of samplers
Sample Sending unit
Sample acceptance unit
Analyzer sample supply unit / calibration sampling / balance sampling

Options

Installation in a container

Multiplexer

Composite sample filtering

Calibration sampling device

The sampler

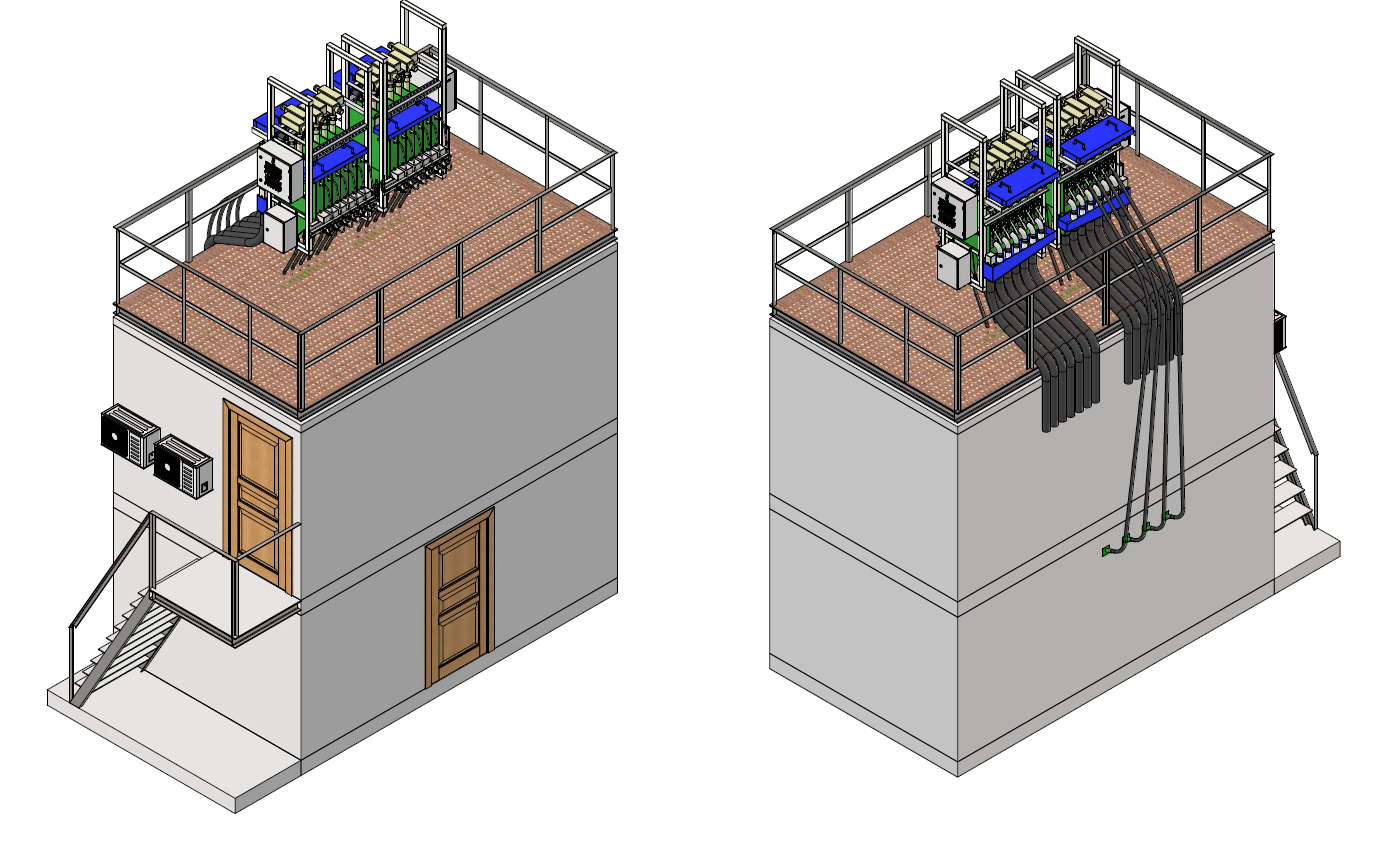

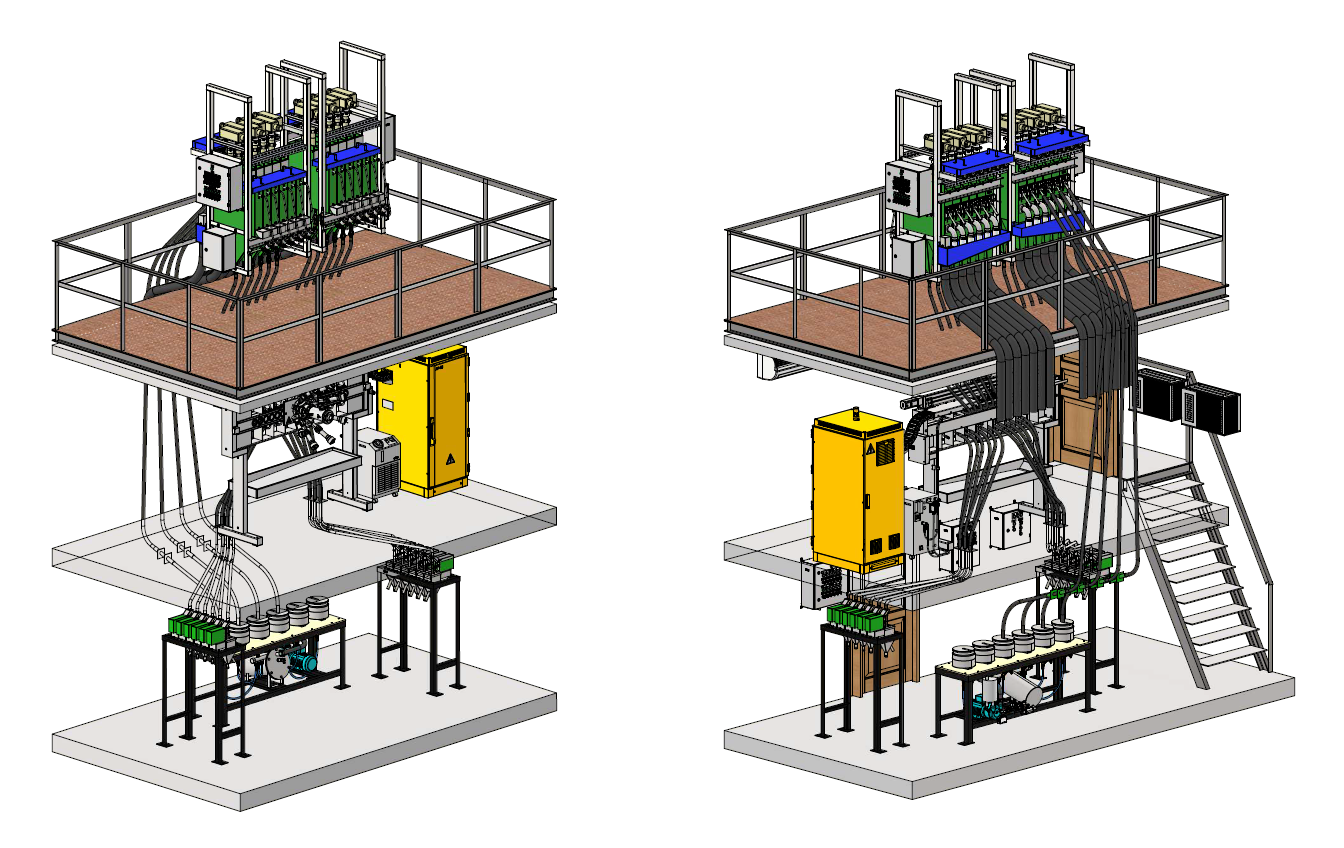

Installation in a container

The elements of automated system of analytical monitoring (ASAM) can be installed in the block container in the required configuration:

- lighting equipment;
- ventilation system;
- fire extinguishing system;
- panel equipment;
- fire alarm system.

If there are requirements for fire safety and explosion protection, a special container can be selected.

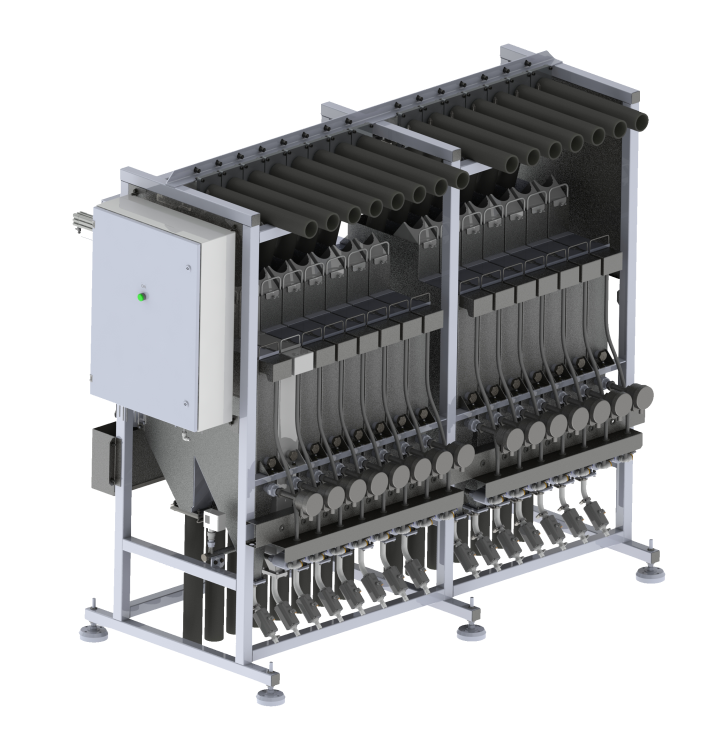

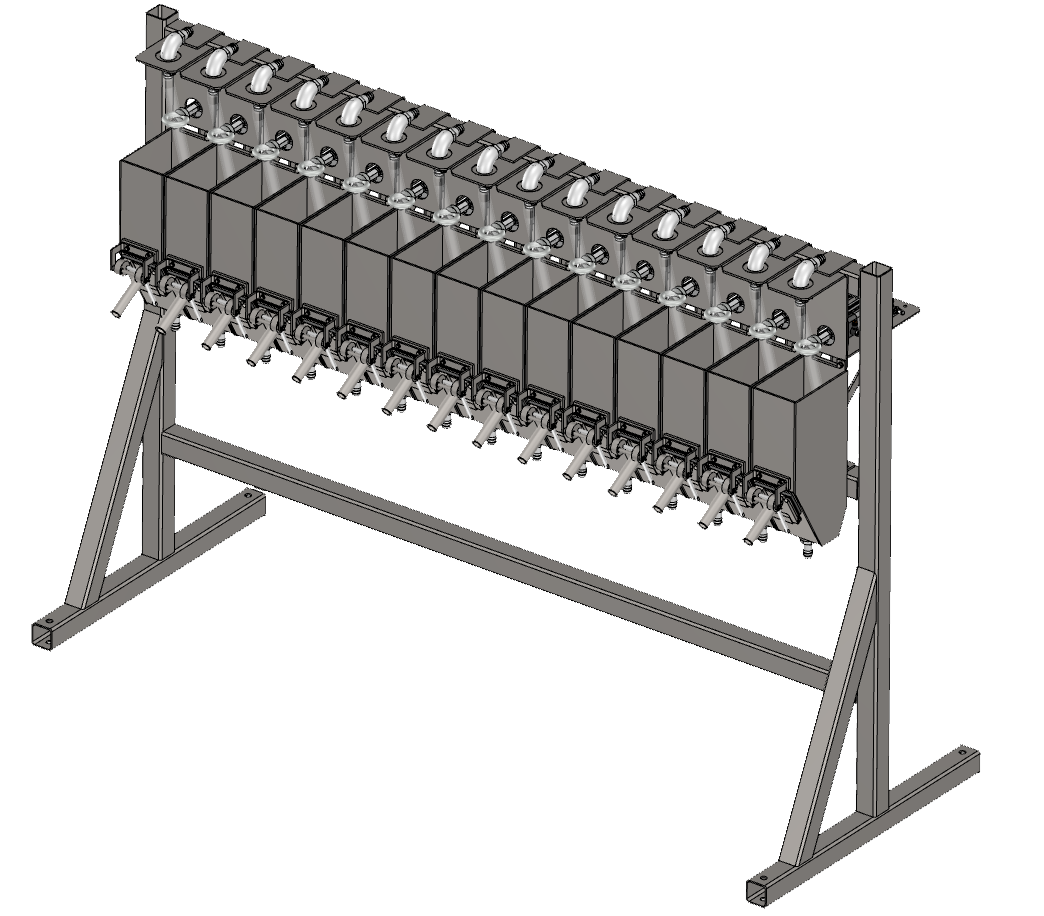

Multiplexer

It is intended for representative allocation of control pulp samples and pulp supply to the analyzer synchronously with the algorithm of its operation.

Also, multiplexers is intended for switching the flow of the analyzed sample between a flow analyzer and a composite sample filtering device. During sampling for analysis, its representativeness and stabilization of physical parameters are ensured, and the set level of sample material in the averaging tank is maintained. Also, when a sample is accumulated in an averaging tank, a defoaming system is used to ensure uniformity of samples for foam products. Unused material is drained through a drainage outlet to the sample return devices in the process.

The multiplexer is a secondary sampling device with the possibility of autonomous operation. The multiplexer is capable of providing composite (balanced) Sampling without reference to the analyzer operation.

Composite sample filtering

It is intended for the accumulation of composite (balance) sample material from the multiplexer, which is automatically dehydrated. The sample is dehydrated by drawing free water from the sample volume through a paper filter. During the operation of the filtration device, a ready-made solid sample is formed on a paper filter, which is then transferred to the quality control service for subsequent chemical analysis.

Calibration sampling device

It is intended for the selection of representative liquid samples for the purposes of calibration and control of the analysis results.

The sampling work is carried out according to a pre-established program that determines the frequency, duration and number of cut-offs, which are set through the analyzer software. The return of samples to the technological process that have been analyzed for each individual product can be carried out separately.

The sampler

It is selected according to the initial data of the sampling point.

It is possible to integrate the system with an existing sampling system.

Software

Analyst’s workstation

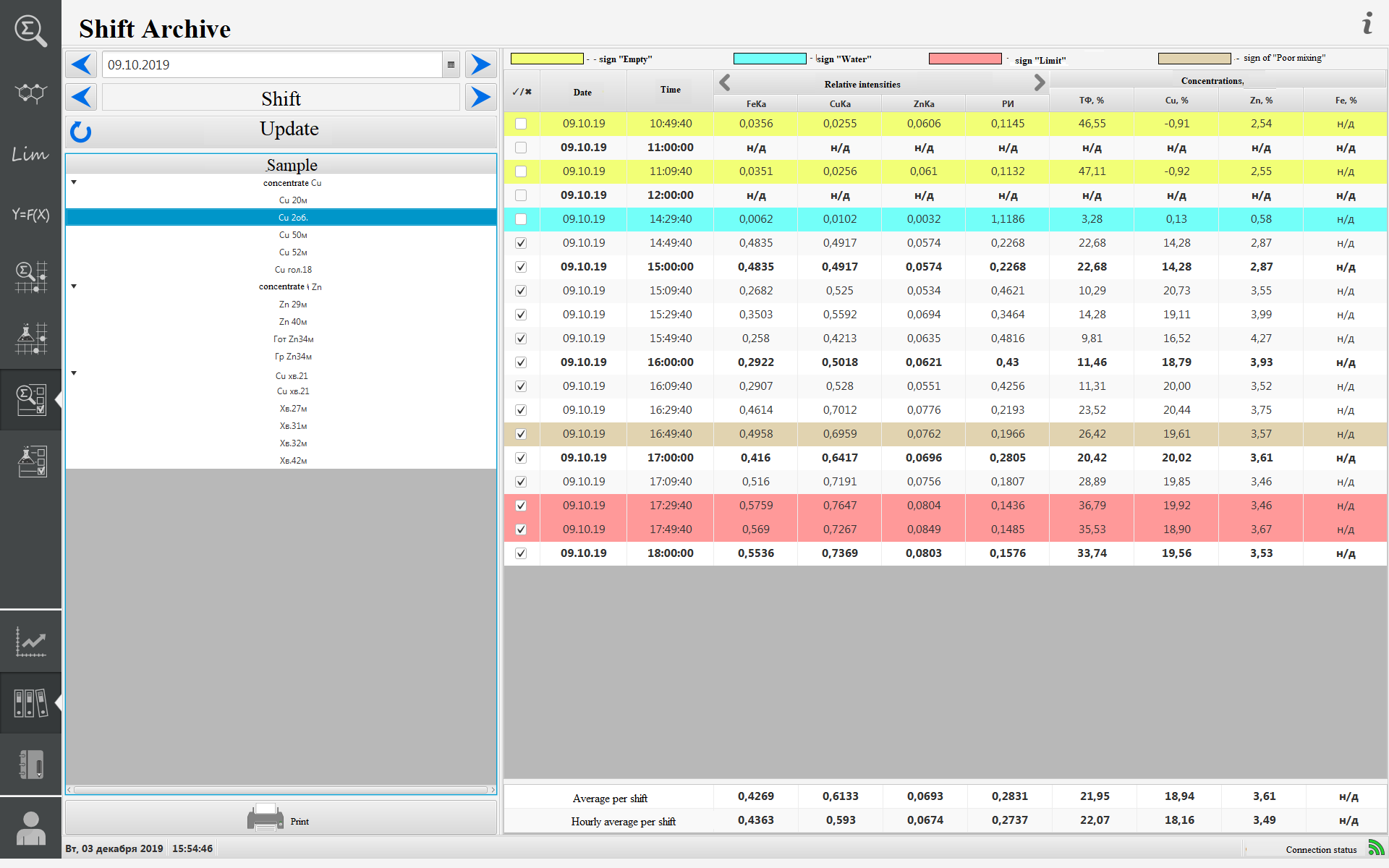

Operator’s workstation

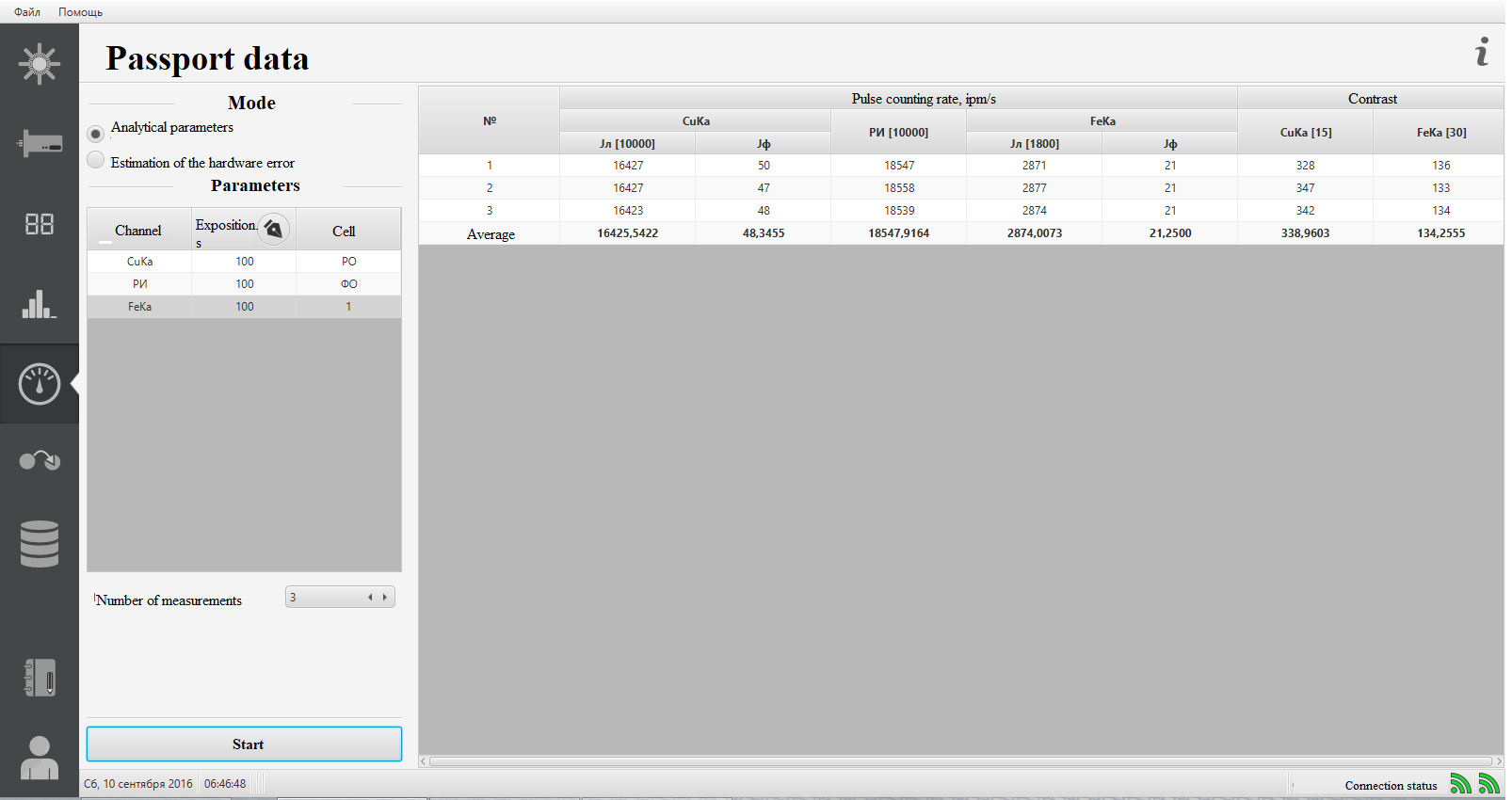

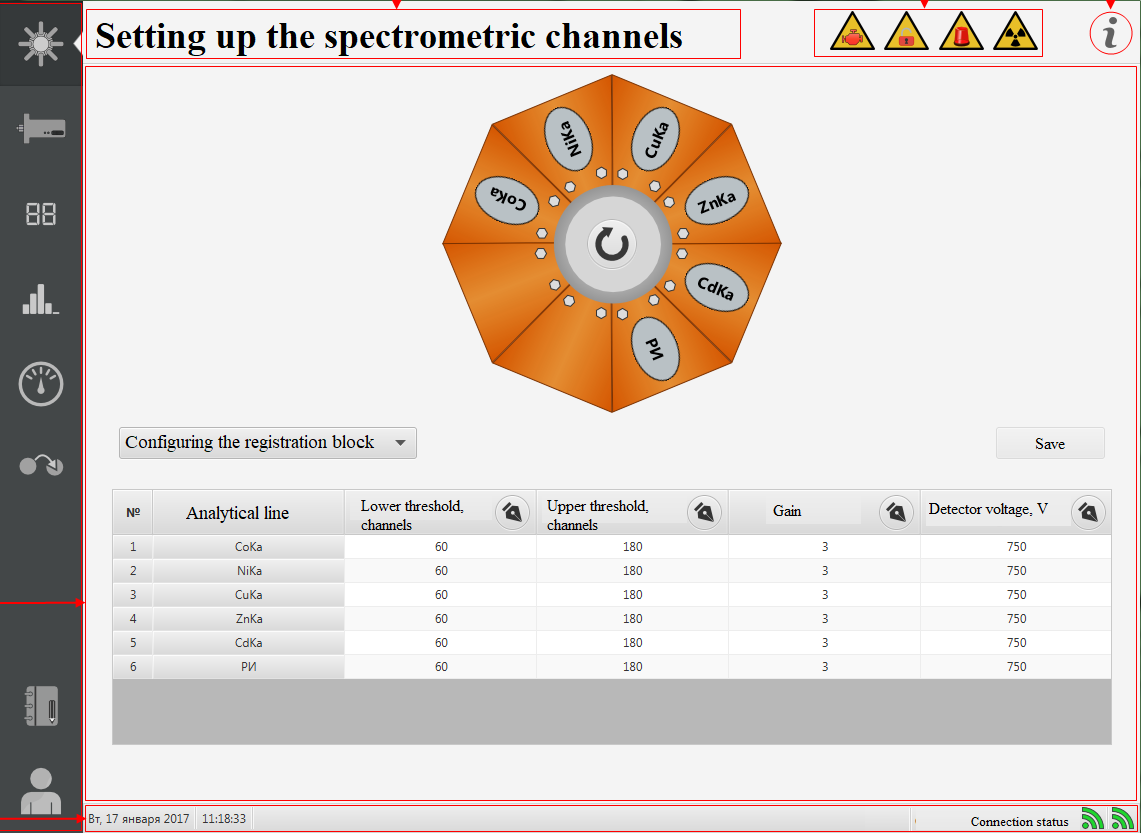

Service workstation

The program "Sample preparation and sampling Adjuster"

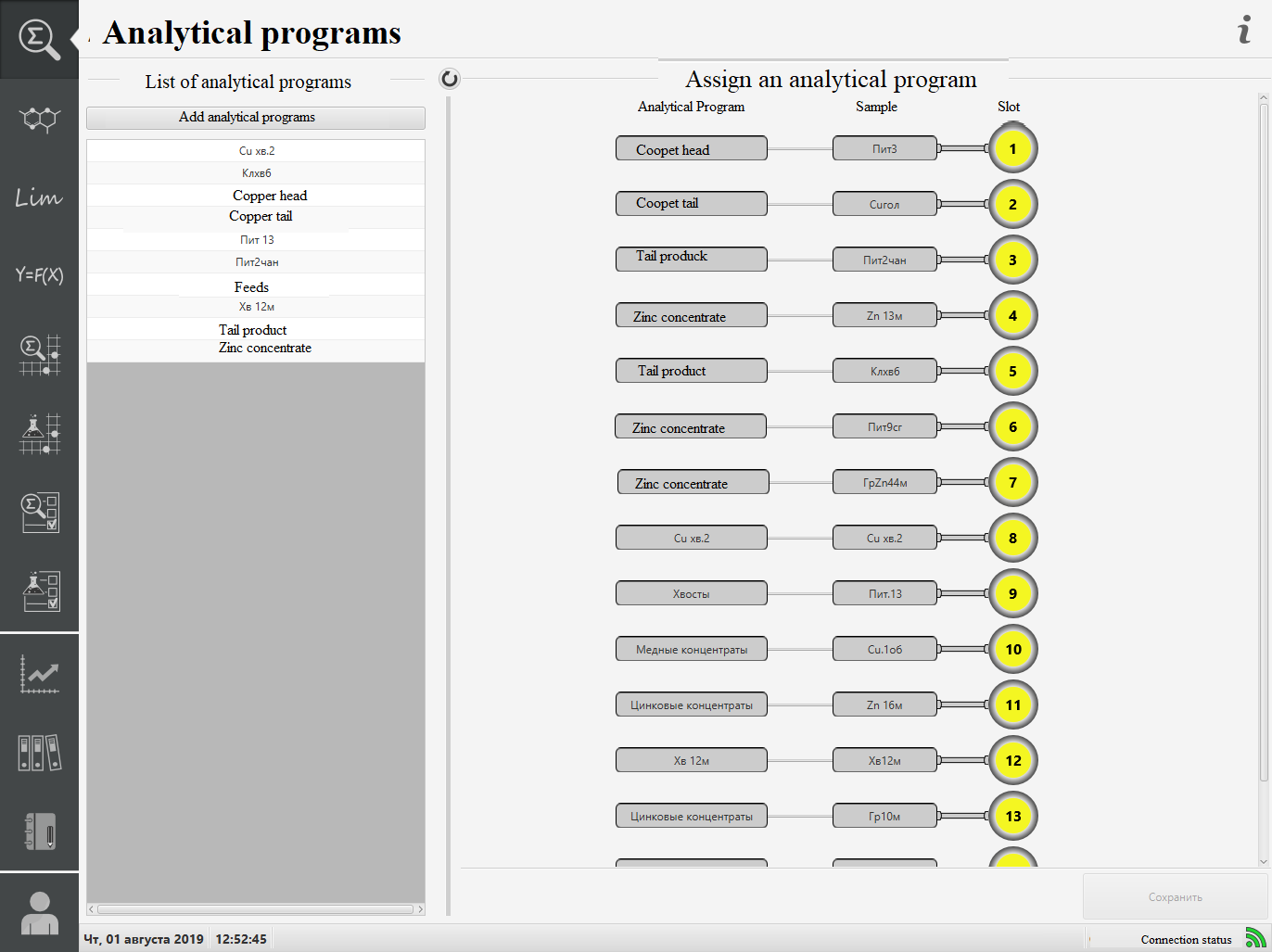

Analyst’s workstation

The solution of analytical tasks of automated analytical control system.

The Analyst program provides:

creation of analytical programs and their assignment to the analyzed product;

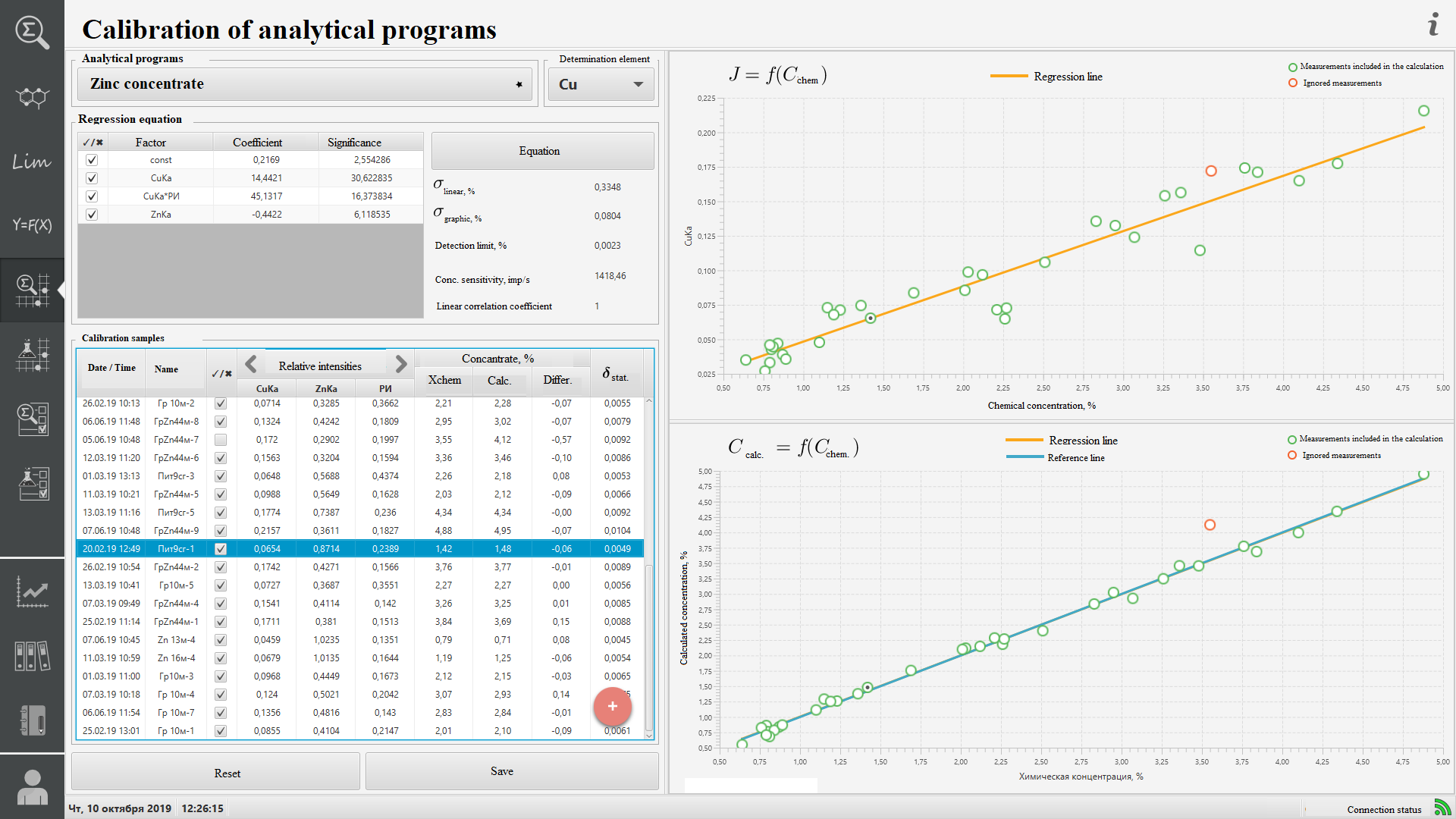

formation of an array of calibration measurements with the possibility of entering the results of chemical analysis included in this array of calibration samples, and their further use in the modes of calibration and correction of analysis results;
construction of calibration equations and calculation of calibration coefficients for created analytical programs;
graphical representation of the dependences of the line intensities of the analyzed elements and their calculated contents in calibration samples on the contents obtained by chemical analysis;
construction and graphical representation of the dependences of analytical line intensities on the intensity of scattered radiation in calibration samples;
calculation of the coefficients of correction of the analysis results;
correction of the values of the calculated coefficients (calibration coefficients, coefficients of correction of the analysis results).

Software language – English.

Operator’s workstation

The Operator program implements the following functions:

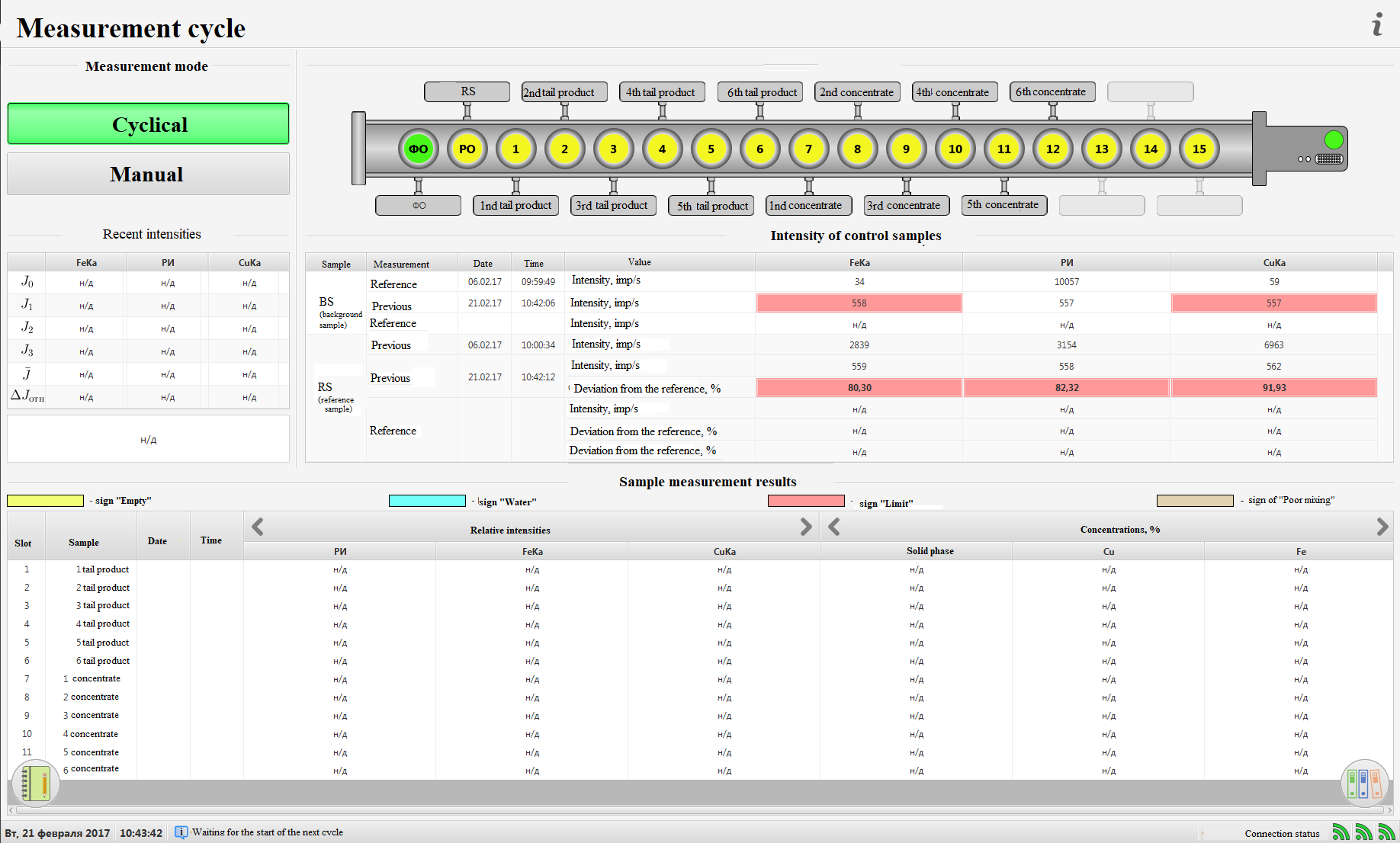

analysis in cyclic measurement mode;
calibration measurements;
one-time measurements;
measurements of reference samples and replacement of reference intensities;
displaying the analysis results obtained in the current cycle;
displaying the current analyzer status;
displays the latest measurement results of the reference sample intensities.

Software language – English.

Service workstation

The Service program provides:

visualization of the state of the AR-35 analyzer, sensors and devices included in its composition;
parameterization of the operation of the spectrometric device, setting time intervals for the movement of the measuring device;
manual analyzer control;
testing the operation of the linear actuator motor in the one-time command mode.

Software language – English.

The program "Sample preparation and sampling Adjuster"

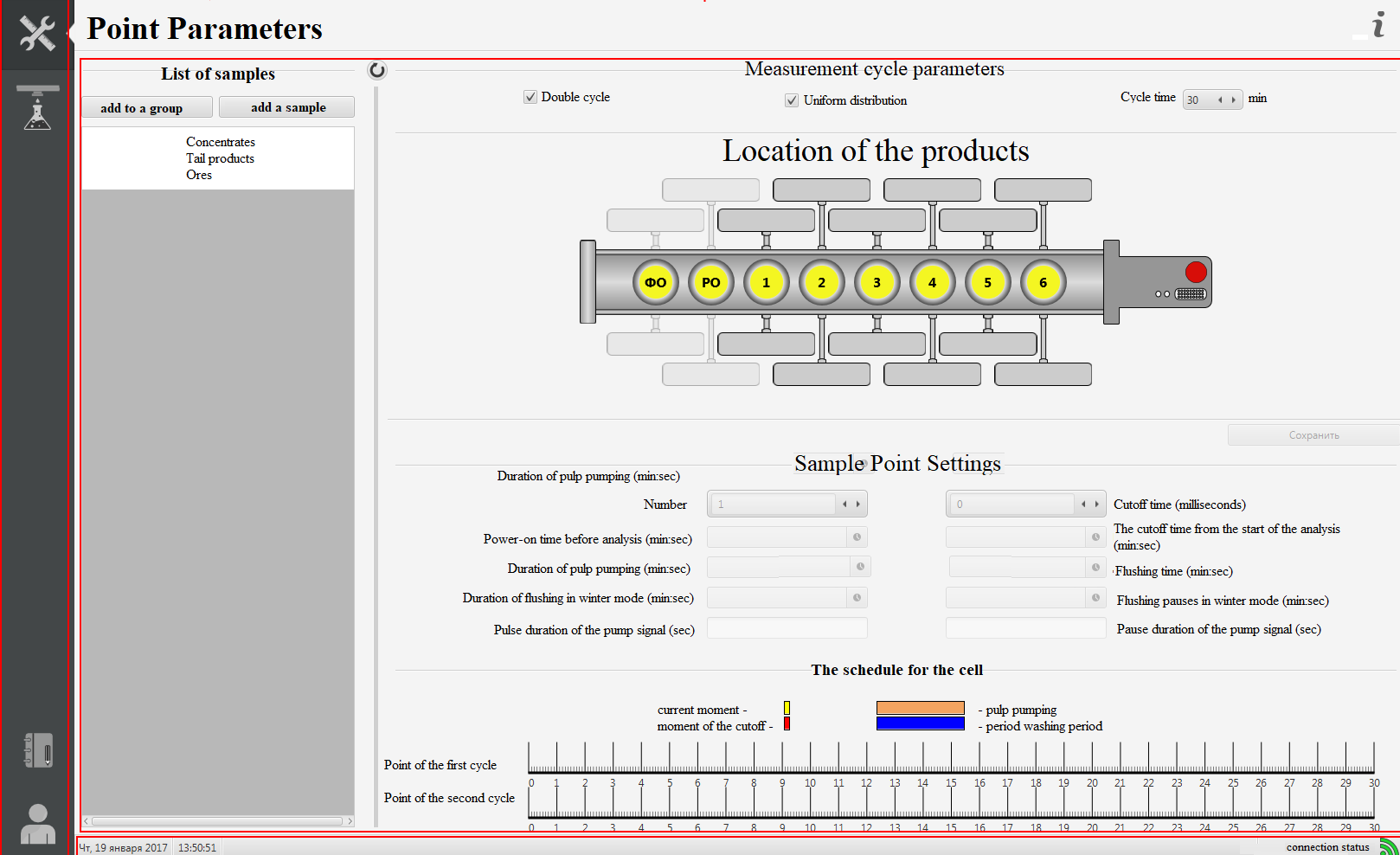

The program "Sampling and sampling Adjuster" allows to perform the following functions:

create groups of measured products, as well as the products themselves;
assign the measured products to the measuring cuvettes of the analyzer;
set cyclic model parameters;
match products and sampling points and set their parameters;
switch individual sampling points as well as the entire sampling system to different modes;
view the current status of the sampling and sampling system.
