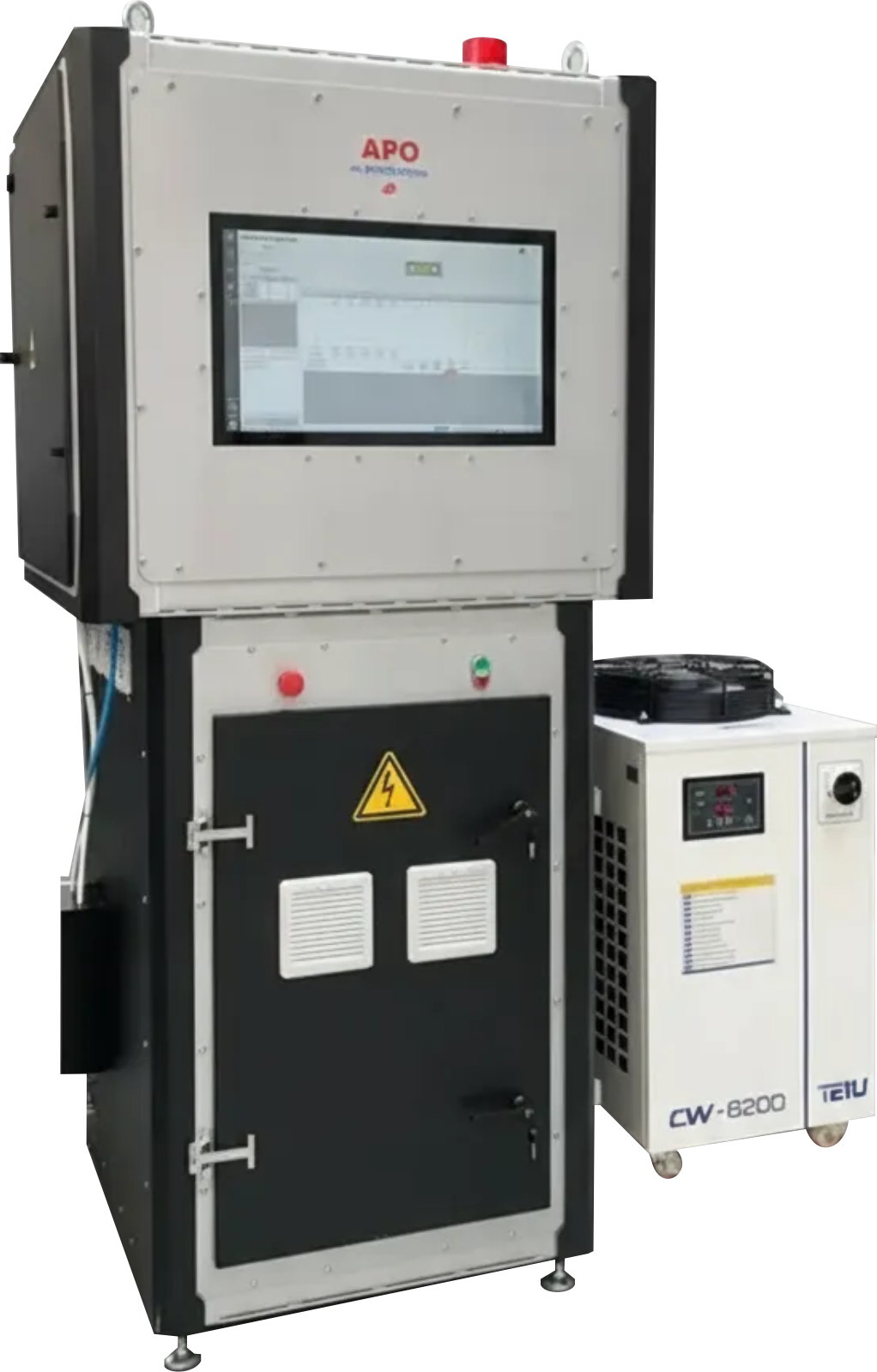

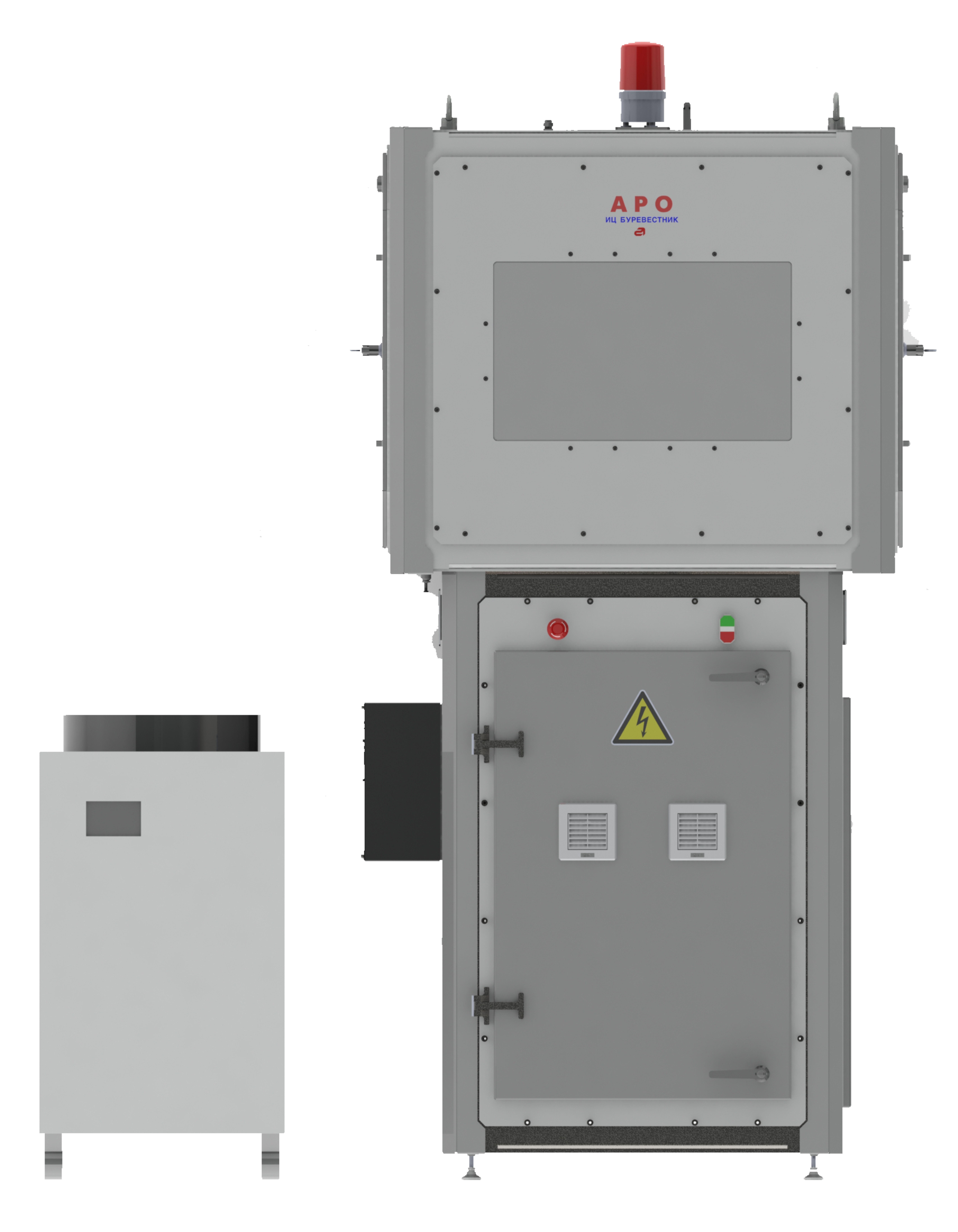

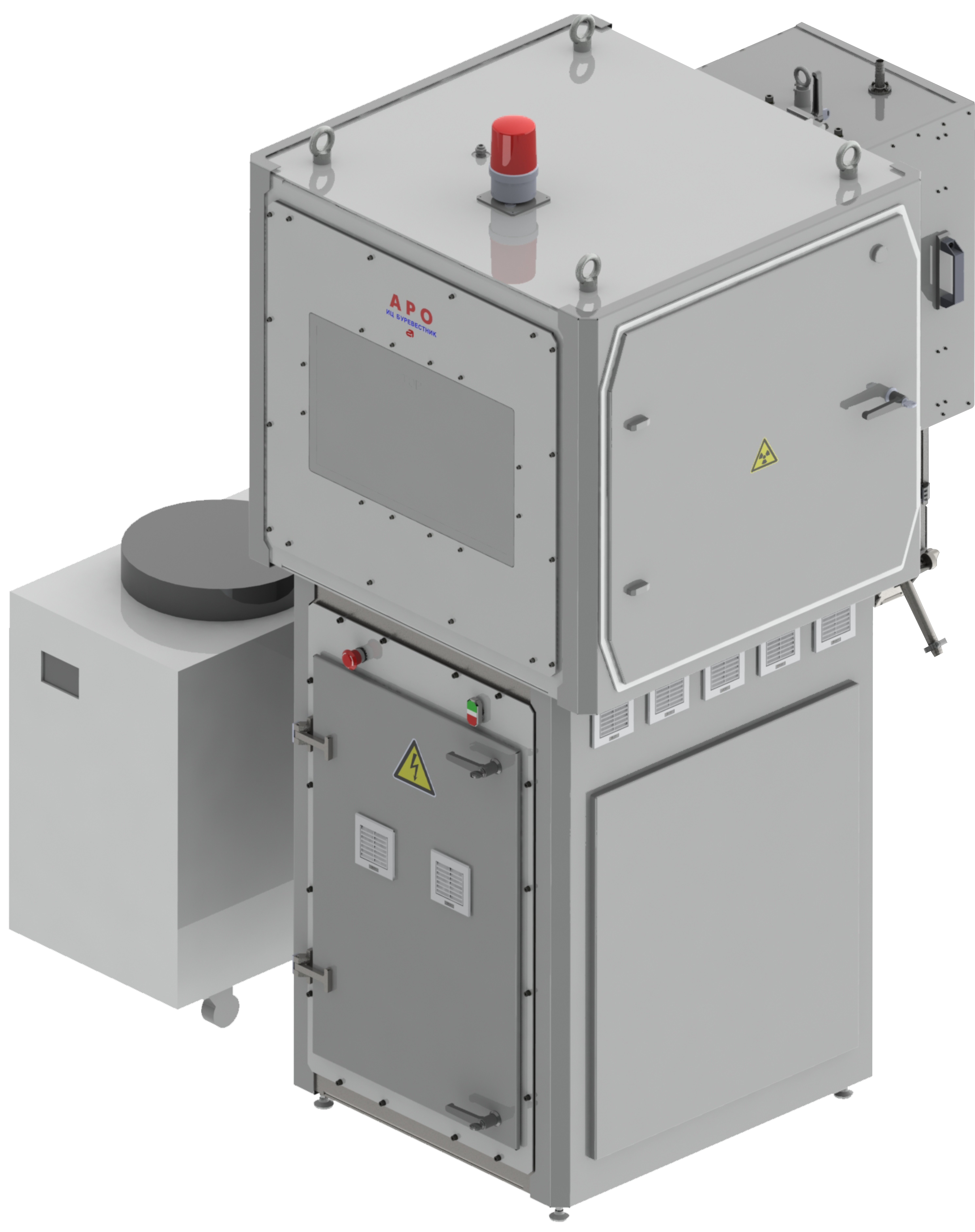

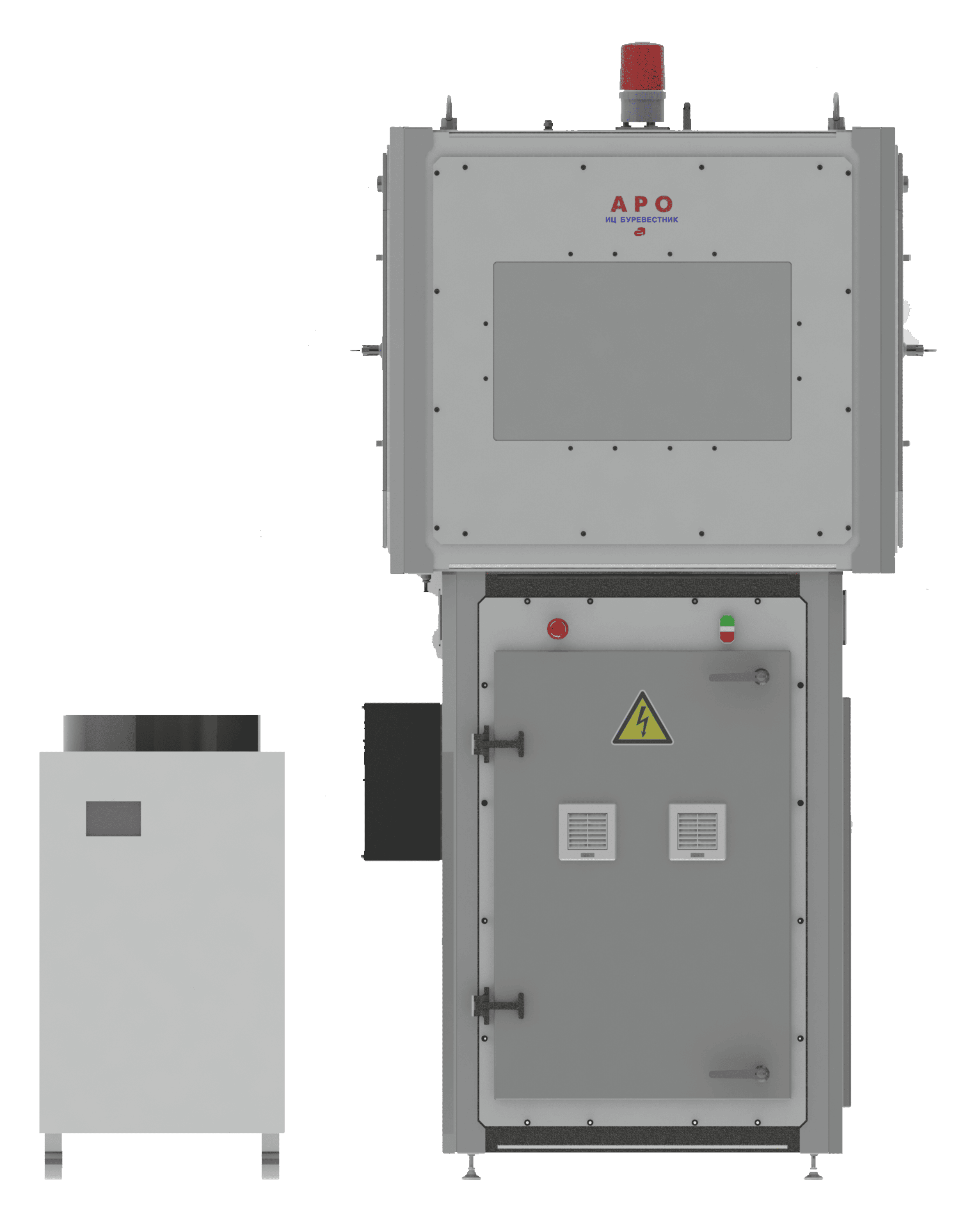

On-stream XRF Single-cell Analyzer ARO

The ARO analyzer provides automatic measurement and determination of concentrations of chemical elements from sulfur (S) to uranium (U) when equipped with appropriate spectrometric channels. Analyzed products: pulp, solutions. The device consists of a two-section spectrometric rack which contains a section with a flow cell and a measuring chamber with an X-ray tube. The housing reliably protects personnel from radiation exposure, as well as the device elements from environmental influences.

The ARO analyzer can be installed near the sampling point in the production room. The ARO analyzer can be included in the project of an automated system of analytical monitoring (ASAM) with sampling equipment and multiplexer.

High expressiveness and accuracy of analysis
Low detection limit
Automatic film change on the cell
Compact and reliable design
Degree of protection of the analyzer design - IP 56
Compatible with systems of automated sampling
May be exempt from radiation control
The developed software package of automated workstations ("Operator", "Adjuster", "Analyst") performs the necessary functions for processing and presenting analysis results, organizing data archive storage, and monitoring the system status

Specifications

Determining elements	from S (16) to U (92)
The number of simultaneously determined chemical elements	up to 7 pcs. and the content of the solid phase in the pulp, up to 15 pcs when using the SSD device
Number of reference samples	2 pcs
Number of analyzed products	1 product when used at the sampling point or up to 5 products of the same type in multiplexing mode
Maximal relative error, no more	0,3 %
Range of determination: in solution in slurries and suspensions	from 0,0001 % from 0,001 %
Average time analysis per 1 flow	from 40 sec
Cooling of the X-ray tube	Water, autonomous
Max. Power Supply, no more	5 kVA
Degree of protection of the analyzer design	IP56
Dimensions, LxHxW - Spectrometer device - Automatic control unit	1058х1877х921 mm 603х1300х873 mm
The service life, not less	10 years

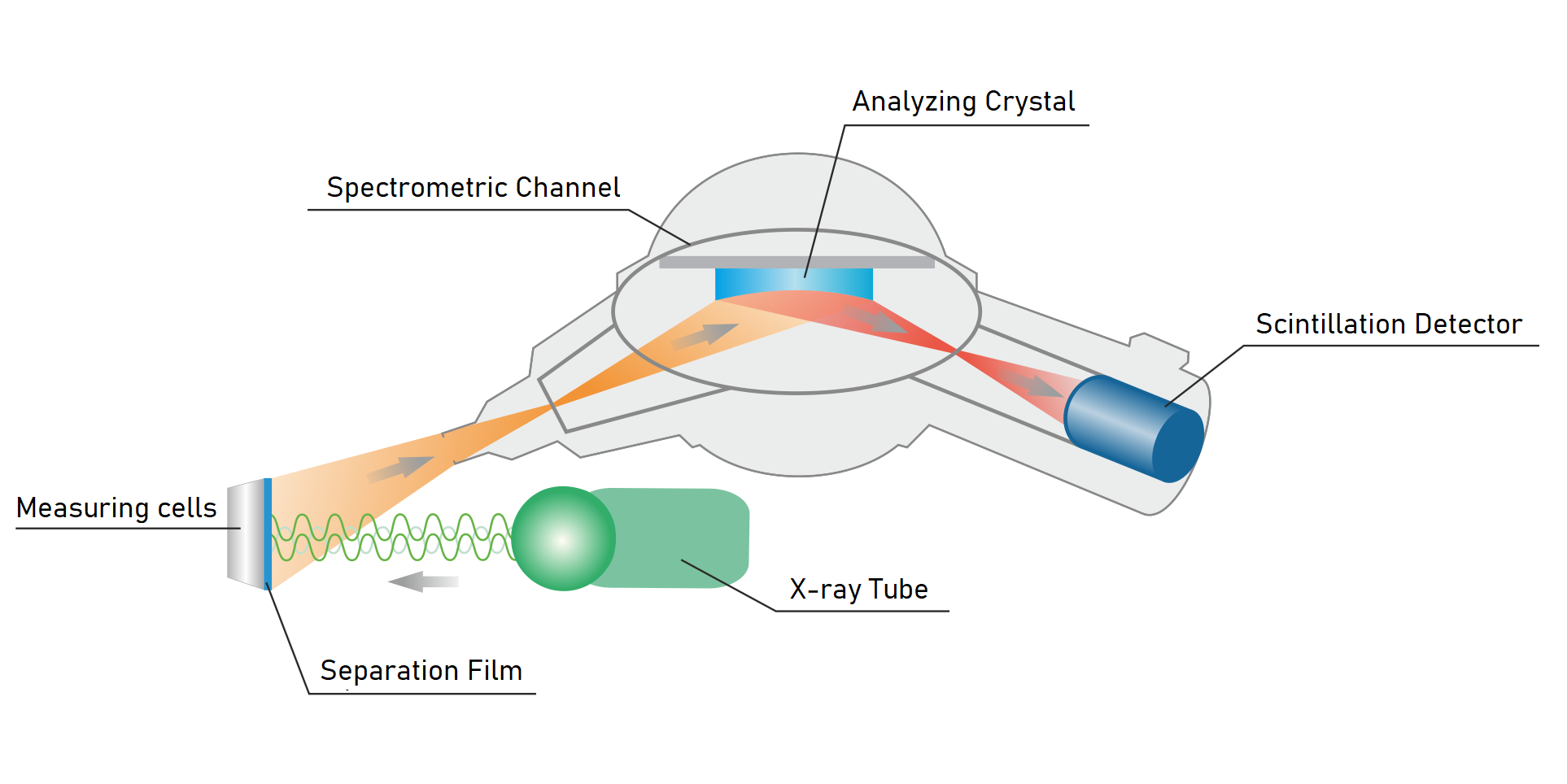

Process diagram

Basic equipment

Spectrometer device with Service Workstation
Automatic control uni (ACU)
Service and Operator’s workstations are installed on ACU
Analyst’s workstation
Calibration sample
A set of spare parts, tools and accessories for use during the warranty period

Options

Semiconductor detector SSD

Composite sample filtering

Capital-purpose spare parts

Multiplexer

Semiconductor detector SSD

A semiconductor detector can be installed to expand the analytical capabilities of the analyzer:

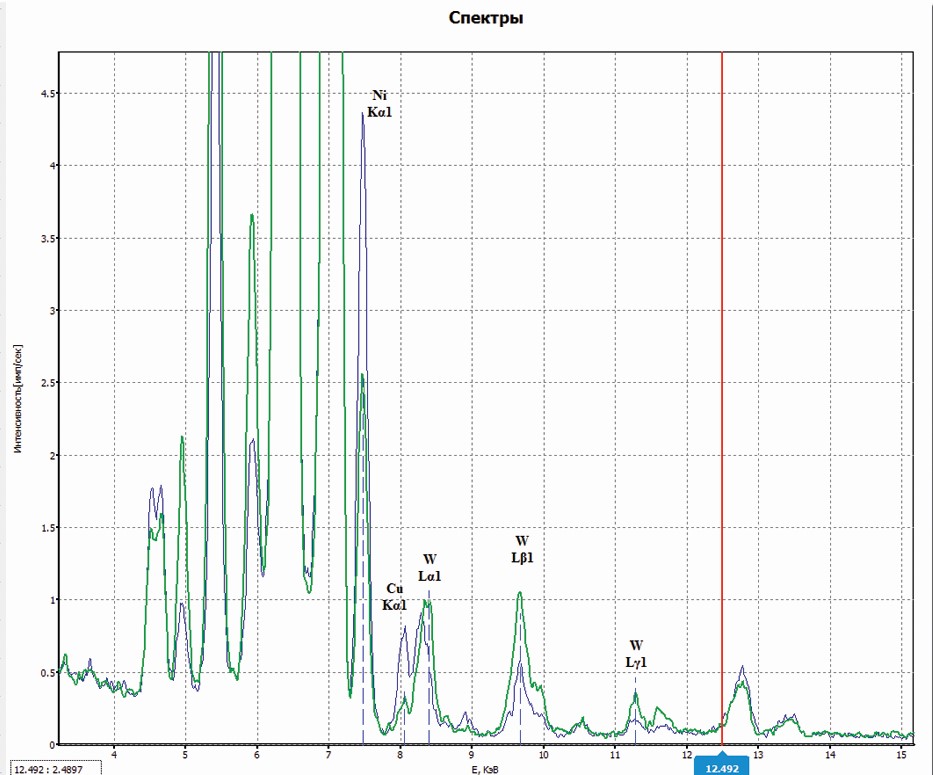

to visualize the overview spectrum for a detailed study of the composition of products;
expanding the number of elements to analyze.

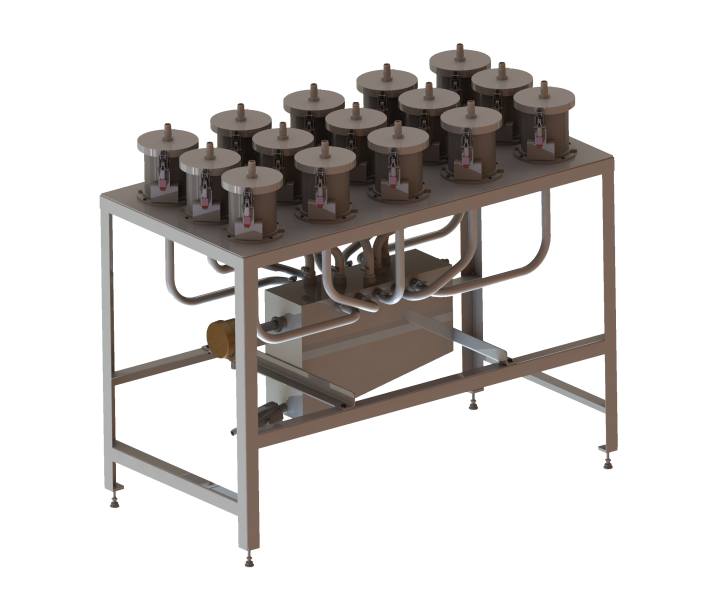

Composite sample filtering

It is intended for the accumulation of composite (balance) sample material from the multiplexer, which is automatically dehydrated. The sample is dehydrated by drawing free water from the sample volume through a paper filter. During the operation of the filtration device, a ready-made solid sample is formed on a paper filter, which is then transferred to the quality control service for subsequent chemical analysis.

Capital-purpose spare parts

An optional capital spares parts can be included:

high voltage power supply;
cooling system;
detection unit;
registration unit.

Multiplexer

It is intended for representative allocation of control pulp samples and pulp supply to the analyzer synchronously with the algorithm of its operation.

Also, multiplexers is intended for switching the flow of the analyzed sample between a flow analyzer and a composite sample filtering device. During sampling for analysis, its representativeness and stabilization of physical parameters are ensured, and the set level of sample material in the averaging tank is maintained. Also, when a sample is accumulated in an averaging tank, a defoaming system is used to ensure uniformity of samples for foam products. Unused material is drained through a drainage outlet to the sample return devices in the process.

The multiplexer is a secondary sampling device with the possibility of autonomous operation. The multiplexer is capable of providing composite (balanced) Sampling without reference to the analyzer operation.

Software

Analyst’s workstation

Operator’s workstation

Service workstation

The program "Sample preparation and sampling Adjuster"

Analyst’s workstation

The solution of analytical tasks of automated analytical control system.

The Analyst program provides:

creation of analytical programs and their assignment to the analyzed product;
formation of an array of calibration measurements with the possibility of entering the results of chemical analysis included in this array of calibration samples, and their further use in the modes of calibration and correction of analysis results;
construction of calibration equations and calculation of calibration coefficients for created analytical programs;
graphical representation of the dependences of the line intensities of the analyzed elements and their calculated contents in calibration samples on the contents obtained by chemical analysis;
construction and graphical representation of the dependences of analytical line intensities on the intensity of scattered radiation in calibration samples;
calculation of the coefficients of correction of the analysis results;
correction of the values of the calculated coefficients (calibration coefficients, coefficients of correction of the analysis results).

Software language – English.

Operator’s workstation

The Operator program implements the following functions:

analysis in cyclic measurement mode;
calibration measurements;
one-time measurements;
measurements of reference samples and replacement of reference intensities;
displaying the analysis results obtained in the current cycle;
displaying the current analyzer status;
displays the latest measurement results of the reference sample intensities.

Software language – English.

Service workstation

The Service program provides:

visualization of the state of the AR-35 analyzer, sensors and devices included in its composition;
parameterization of the operation of the spectrometric device, setting time intervals for the movement of the measuring device;
manual analyzer control;
testing the operation of the linear actuator motor in the one-time command mode.

Software language – English.

The program "Sample preparation and sampling Adjuster"

The program "Sampling and sampling Adjuster" allows to perform the following functions:

create groups of measured products, as well as the products themselves;
assign the measured products to the measuring cuvettes of the analyzer;
set cyclic model parameters;
match products and sampling points and set their parameters;
switch individual sampling points as well as the entire sampling system to different modes;
view the current status of the sampling and sampling system.

Drawings

Dimensional drawing of ARO
