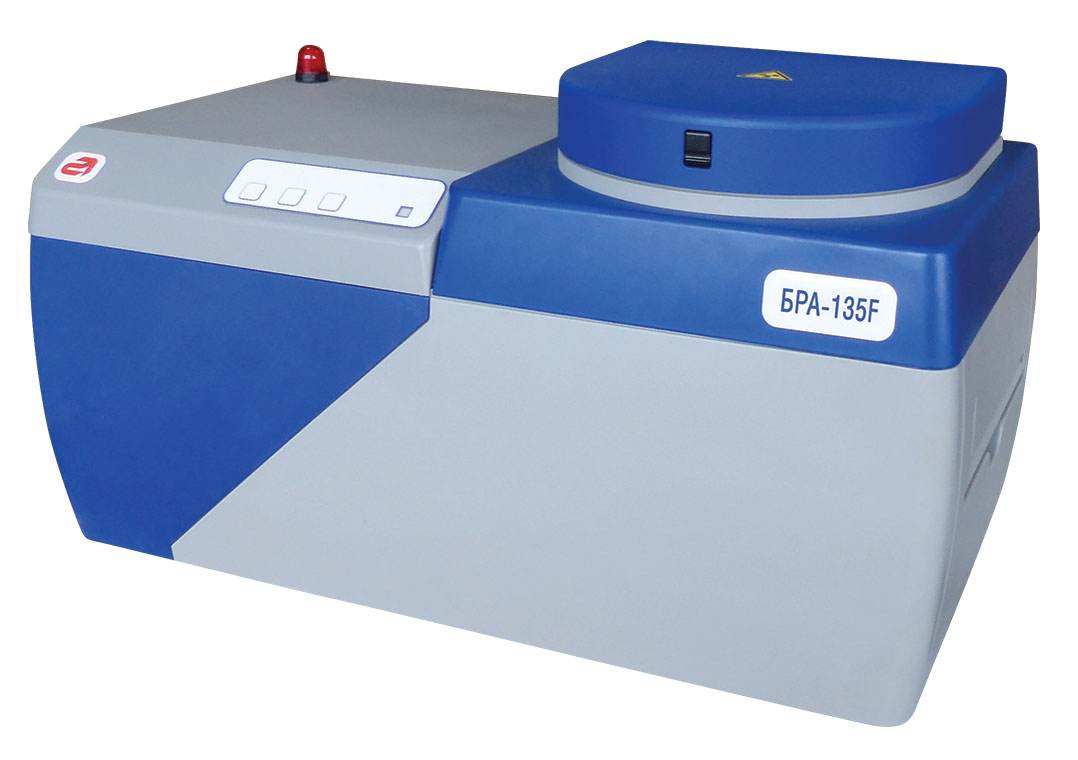

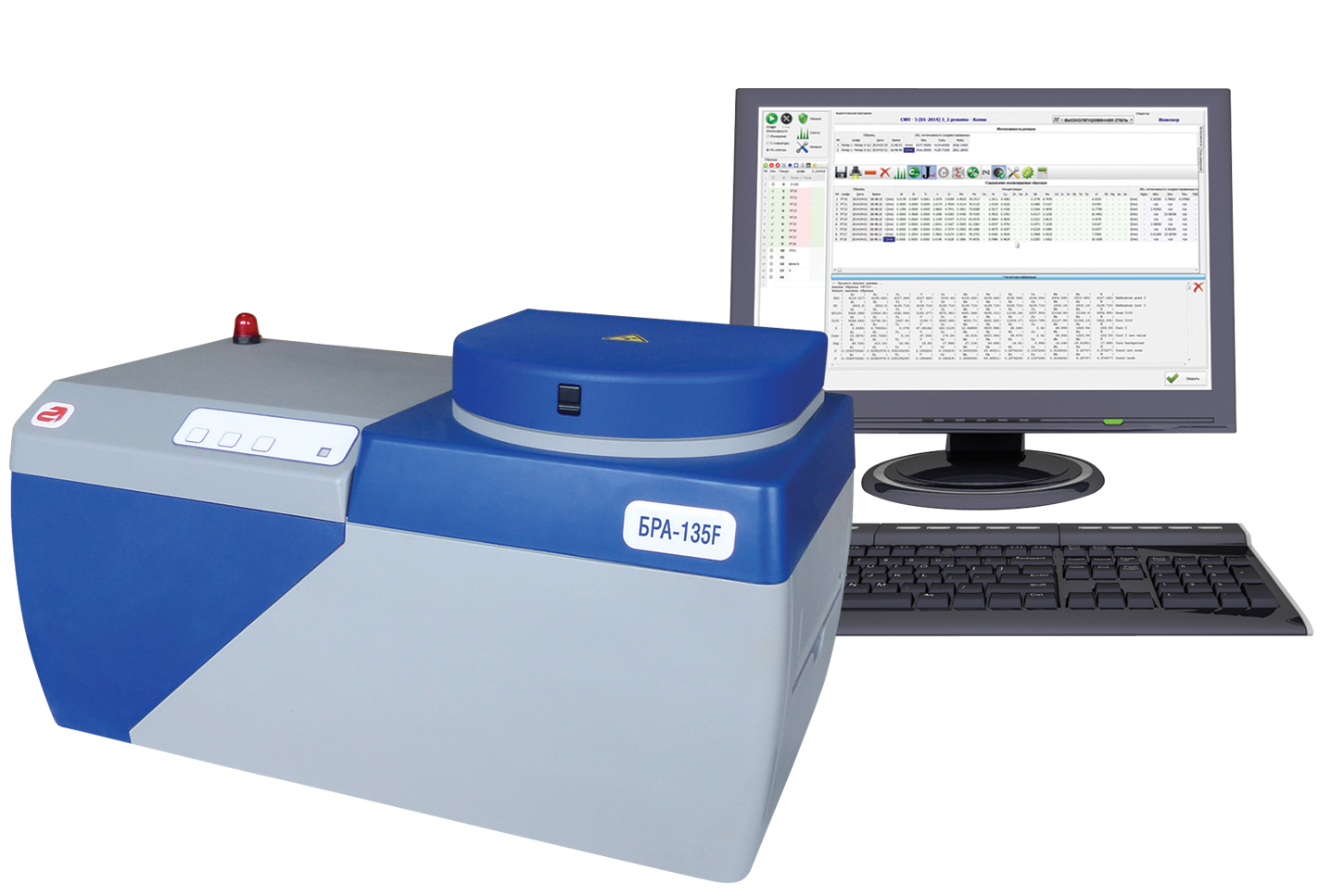

X-ray Fluorescence Spectrometer BRA-135F

The BRA-135F is intended for the qualitative and quantitative determination of chemical elements in range from ⁹F to ⁹²U of liquid, powder and solid samples.

Used methods of analysis:

Qualitative analysis - for qualitative determination of the composition of the substance under study by the presence of peaks characteristic of specific elements in the spectrum, i.e. the presence of this or that element;
Quantitative analysis - for quantitative determination of the content of elements on the basis of processing of the obtained spectrum with the help of a special calibration program (quantitative calibration of the instrument);
Method of fundamental parameters - for quantitative determination of element content without using standard samples for calibration (for determination of alloy compositions).

Determining elements from F to U;
Analysis time per sample - from 10 to 200 sec;

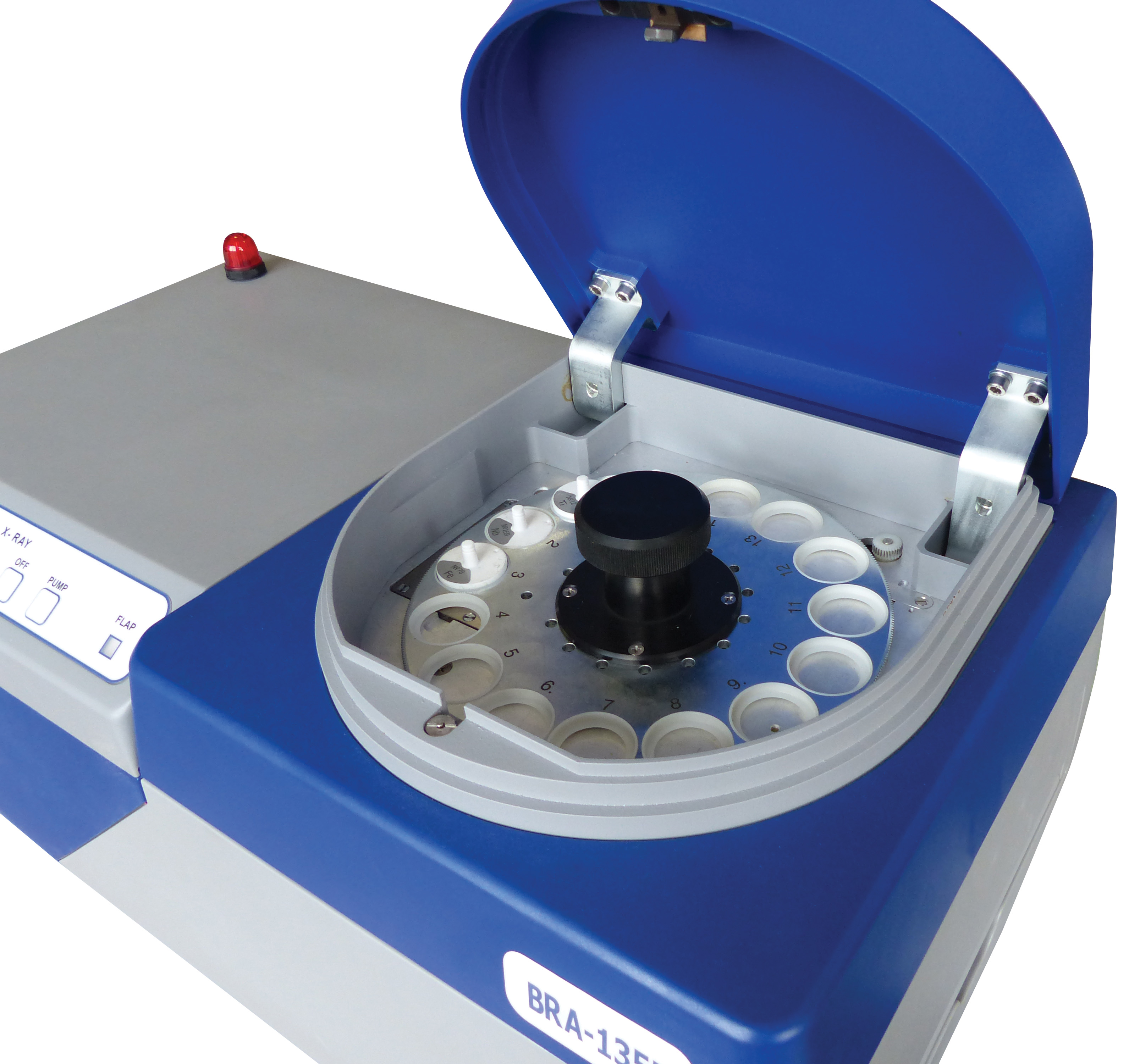

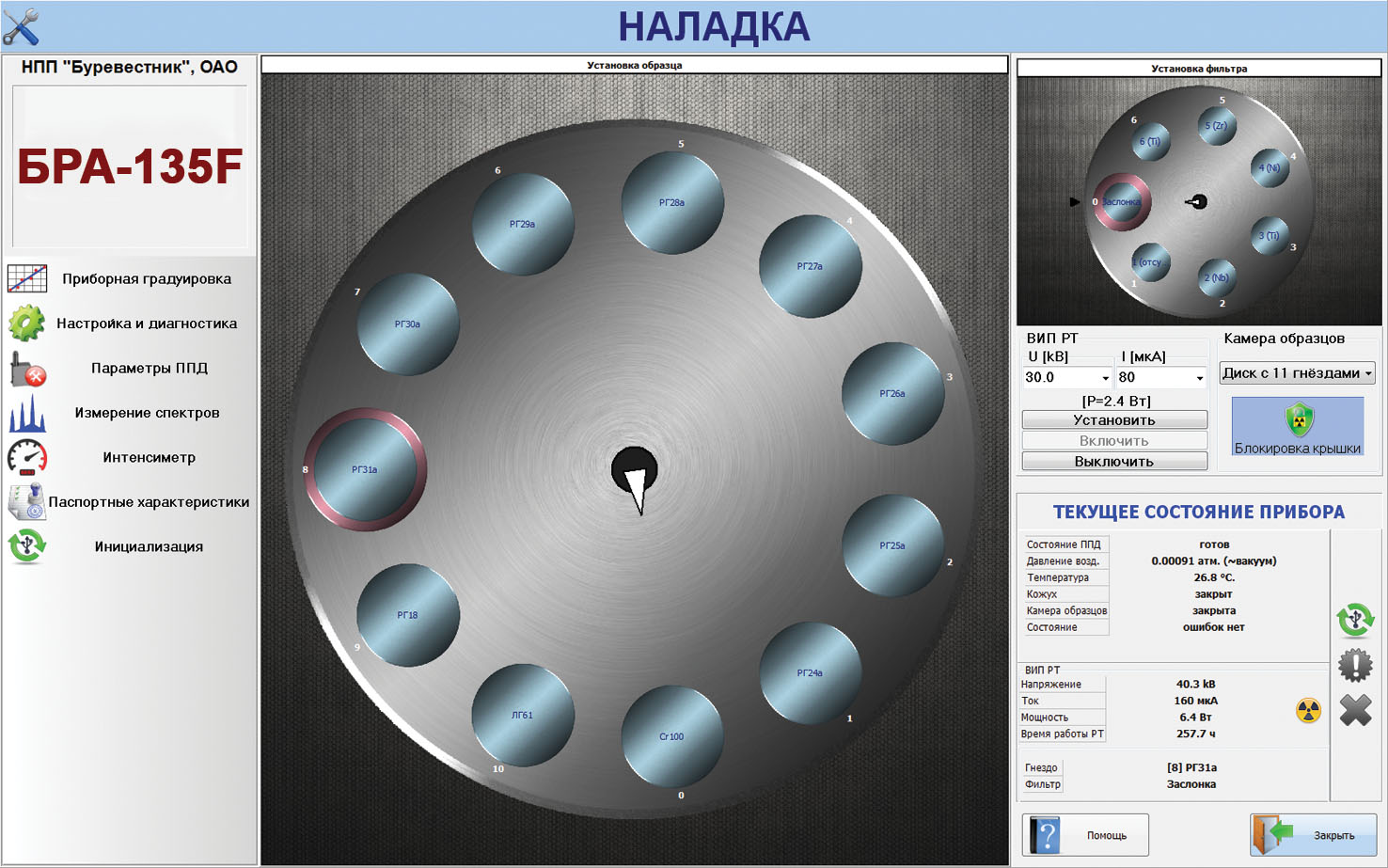

Automatic sample feed disk for 11 and 15 samples;

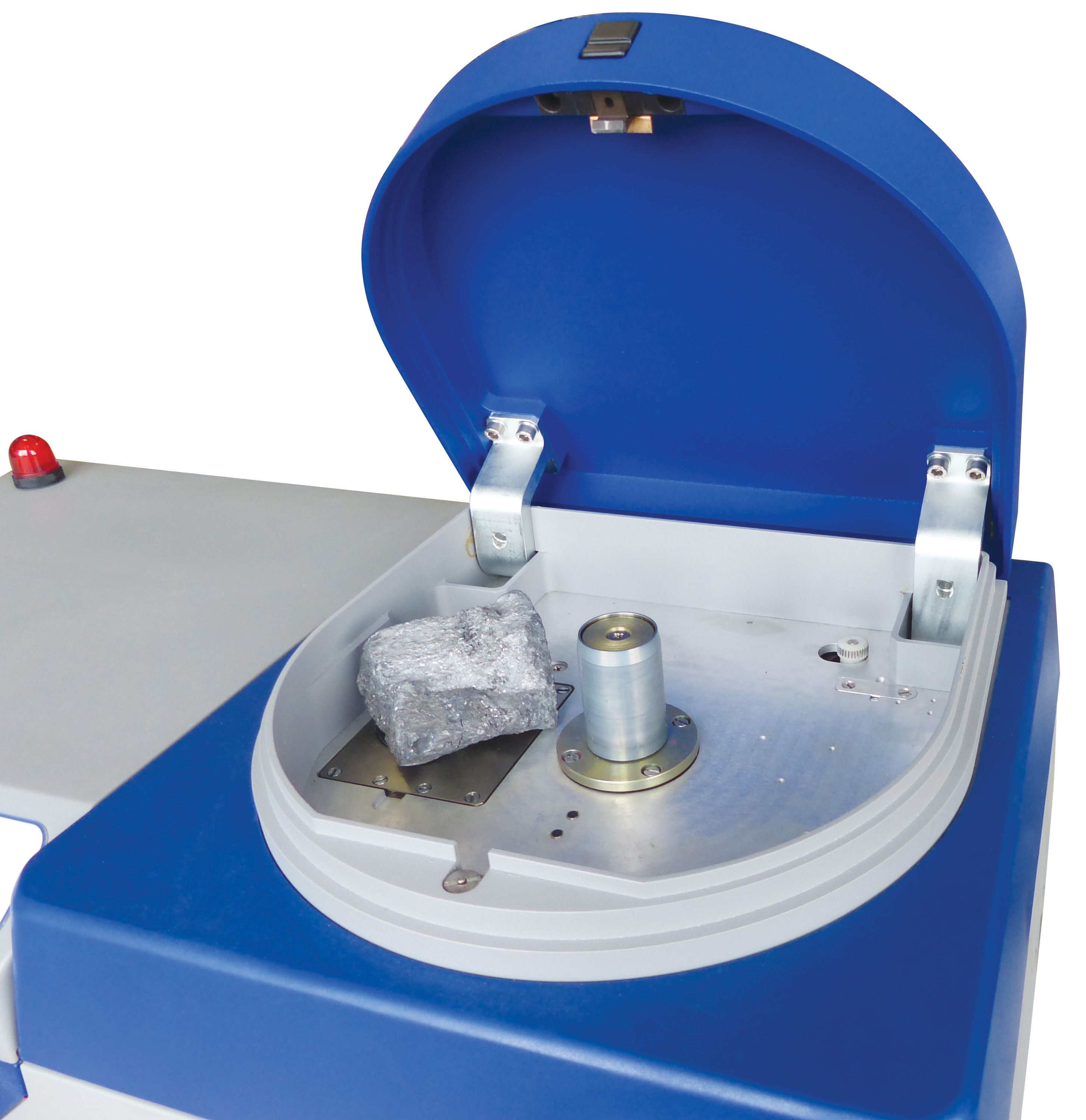

It is possible to examine samples of non-standard sizes - up to 200x60 mm;
Built-in industrial computer;
Power consumption - up to 500 VA;
Air-cooled X-ray tube with a maximum voltage of 50 kV (no coolant priming required);
The spectrometer is exempt from radiation monitoring;
It does not require pressing of bulk samples and sealing of liquid samples, there are no strict requirements to the quality of the sample surface.

Specifications

Determining elements	from ⁹F to ⁹²U
Positions of sample changer	15
Limit of determination without preconcentration, % - light elements from Na to Mg; - middle group elements from Al to Cl; - heavy elements from K to U.	10^-² 210^-³ 510^-4
Limit of detection at preconcentration of sample, %	1.5*10^-5
Limit of determination of middle group elements in liquids, %	n*10^-5
Limit of relative measurement error of count rate, %	±0,2
Average time of analysis per one sample, sec	100
Energy resolution of detector on MnK_aline at pulses count rate up to 10⁴ sec^-1, less than, eV	145
Maximum X-ray tube voltage, kV	50
Maximum X-ray tube power, W	10
X-ray tube cooling	air
Primary X-ray filters	Cd,Sr,Zr,Al,Ti
Maximum size of non-standard sample, mm	Ø200х60
Ethernet connection	Yes
Operating temperature, °C	10 до 35
Overall dimensions of the device (DxWxH), mm	700х360х400
Weight of the device, kg	65
Nutrition	220 В, 50 Hz
Power consumption	500 V×А

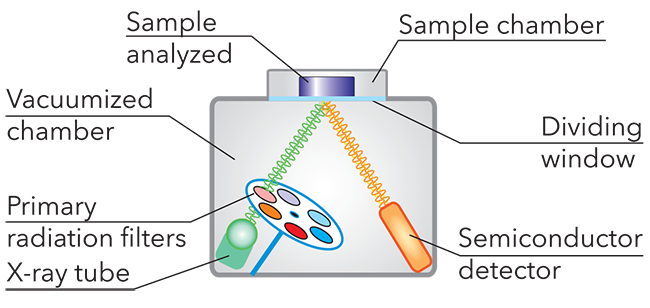

Process diagram

Options

Laboratory hydraulic press PLG-20 with mold 30 mm/ 34 mm/ 40 mm

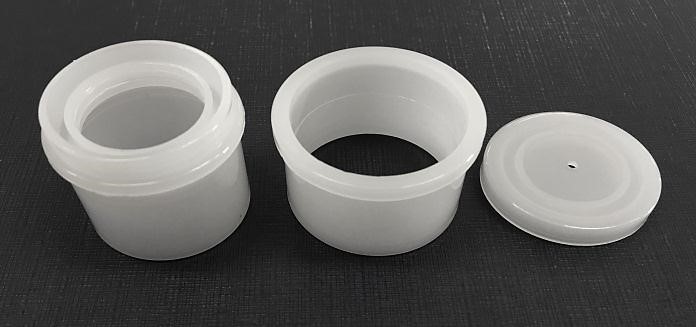

Measuring cell SC-2135

Methodology for measuring the mass fraction of SiO2, Al2O3, Fe2O3, CaO, MgO, SO3, Na2O, K2O, Cl, TiO2, P2O5, Cr2O3, MnO, ZnO, SrO in samples of cements, cement raw mixes and clinkers.

Set of GEOs for the methodology of measurement of trace metal impurities in petroleum products

Test method for measuring the mass fraction of aluminum, barium, calcium, copper, iron, manganese, vanadium, nickel, lead, zinc and phosphorus in samples of oil and liquid petroleum products by X-ray fluorescence method (for BRA-135F)

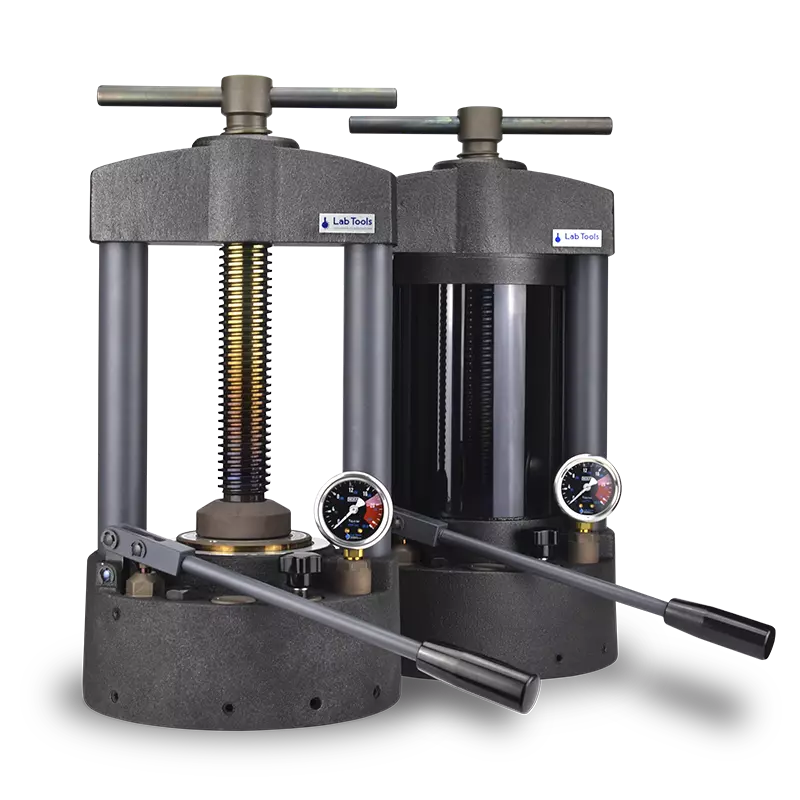

Laboratory hydraulic press PLG-20 with mold 30 mm/ 34 mm/ 40 mm

Methodology for measuring the mass fraction of SiO2, Al2O3, Fe2O3, CaO, MgO, SO3, Na2O, K2O, Cl, TiO2, P2O5, Cr2O3, MnO, ZnO, SrO in samples of cements, cement raw mixes and clinkers.

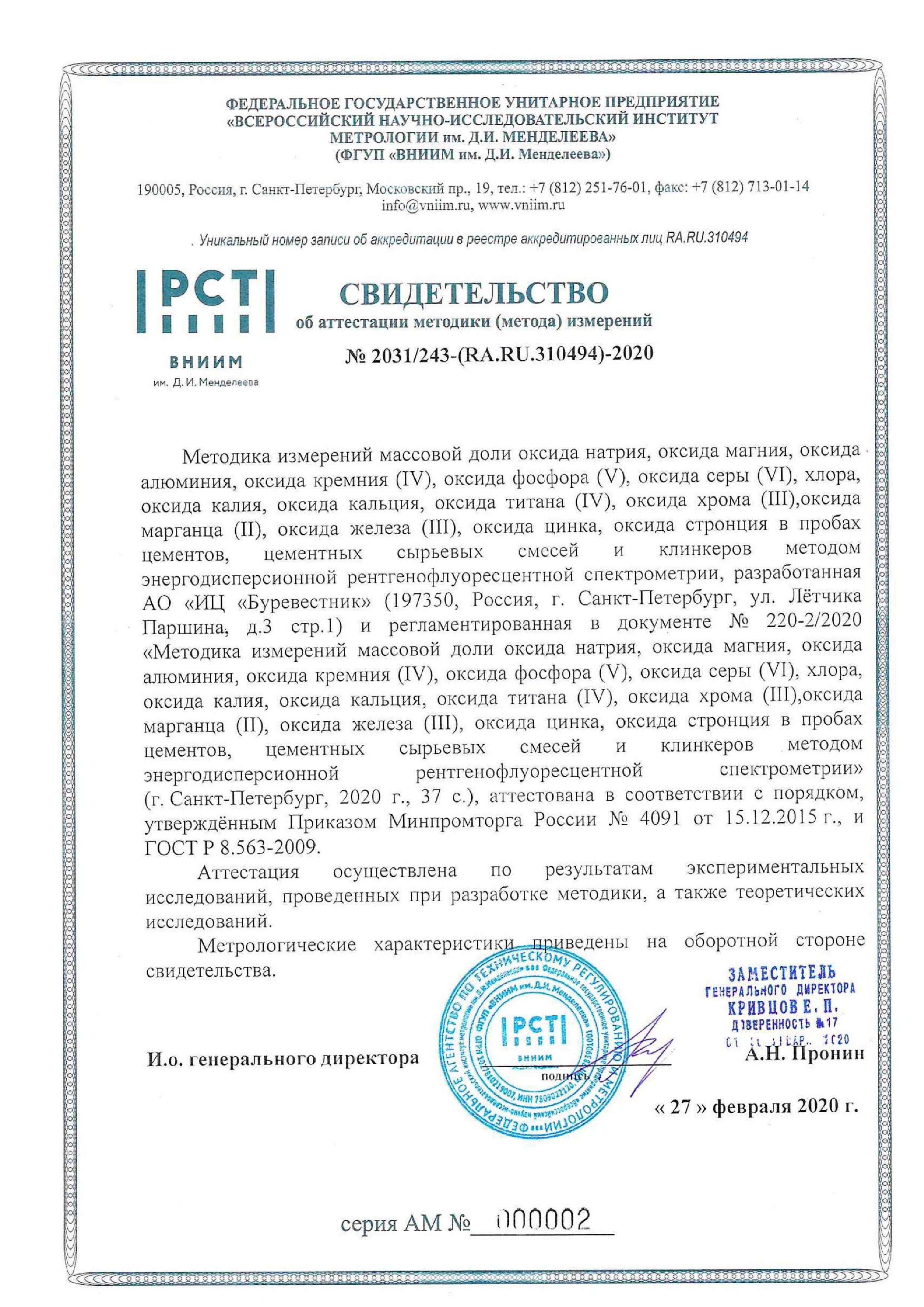

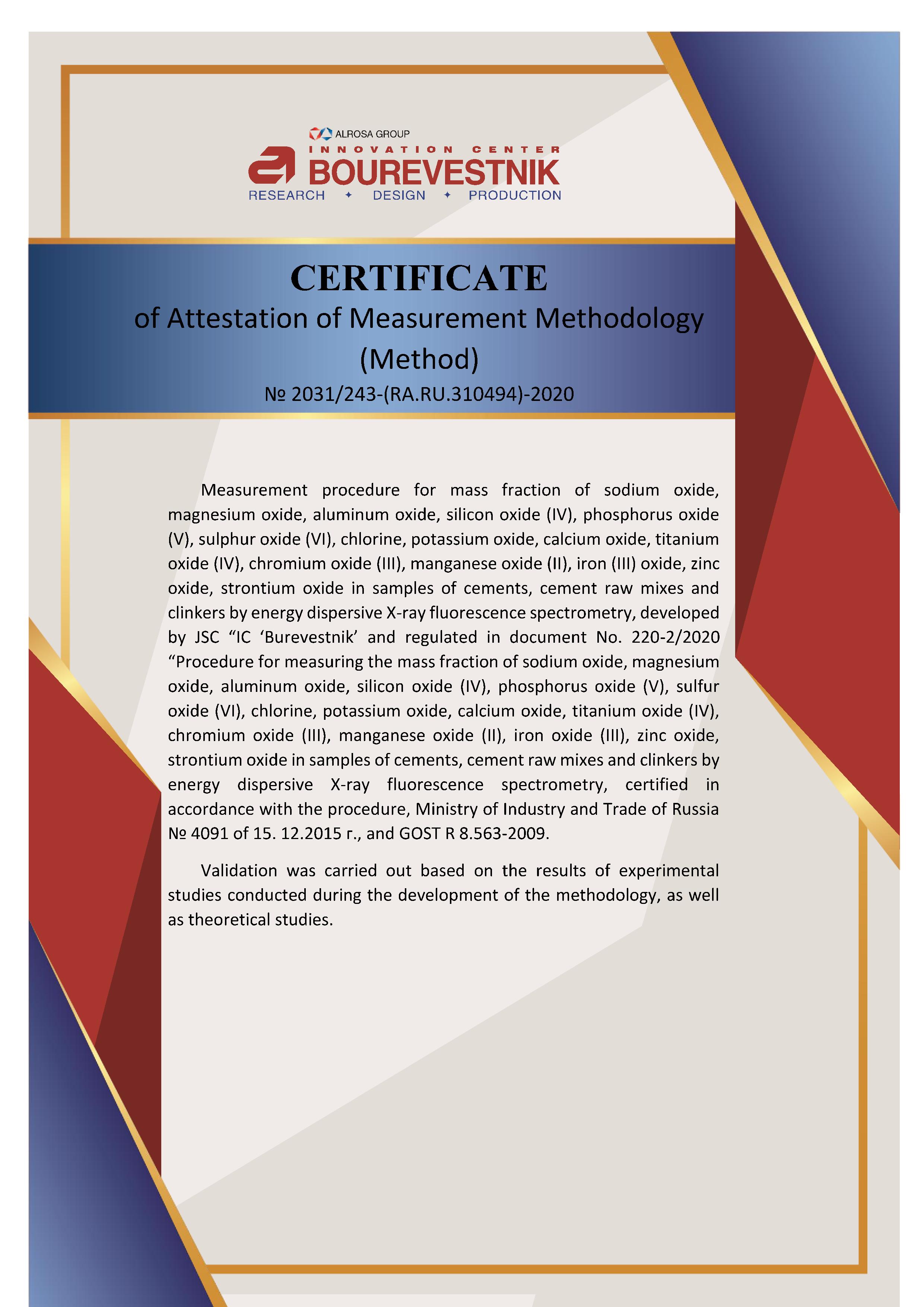

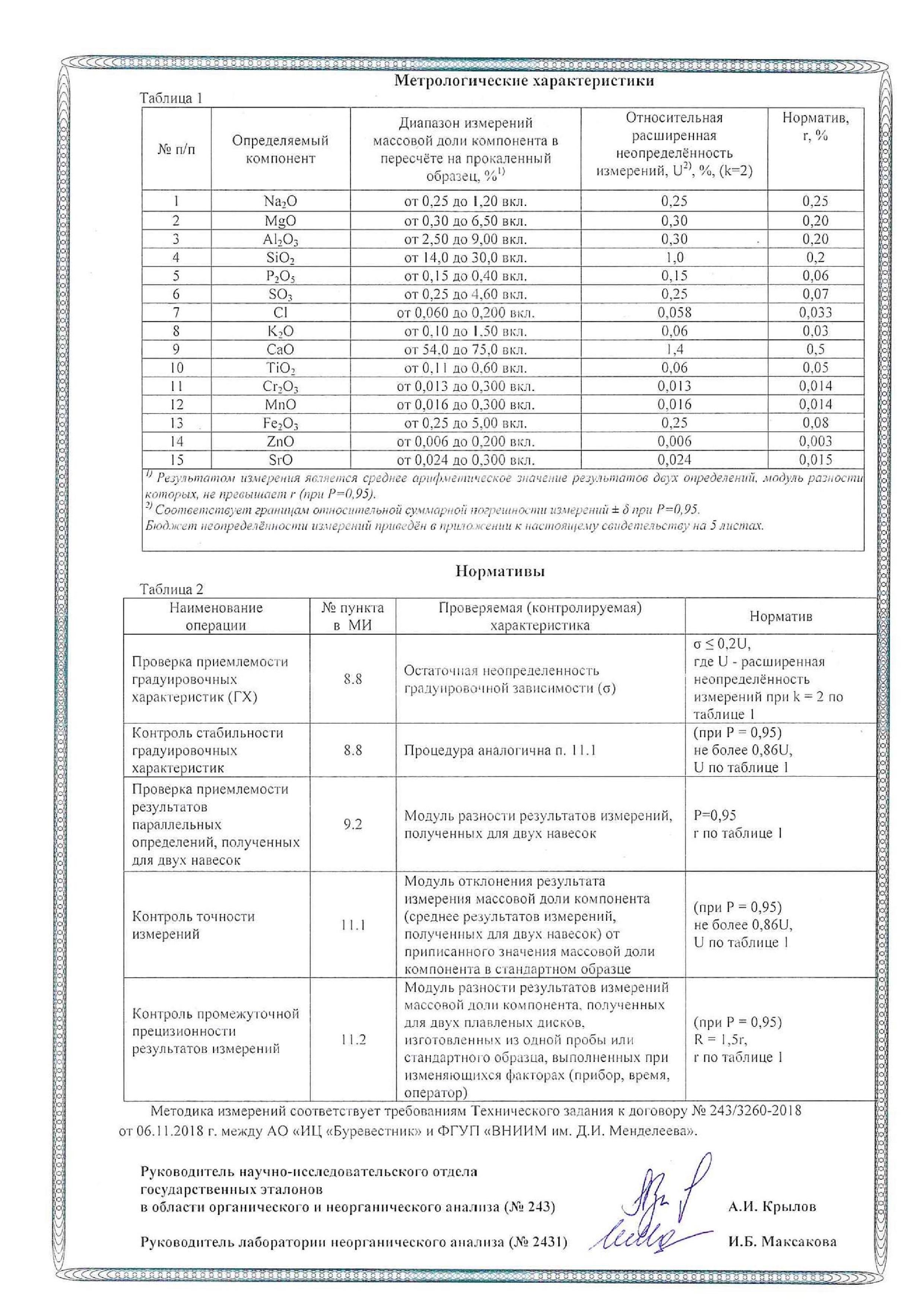

Methodology for measuring the mass fraction of SiO2, Al2O3, Fe2O3, CaO, MgO, SO3, Na2O, K2O, Cl, TiO2, P2O5, Cr2O3, MnO, ZnO, SrO in samples of cements, cement raw mixes and clinkers. (№2031/243-(RA.RU.310494)-2020)

X-ray fluorescence energy dispersive spectrometer BRA-135F complete with the developed certified technique for measuring the mass fraction of SiO2, Al2O3, Fe2O3, CaO, MgO, SO3, Na2O, K2O, Cl, TiO2, P2O5, Cr2O3, MnO, ZnO, SrO (FR.1 .31.2020.36881) allows to solve the problem of controlling the chemical composition of cement production products (raw mix, clinker and cement) with satisfactory accuracy and in acceptable time.

The technique uses the method of fusion of samples with borate flux at 1125 °C in platinum crucibles for 6 - 9 minutes to create a homogeneous fused disk. The produced disk is placed in a spectrometer and analyzed under vacuum for 100 seconds (600 seconds for Na2O). The universal calibration characteristic is constructed on the basis of synthetic samples, the method of preparation of which is detailed in the text, as well as from process samples of the plant (raw mix, clinker, cement). This approach provides the necessary flexibility in work and at the same time accuracy of measurements. As reference samples it is possible to use domestic GEO, as well as standard samples of foreign manufacturers.

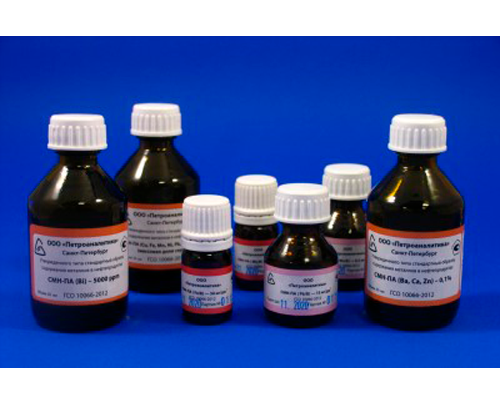

Set of GEOs for the methodology of measurement of trace metal impurities in petroleum products

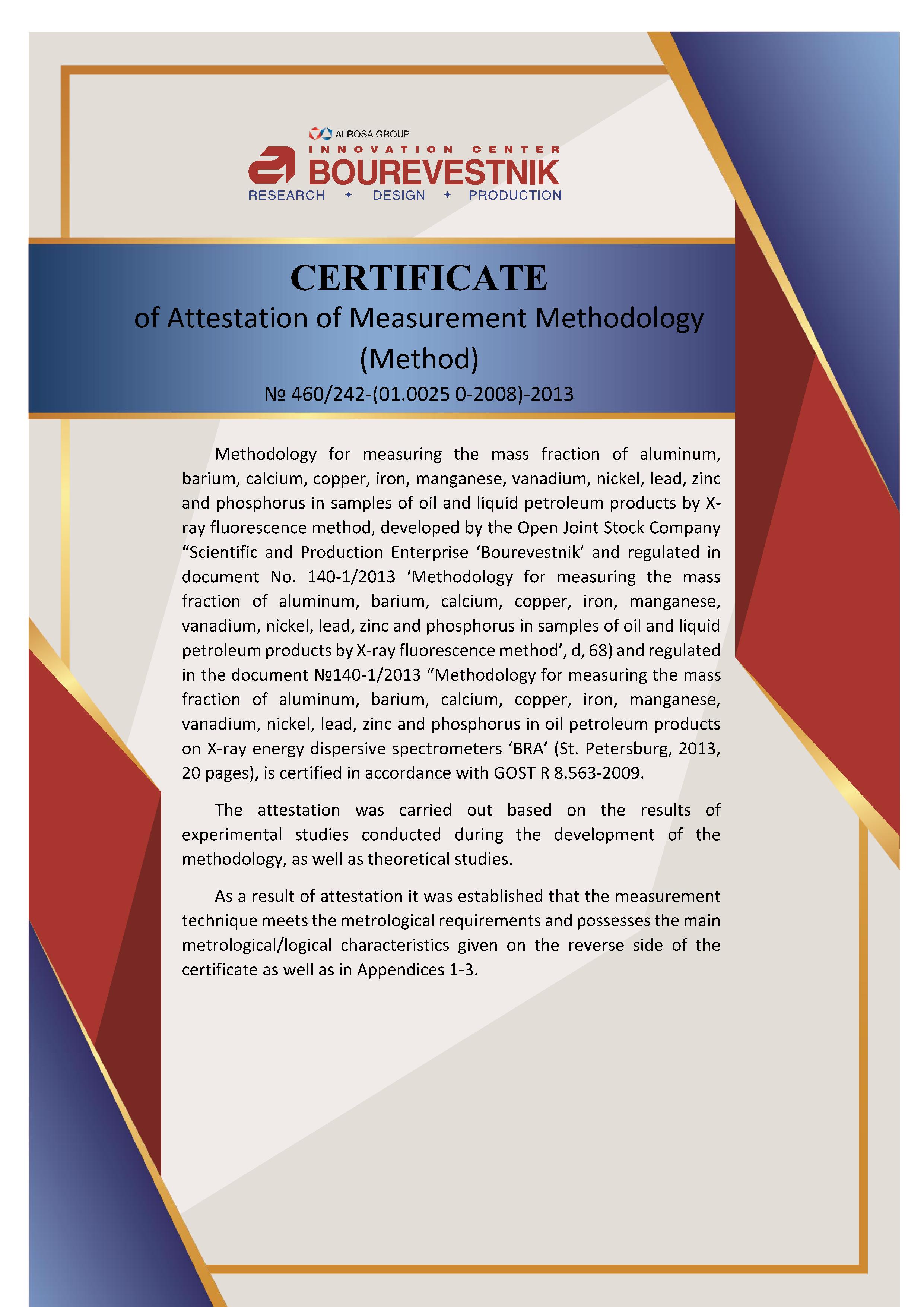

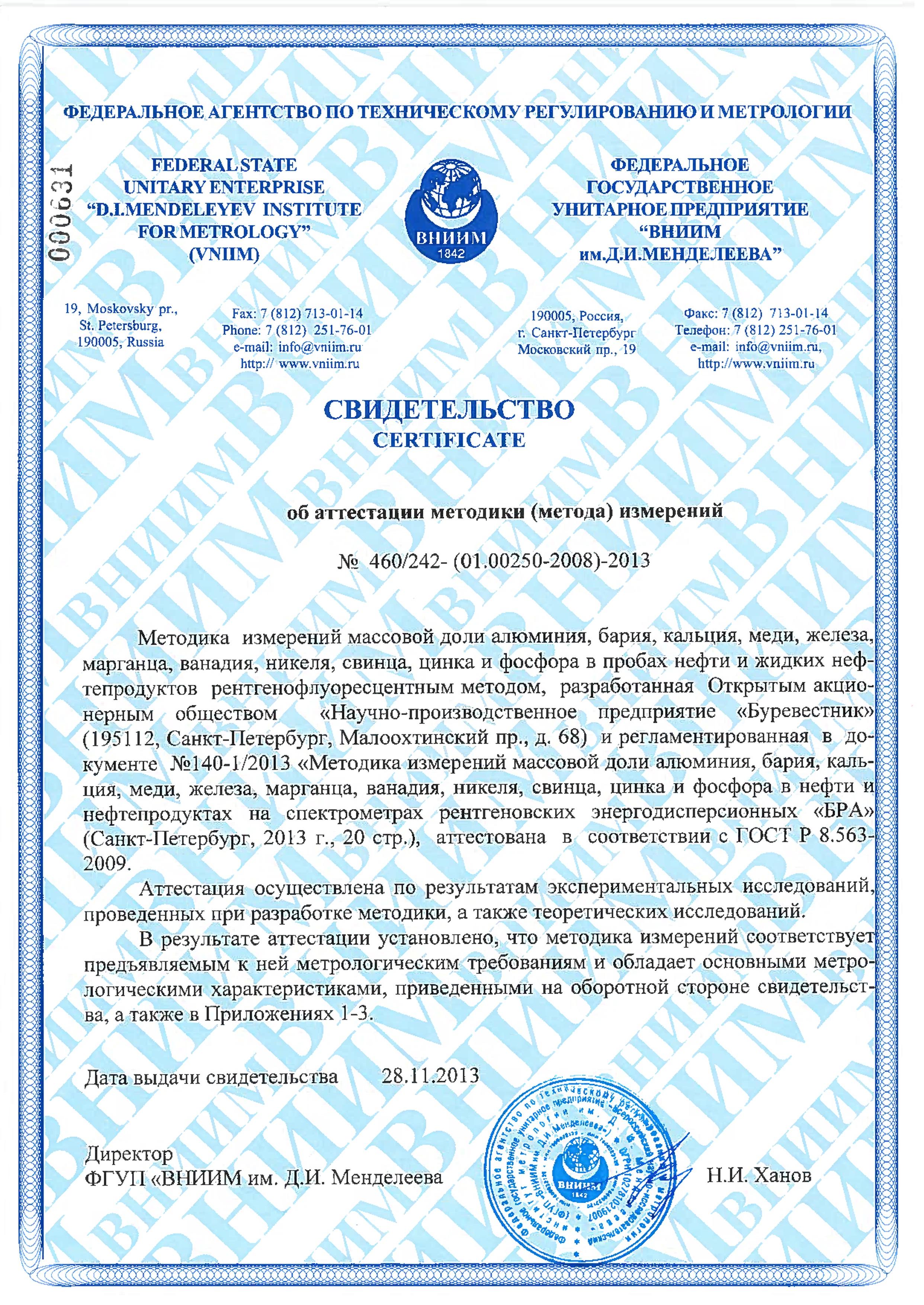

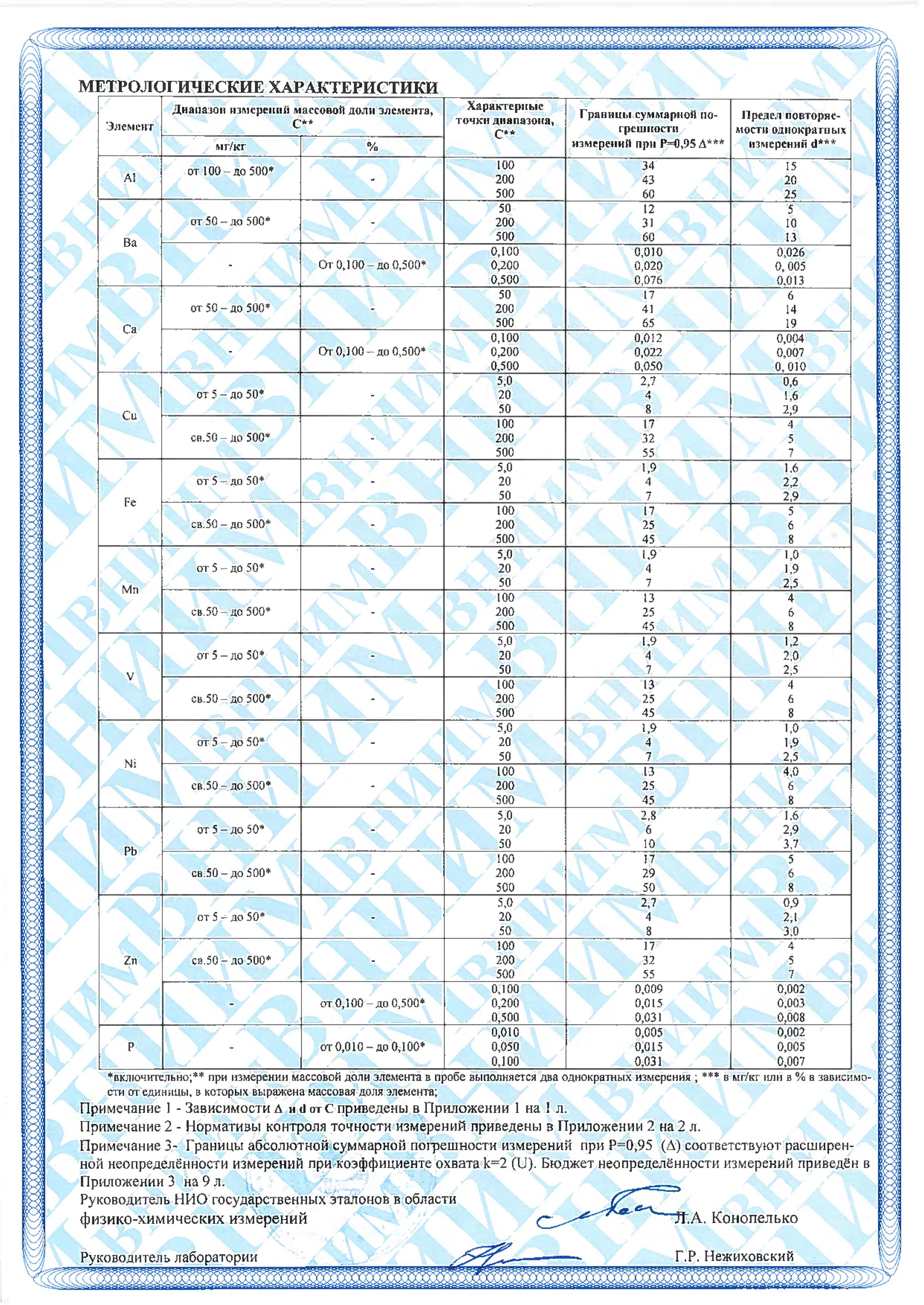

Test method for mass fraction of Al, Ba, Ca, Cu, Fe, Mn, V, Ni, Pb, Zn, P in oil and liquid petroleum products samples (№460/242-(01.00250-2008)-2013)

The developed and certified measurement procedure for X-ray fluorescence energy dispersive spectrometer BRA-135F allows to perform quantitative analysis of oil products in order to determine trace metal impurities.

Spectrometer BRA-135F with the measurement technique can be used for analysis of used motor oils of aircrafts, cars, motor vehicles, in order to determine the degree of wear of engines and determine the need for maintenance.
