X-ray transmission sorter RGS-OD-5 is a diamond recovery machine designed for final concentrate treatment of dry material with size range -50+10 mm

The principle of the sorter's operation is based on the property of materials to absorb X-rays. Diamond, consisting of the light element carbon with atomic number 6, absorbs X-rays less than the accompanying minerals containing heavier elements: silicon, calcium, magnesium, oxygen, iron and others.

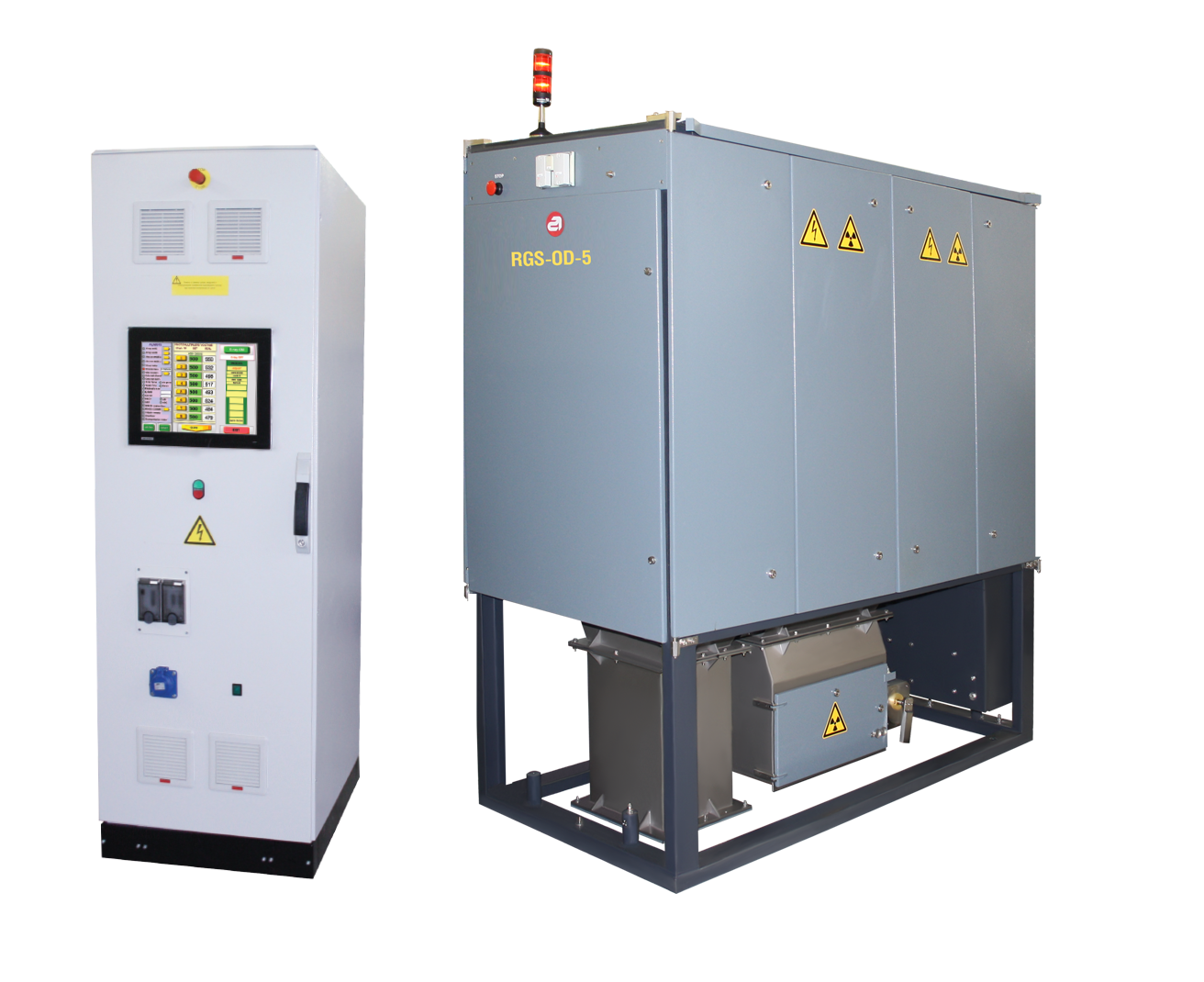

The sorter consists of a sorting machine and an automatic control rack.

Specifications

Main specification
Size fraction, mm	-50 +30	-30 +20	-20 +15	-15 +10
Throughput, kg/h	2500	2000	500	300
Yield per 10 ejections, grains	15	16	18	20
Recovery rate, %	99	99	96	96
Type of material	dry/wet

Material feeding and detection system
Material feed	vibrating feeder
Flow	2
X-ray tube	1
Detector	1

Sorter’s supply
Power consumption, kVA (single phase, 220V/50Hz)	6
Cooling water consumption, not less than, l/min	30
Cooling water consumption, not less than, l/min	6
Consumption of compressed air per 1 ejection, l	5
Compressed air consumption, not less then, l/min	50

Dimensions and mass
	Dimensions, mm	Mass, kg
Sorting machine (SM)	2000 х 930 х 2135	1100
Automatic control rack (ACR)	881 х 603 х 1952	200

The operating parameters of the equipment are preliminary

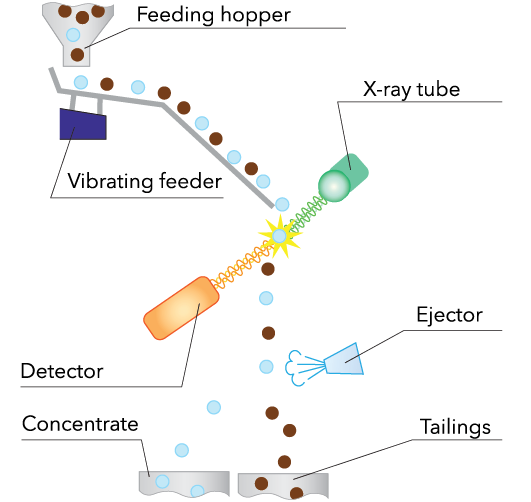

Process diagram

Options

Tracers for the Diamond Mining

Containerized Unit

Tracers for the Diamond Mining

Bourevestnik offers a broad line of boron carbide simulators (tracers) for testing mechanical recovery efficiency, adjusting transport delay time and cutoff duration, and tuning the sensitivity of XRT sorter.

Containerized Unit

Upon request Bourevestnik supplies the sorter and integrated auxiliary equipment as a part of the container unit.

Container plant is a mobile building in metal construction, container type, without running gear for operation outdoors at any time of the year and day and for permanent presence of personnel.

Unit composition:
• all-welded metal housing;
• power supply system;
• climate control system;
• fire alarm system and automatic fire extinguishing system;
• lighting system;
• water cooling system;
• air supply system;
• ore feed bin
