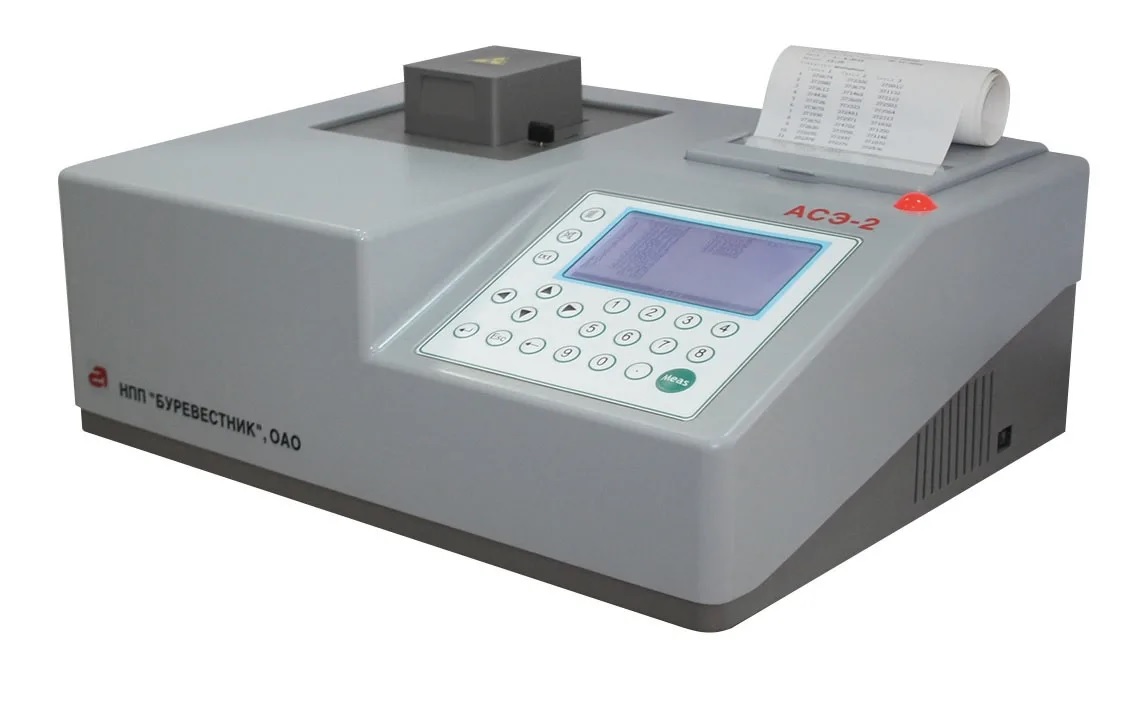

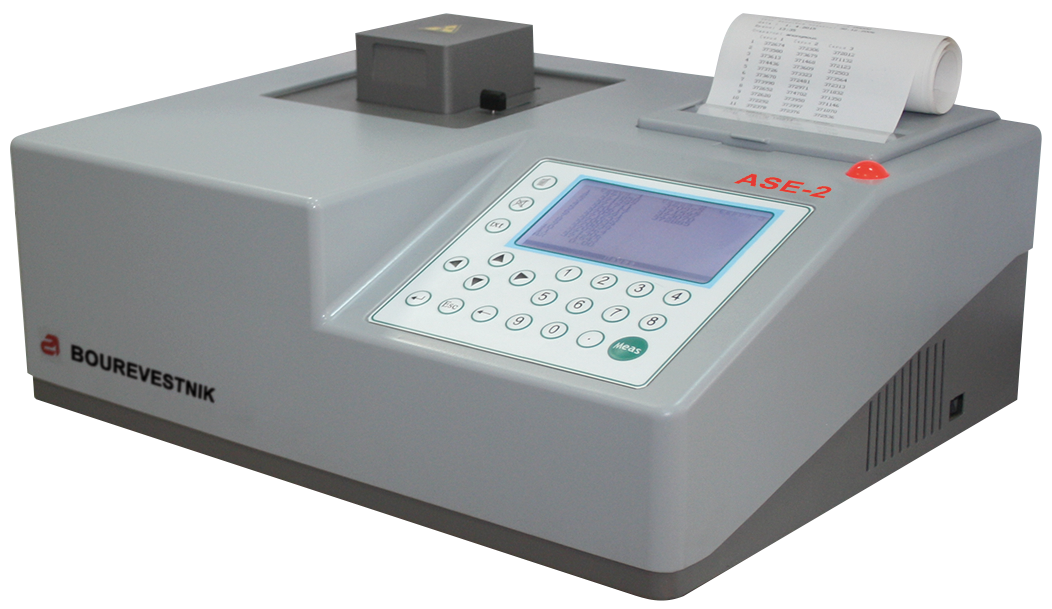

X-ray fluorescent energy dispersive sulfur analyzer ASE-2

The ASE-2 is suitable for analyzing of gasoline (unleaded), diesel, crude oil, kerosene, petroleum residue, lubricating oil, hydraulic oil, jet fuel and other petroleum distillate in accordance with АSТМ D 4294, АSТМ D 6445, EN ISO 20847.

Measurement time from 2 to 6 minutes;
Connection to PC, data transfer to LIMS;
Built-in thermal printer;
The samples are analyzed in an air environment (no gas purging or vacuuming is required);
Cooling of the X-ray tube is air-cooled;
Does not require commissioning and is delivered verified and ready for use;
Exempt from radiation control (no license is required to work with ionizing radiation sources).
Conforms to ASTM D 4294, ASTM D 6445, EN ISO 20847.

Specifications

Measurement range of mass fraction of sulfur, mg/kg	0,0005 to 5,00
Statistical detection limit for 600 seconds, mg/kg	0,0003
Tolerance limit of the basic relative error of the analyzer in the mode of count rate measurement on the control sample Mo (№196), %	0,5
Mains power supply	220±22 V, 50±1 Hz
Power consumption max	100 V×А
Overall dimensions (DxWxH), mm	470х350х215
Weight of the device, kg	15
Sample measurement time	2 to 6 min
Continuous operation time, at least, hours	17
Average MTBF, hours	> 15 000
Total average analyzer service life, years	> 8

Process diagram

Options

Measuring cell SC-2135

Set of CRM of sulfur in mineral oil for ASE-2/ASE-3

Thermal paper for printer ASW-2/ASW-3

X-ray transparent film (MYLar) 3 mkm

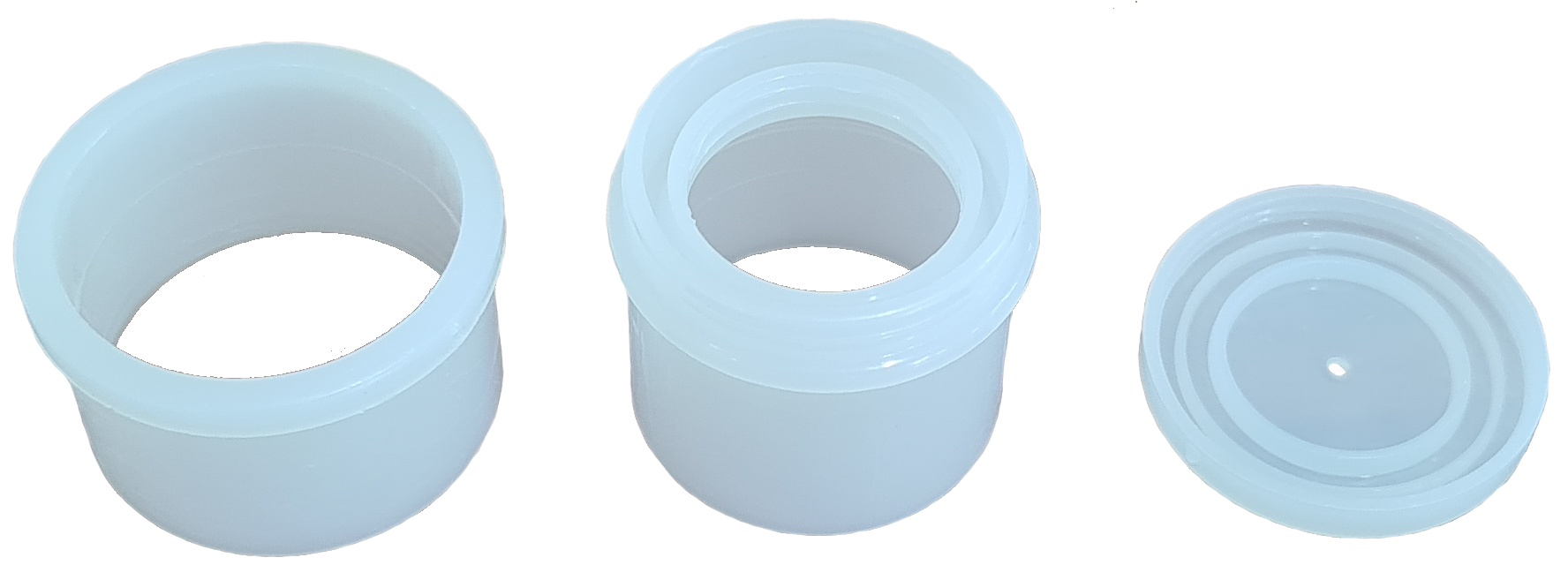

Measuring cell SC-2135

Reusable ventilated measuring cell SC-2135.

Designed for X-ray fluorescence analysis of liquid and powder samples.

Material: polyethylene

Outer diameter: 34±1 mm

Inner diameter: 28±1 mm

Height: 30±1 mm

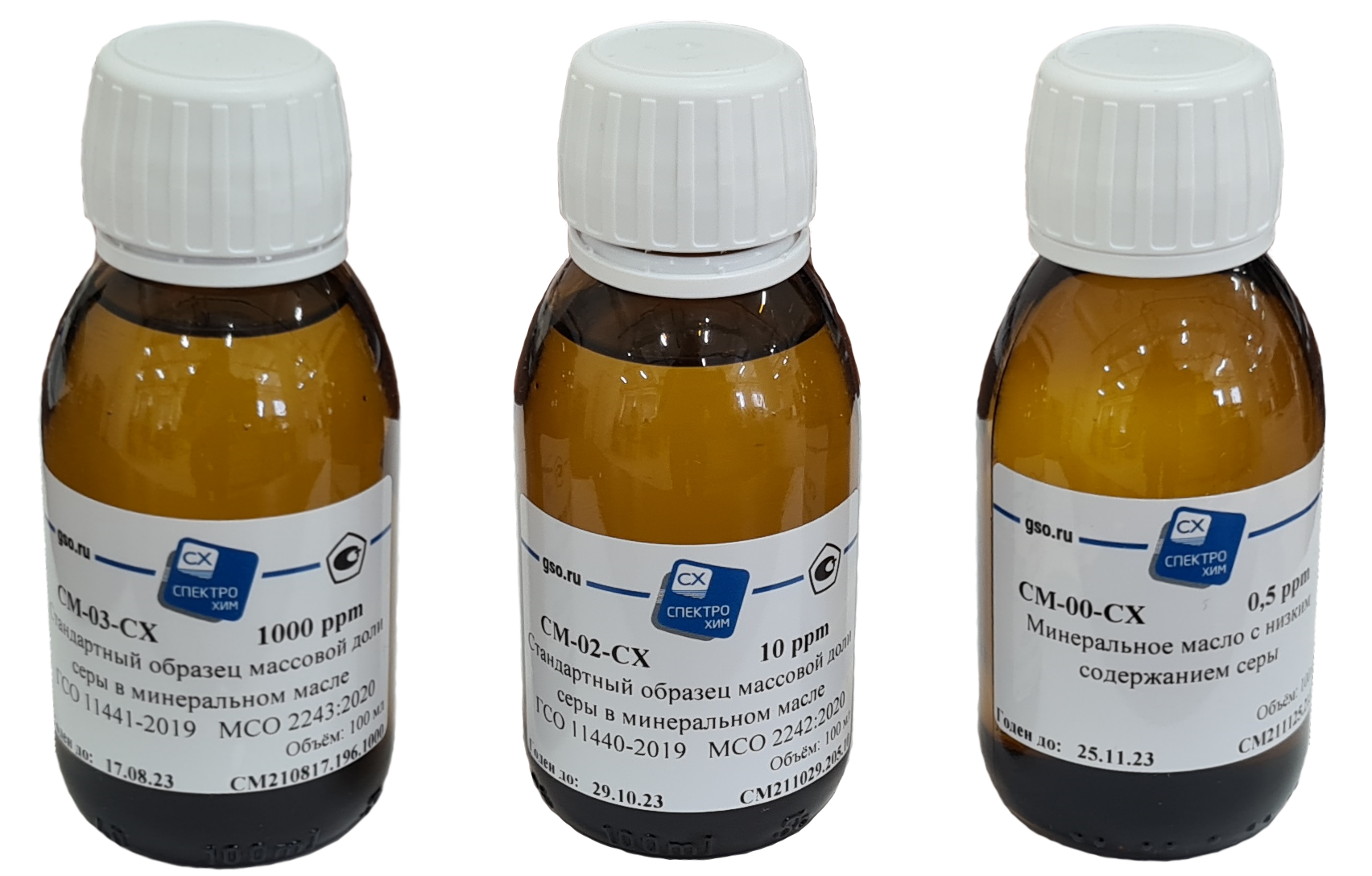

Set of CRM of sulfur in mineral oil for ASE-2/ASE-3

State standard samples (SSO) of mass fraction of sulfur in mineral oil (18 pcs. 100ml each):
0,000%; 0,0005 %; 0,0010 %; 0,0025%; 0,005%; 0,010%; 0,030%; 0,060; 0,1%; 0,2%; 0,5%; 1%; 1,5%; 2%; 2,5%; 3%; 4%; 5%.

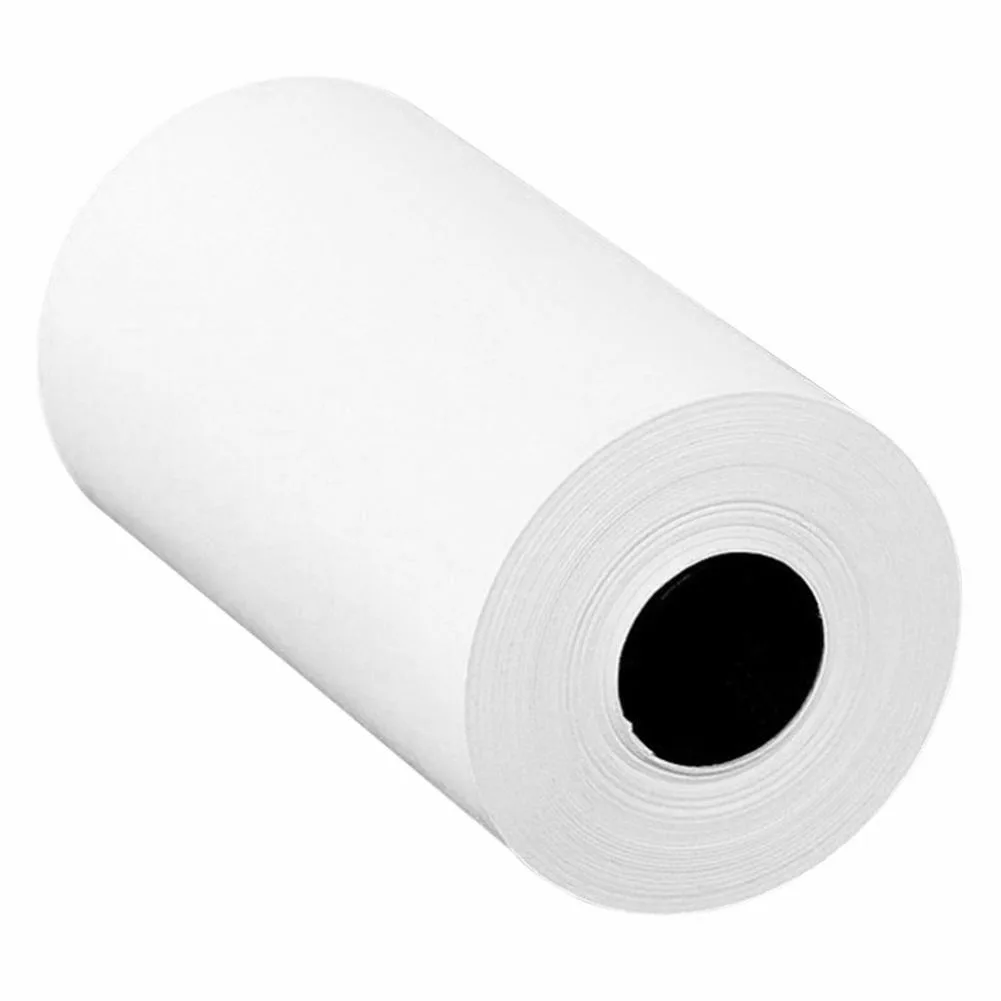

Thermal paper for printer ASW-2/ASW-3

Thermal paper for printing analysis results in the form of measurement protocol;
For built-in and external printers to the devices ASE-2, ASE-3.

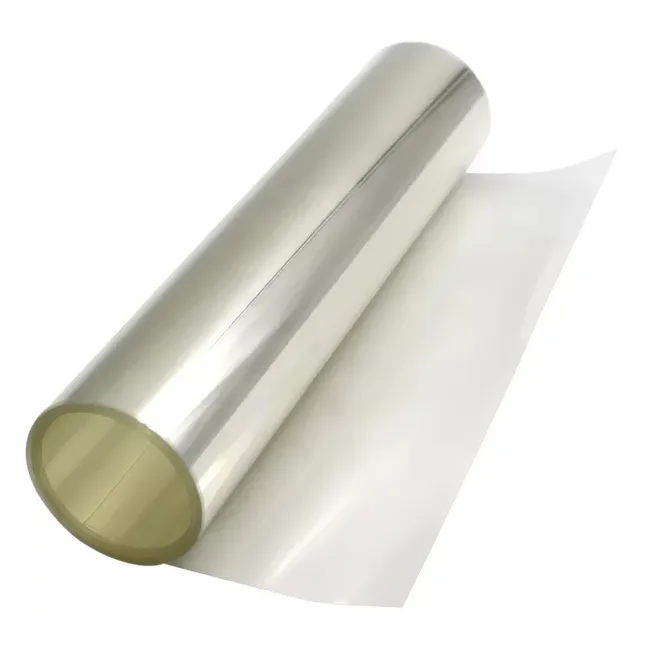

X-ray transparent film (MYLar) 3 mkm

Transparent PET film with a thickness of 3 microns for SC-2135 measuring cells. Designed for liquid and bulk samples.
